2.4 GHz to 3.0–3.5 GHz RF Frequency Up/Down Converter
Overview

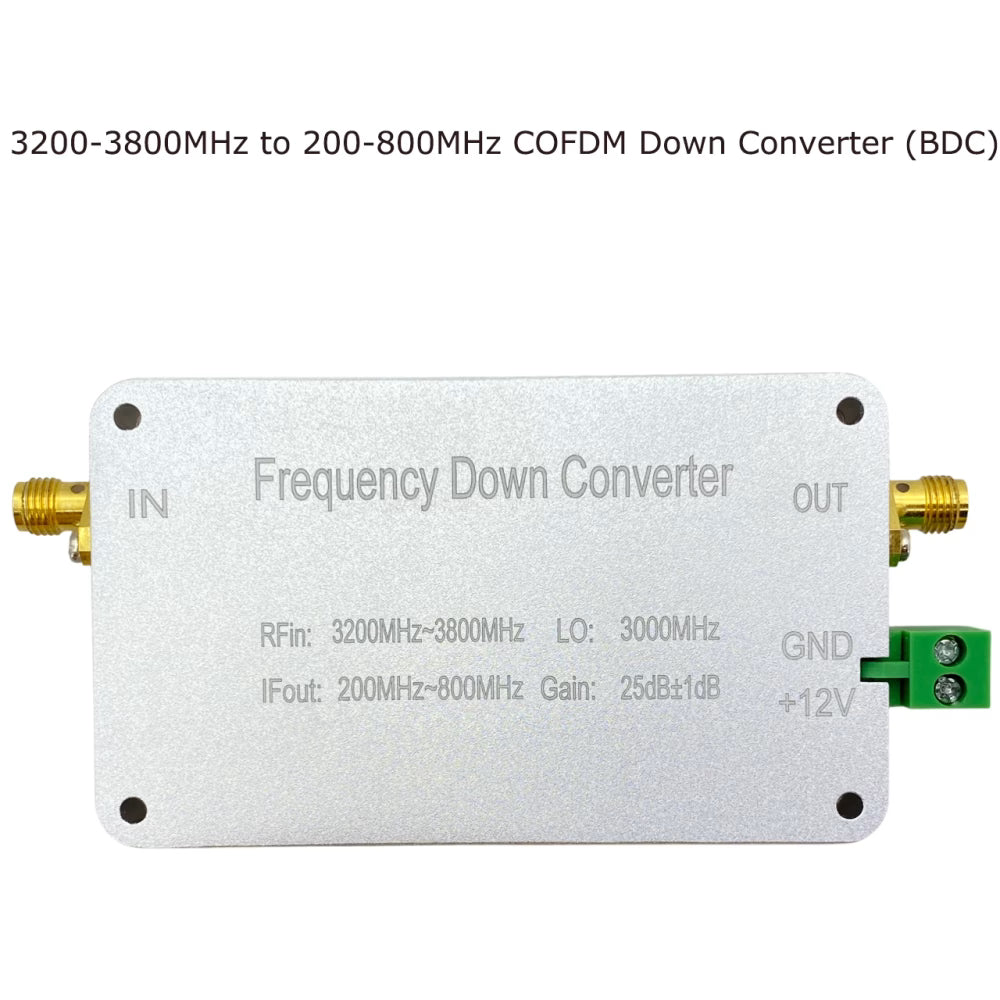

The 2.4 GHz to 3.0–3.5 GHz RF Frequency Up/Down Converter is a compact RF conversion module designed for wireless video transmission, COFDM communication systems, UAV links, and RF front-end integration.
It supports bidirectional frequency conversion between the 2.4 GHz band and the 3.0–3.5 GHz band. The module can be configured to meet specific system requirements, with customizable input, output, and local oscillator (LO) frequencies.
Key Features
• Bidirectional RF frequency conversion: Supports up-conversion from 2.4 GHz to 3.0–3.5 GHz and down-conversion in the reverse direction.
• Custom frequency configuration: Input, output, and LO frequencies can be tailored to project requirements.
• Low noise figure: Typical noise figure below 2.5 dB, according to the published specifications.
• Adjustable conversion gain: Optional conversion gain of 0–15 dB.
• Compact metal housing: Designed for integration into embedded and professional RF systems.
• Wide supply voltage range: Operates from 5 to 12 V DC.
• Flexible system integration: Suitable for wireless video, COFDM links, and specialized RF communication equipment.
Technical Specifications
Conversion Type: RF Up/Down Converter
Input Frequency: 2.4 GHz band
Output Frequency: 3.0–3.5 GHz band
Conversion Direction: 2.4 GHz ↔ 3.0–3.5 GHz
Local Oscillator (LO): Customizable
Conversion Gain: 0–15 dB (optional)
Noise Figure: <2.5 dB (typical)
RF Connectors: SMA female
Supply Voltage: 5–12 V DC
Operating Temperature: -20°C to +70°C
Dimensions: Compact module design; customizable configuration available
Applications
• COFDM wireless video transmitters and receivers
• UAV and drone video transmission systems
• Long-range wireless communication links
• RF front-end development and integration
• Wireless communication research and development
• Professional video transmission and monitoring equipment
• Industrial wireless communication systems
FAQ
Q1: What does this RF converter do?
A: It converts RF signals between the 2.4 GHz band and the 3.0–3.5 GHz band, depending on the selected conversion direction and configuration.
Q2: Can the input and output frequencies be customized?
A: Yes. The input, output, and local oscillator frequencies can be customized according to your project requirements.
Q3: Is it suitable for COFDM wireless video systems?
A: Yes. It is designed for integration into COFDM-based wireless video transmission and reception systems.
Q4: What power supply does it require?
A: The published specification lists a 5–12 V DC supply. Confirm the required voltage and connector pinout for your specific configuration before installation.
Q5: Can the conversion gain be adjusted?
A: An optional conversion gain range of 0–15 dB is listed. Confirm the required gain with the supplier when ordering.
Q6: What connector does it use?
A: The published specification lists SMA female RF connectors.
Ordering Information
For custom configurations, please provide your required input frequency, output frequency, LO frequency, desired conversion gain, and intended application before placing an order. Confirm the final electrical specifications and connector configuration with the supplier.
