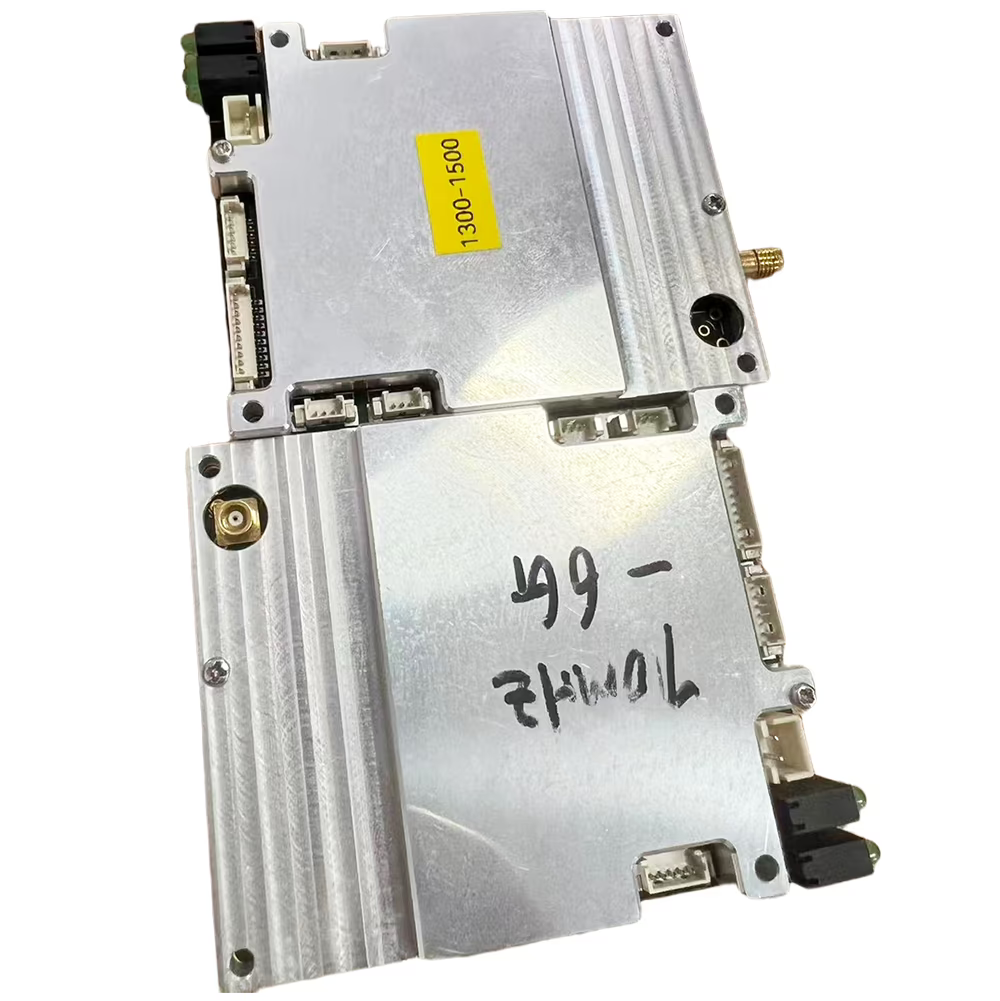

20MHz–6GHz DDS RF Signal Generator Board with 500MHz Sweep Bandwidth
Product Overview
The 20MHz–6GHz DDS RF Signal Generator Board is a programmable RF signal source designed for RF research, electronic testing, signal generation, and OEM equipment integration.
Covering an overall RF output frequency range of 20 MHz to 6 GHz, this compact board supports configurable frequency sweeping, adjustable output power, and ASK, FSK, and PSK modulation. Its RS485 control interface enables integration into automated test systems and customized electronic equipment.
With a compact 80 × 65 mm PCB, this RF signal generator board is suitable for laboratory development, embedded RF systems, and application-specific test equipment.
Key Features
• Wide RF Frequency Range: Supports RF output from 20 MHz to 6 GHz.
• 500 MHz Maximum Sweep Bandwidth: Configure a single frequency sweep with a bandwidth of up to 500 MHz.
• Programmable Frequency Sweeping: Supports configurable sweep parameters and multiple frequency sub-bands.
• Fast Timing Capability: Minimum specified dwell time of 1 ns.
• Adjustable RF Output Power: Nominal output of 0 dBm ± 3 dB, with a 20 dB adjustment range in 1 dB steps.
• Multiple Modulation Modes: Supports ASK, FSK, and PSK modulation.
• RS485 Control Interface: Supports parameter configuration using the supplied host-computer software and communication protocol.
• Compact PCB Design: Measures 80 × 65 mm for convenient OEM integration.
• Customization Support: Custom waveform and integration requirements can be evaluated for suitable projects.
Technical Specifications
Product Type: DDS-to-RF Signal Generator Board
RF Output Frequency Range: 20 MHz–6 GHz
Baseband Signal Frequency Range: 20–1100 MHz
Maximum Single-Sweep Bandwidth: 500 MHz
Designed Frequency Ranges: 10–1000 MHz, 1000–2000 MHz, 2000–3000 MHz, 3000–4000 MHz, 4000–5000 MHz, 5000–6000 MHz
Multi-Band Sweep: Up to 4 configured frequency sub-bands
Minimum Dwell Time: 1 ns
Nominal RF Output Power: 0 dBm ± 3 dB
Output Power Adjustment Range: 20 dB
Output Power Adjustment Step: 1 dB
Supported Modulation: ASK, FSK, PSK
Control Interface: RS485, 3-pin, 1.25 mm pitch
Host-Computer Software: Supplied with the order
Communication Protocol: Supplied with the order
Internal Interface: RS232, not provided as a customer-facing control interface
Power Input: 28 V DC, 1 A
Power Connector: XH2.54, 2-pin
RF Connector: MCX
PCB Dimensions: 80 × 65 mm
Applications
1. RF Research and Development
Generate programmable RF signals for testing RF circuits, receiver designs, and electronic components.
2. Frequency Sweep Testing
Evaluate frequency response and circuit behavior using configurable RF sweep signals.
3. Digital Modulation Experiments
Support ASK, FSK, and PSK modulation experiments for communication circuit development and receiver testing.
4. Automated RF Test Equipment
Integrate the board into custom instruments and automated test systems through its RS485 control interface.
5. OEM and Embedded Systems
Incorporate the compact module into application-specific RF instruments and electronic equipment.
6. RF System Prototyping
Use the programmable signal source for engineering development, prototype evaluation, and laboratory testing.
FAQ
Q1: What is the RF output frequency range?
A: The specified overall RF output frequency range is 20 MHz to 6 GHz. Appropriate filtering should be selected according to the target operating frequency and required RF performance.
Q2: What is the maximum frequency sweep bandwidth?
A: The maximum specified single-sweep bandwidth is 500 MHz within a selected frequency range.
Q3: Which modulation types are supported?
A: The board supports ASK, FSK, and PSK modulation. Custom waveform requirements can be evaluated separately.
Q4: How is the board controlled?
A: The customer-facing control interface is RS485. Host-computer software and the communication protocol are supplied with the order.
Q5: What is the RF output power?
A: The nominal RF output power is 0 dBm ± 3 dB, with a 20 dB adjustment range in 1 dB steps. This is a low-power RF signal source, not a high-power RF amplifier.
Q6: What power supply is required?
A: The specified power input is 28 V DC, 1 A. Please verify the power connector and supply requirements before integration.
Q7: Can the board sweep across multiple frequency sub-bands?
A: Yes. One signal can sweep back and forth across up to four configured frequency sub-bands. This does not mean four independent RF outputs are available simultaneously.
Q8: Is customization available?
A: Custom waveform and OEM integration requirements can be reviewed. Please provide your required frequency range, sweep pattern, modulation type, timing, and control requirements.
Q9: Is an external RF filter required?
A: Appropriate filtering is recommended according to the operating frequency range and required signal quality. Please confirm the filter configuration for your specific application.
Important Notes
• The overall RF output specification starts at 20 MHz, although the first designed frequency range is listed as 10–1000 MHz. Confirm the usable lower-frequency limit before ordering if operation below 20 MHz is required.
• Frequent switching between the six designed frequency ranges is not recommended because PLL reconfiguration requires a millisecond-level interval.
• The minimum 1 ns dwell time is a specified capability; confirm the applicable operating mode for timing-critical applications.
• The product is intended for low-power RF signal generation, testing, and development.
• Please confirm frequency-specific filtering, control compatibility, and integration requirements before placing an order.
