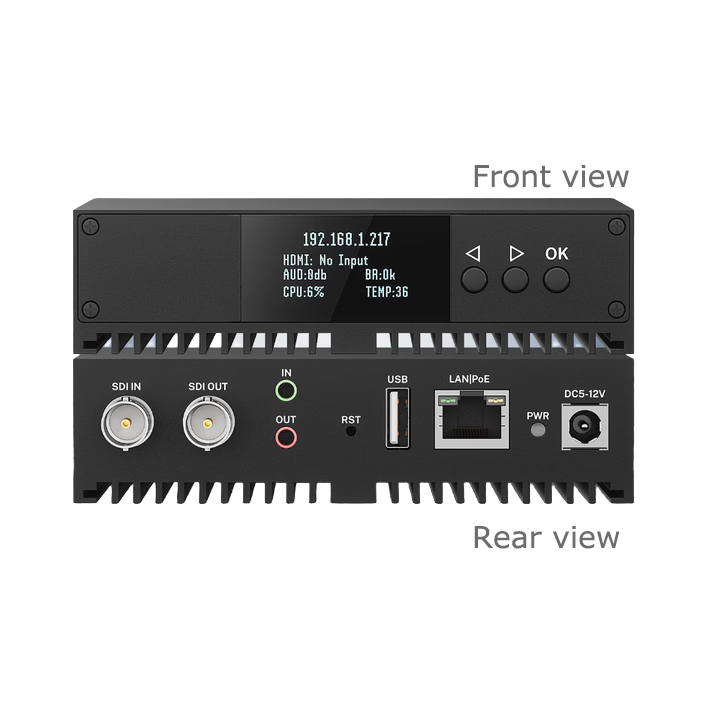

3G-SDI to IP Video Encoder & IP to 3G-SDI Decoder
Dual-Function Video Encoding and Decoding for Professional IP Video Systems
This 3G-SDI video encoder and IP decoder is designed for professional video streaming, IP video transmission, remote monitoring, and video distribution applications. It supports 3G-SDI input and output up to 1080p60, with H.264/H.265 video processing and a range of IP streaming protocols.
The device can be configured for SDI-to-IP encoding or IP-to-SDI decoding, making it suitable for point-to-point video transmission, live streaming workflows, and integration into existing video systems.
Available configurations:
-
3G-SDI to IP Encoder: Accepts an SDI video signal, encodes it, and transmits the video stream over an IP network.
-
IP to 3G-SDI Decoder: Receives a compatible IP video stream, decodes it, and outputs video through the 3G-SDI interface.
-
Encoder and Decoder Pair: Use a compatible encoder and decoder together to transport video over an Ethernet network.
Please confirm the required configuration, protocol compatibility, and licensing options before ordering.
Key Features
-
3G-SDI Input and Output: Supports SDI video signals up to 1080p60.
-
H.264 and H.265 Encoding: Supports multiple video profiles and encoding options.
-
IP Video Streaming: Supports RTSP, RTMP, RTMPS, SRT, HTTP, HLS, and UDP.
-
NDI HX Support: Available with the required NDI HX license.
-
Multi-Channel Processing: Supports up to 2 × 1080p60 or 4 × 1080p30 encoding, subject to the selected operating mode.
-
4K Decoding Capability: Supports up to 1 × 4K30 decoding. This does not mean the SDI interface supports 4K input or output.
-
Audio Integration: Supports embedded SDI audio and 3.5 mm stereo line input/output.
-
Recording and Playback Storage: Supports USB storage and internal storage for compatible recording workflows.
-
Compact Design: Small form factor for equipment racks, control rooms, studios, and mobile video systems.
-
Flexible Connectivity: Ethernet networking, with optional Wi-Fi and USB-connected 4G/5G connectivity depending on modem compatibility.
Applications
-
SDI camera to IP network video transmission
-
IP video stream to SDI monitor or production equipment
-
Live streaming and remote video contribution
-
Point-to-point video transmission over Ethernet
-
Remote monitoring and video control rooms
-
Video distribution and AV system integration
-
Broadcast, studio, and professional video workflows
-
Custom video encoding and decoding projects
Technical Specifications
Hardware
| Parameter | Specification |
|---|---|
| Processor | ARM Cortex-A7 quad-core, 1.2 GHz |
| RAM | 2 GB DDR4 |
| Flash Storage | 8 GB eMMC |
| Ethernet | 10/100 Mbps RJ45 |
| Wi-Fi | Optional |
| 4G Connectivity | Optional USB modem; compatible models to be confirmed |
| 5G Connectivity | Optional USB modem; compatible models to be confirmed |
| Power Supply | DC 12 V, 1 A |
| Power Consumption | Less than 10 W |
| Operating Temperature | 0°C to +70°C |
| Dimensions | 129 × 82 × 34 mm |
| Net Weight | Approximately 350 g |
Video Interfaces
| Parameter | Specification |
|---|---|
| SDI Input | 3G-SDI, up to 1080p60 |
| SDI Output | 3G-SDI, up to 1080p60 |
| Supported Input Resolutions | 1080p, 720p, 1080i, 720i, 1600 × 1200, 1440 × 900, 1366 × 768, 1280 × 1024, 1024 × 768, 800 × 600, 640 × 480, and other supported formats |
| Video Encoding | H.264 Baseline, Main and High; H.265 Main; MJPEG/JPEG Baseline |
| Maximum Encoding Frame Rate | 1–60 fps |
| Encoding Capacity | Up to 2 × 1080p60 or 4 × 1080p30 |
| Decoding Capacity | Up to 1 × 4K30, 2 × 1080p60 or 4 × 1080p30 |
| Maximum Bitrate | 20 Mbps per encoding channel |
| Bitrate Control | CBR, VBR, AVBR, FIXQP |
Audio
| Parameter | Specification |
|---|---|
| SDI Embedded Audio | Stereo, 48 kHz |
| Line Input | 3.5 mm stereo |
| Line Output | 3.5 mm stereo |
| Audio Formats | AAC, MP3, MPEG-2, PCMA, OPUS |
| Audio Sampling Rates | 48, 44.1, 32, 16 and 8 kHz |
Network Protocols and Streaming
| Parameter | Specification |
|---|---|
| Streaming Protocols | RTSP, RTMP, RTMPS, HTTP, HLS, UDP |
| Transport Modes | Unicast and multicast |
| SRT | Supported |
| NDI | NDI HX with a separately required license |
| ONVIF | Send and receive |
| GB28181 | Availability and supported functions to be confirmed |
| Network Interface | 10/100 Mbps Ethernet |
Recording
| Parameter | Specification |
|---|---|
| Storage Interfaces | USB and internal storage |
| Available Internal Storage | Approximately 6 GB usable |
| Recording Formats | MP4, TS, FLV, MOV, MKV, AVI |
Important Notes Before Ordering
-
The SDI input and output support up to 1080p60. The advertised 4K30 capability refers to decoding performance, not 4K SDI connectivity.
-
NDI HX operation requires the appropriate license.
-
Encoding and decoding channel counts depend on the selected operating mode and configuration.
-
Optional Wi-Fi and USB-connected 4G/5G functions depend on compatible hardware and modem support.
-
Please specify whether you need an SDI-to-IP encoder, an IP-to-SDI decoder, or a complete encoder-decoder pair.
-
For SRT, NDI HX, ONVIF, GB28181, or multi-channel projects, please confirm the required workflow and compatibility before purchase.
Request a Quote
Need an SDI-to-IP encoder, an IP-to-SDI decoder, or a matched pair? Contact DVCAN with your video format, streaming protocol, number of channels, and intended application. We can help confirm the appropriate configuration for your project.
