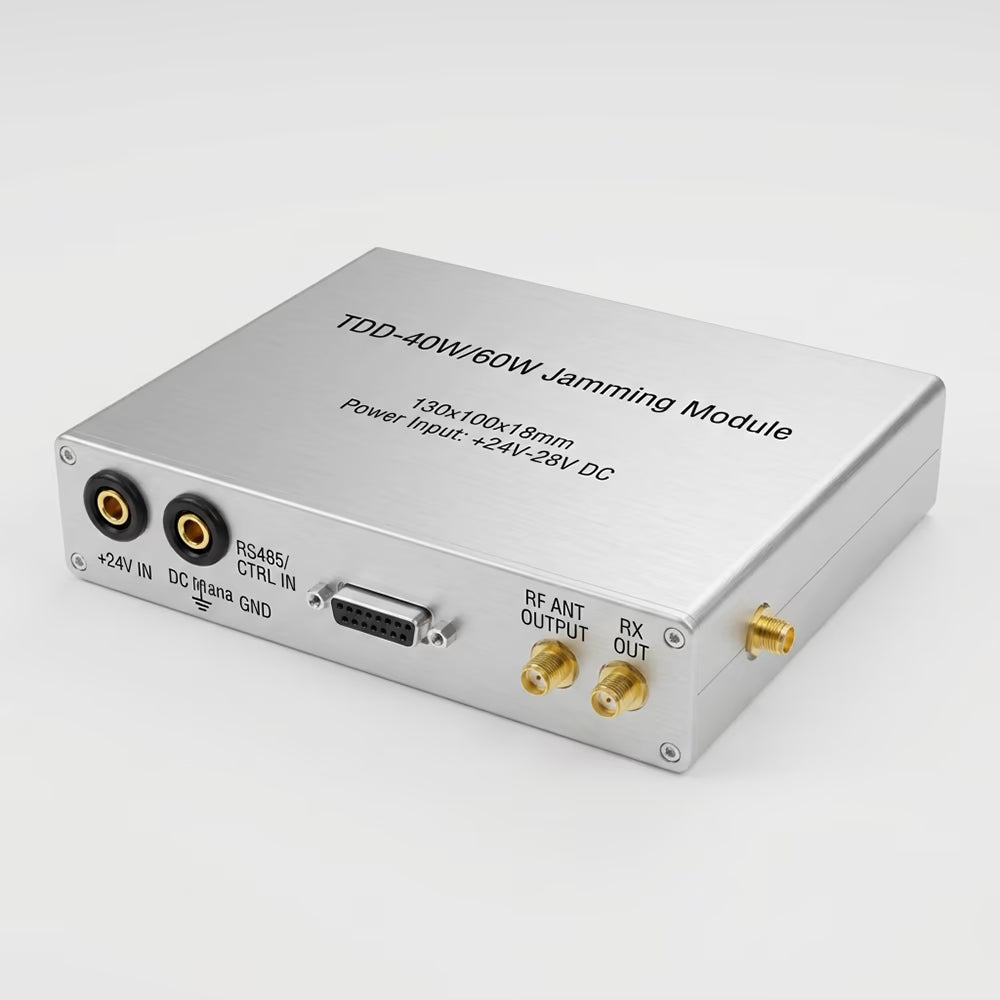

40W/60W TDD Low-Frequency RF Power Amplifier Module, 20–500MHz
Overview
The 40W/60W TDD Low-Frequency RF Power Amplifier Module is designed for RF communication systems requiring high transmit power, reliable receive-path performance, and fast transmit/receive switching.
Supporting two frequency ranges, 20–88MHz and 114–500MHz, this compact module integrates a high-gain transmit path, a low-noise receive path, and TTL-controlled Time Division Duplex (TDD) switching.
Available in 40W and 60W output power configurations, the module offers flexible integration options for specialized RF communication equipment and embedded wireless systems. Its RS485 interface and 3.3V TTL control signals facilitate integration with external control systems.
With customizable gain and support for OEM/ODM projects, this RF power amplifier is suitable for applications requiring tailored frequency coverage, output power, and control interfaces.
Important: The product supports two separate frequency ranges: 20–88MHz and 114–500MHz. It does not provide continuous coverage from 20MHz to 500MHz.
Key Features
- 40W or 60W Output Power: Choose the configuration that matches your RF system requirements.
- Dual Frequency Range Options: Supports 20–88MHz or 114–500MHz operating bands.
- High Transmit Gain: 50dB ±1dB TX gain, with customization available.
- Receive Path Integration: 25dB ±1dB RX gain with a specified noise figure of ≤5dB.
- Fast TDD Switching: Specified TX/RX switching time of ≤1μs.
- Integrated RF Protection: Includes a receive-path limiter and low-pass filter.
- Flexible Control Interfaces: RS485 communication and 3.3V TTL TX/RX switching signals.
- Compact Design: Measures 130 × 100 × 18mm for space-conscious equipment integration.
- Wide DC Supply Range: Operates from a 24–28V DC power supply.
- OEM/ODM Customization: Frequency range, gain, output power, and interface requirements can be discussed for custom projects.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | TDD RF Power Amplifier Module |
| Operating Frequency | 20–88MHz or 114–500MHz |
| TX Output Power | 40W or 60W |
| TX Gain | 50dB ±1dB, customizable |
| TX Input Level | -5dBm ±1dB |
| RX Gain | 25dB ±1dB |
| RX Noise Figure | ≤5dB |
| TX/RX Switching Time | ≤1μs |
| VSWR | ≤1.4 |
| In-Band Spurious Emissions | ≤-36dBm |
| Out-of-Band Spurious Emissions (9kHz–1GHz) | ≤-36dBm |
| Out-of-Band Spurious Emissions (1–12.75GHz) | ≤-30dBm |
| Power Supply | DC 24–28V |
| TX Operating Current | 3.5A ±1A, subject to engineering confirmation |
| Control Interface | RS485 and 3.3V TTL |
| Control Connector | J30J-15ZKW, 15-pin |
| Operating Temperature | -10°C to +65°C |
| Relative Humidity | 5%–95% |
| Dimensions | 130 × 100 × 18mm |
Note: Specifications may vary with the selected frequency and output power configuration. Please confirm the final operating parameters, power requirements, and test conditions with our engineering team before integration.
Interface Definition
The module uses a J30J-15ZKW 15-pin control connector for power input, RS485 communication, and TTL-based transmit/receive switching.
| Pin | Signal | Description |
|---|---|---|
| 1–3 | +24V | DC power input |
| 4–6 | GND | Ground |
| 7 | RS485-A | RS485 communication signal A |
| 8 | RS485-B | RS485 communication signal B |
| 9–10 | GND | Ground |
| 11 | RX_SW | Receive switching control, active high |
| 12 | TX_SW | Transmit switching control, active high |
| 13–15 | NC | No connection |
TTL Control Levels
- High level: 3.3V
- Low level: 0V
- Control signals: RX_SW and TX_SW
- Both switching signals are specified as active high.
Please confirm the correct switching sequence and permitted TX/RX states with the engineering team before connecting the module to your host equipment.
Applications
The 40W/60W TDD Low-Frequency RF Power Amplifier Module can be considered for the following applications, subject to frequency compatibility and system requirements.
- RF Communication Systems: Transmit power amplification for compatible low-frequency RF communication equipment.
- Wireless Data Transmission: RF front-end integration for specialized wireless data links.
- Industrial Communication Equipment: Integration into customized industrial RF systems.
- Embedded RF Systems: Compact amplifier integration into custom communication devices.
- OEM/ODM Wireless Projects: Customized RF hardware development for specific frequency and output-power requirements.
- Custom TDD Systems: Applications requiring coordinated transmit and receive switching.
Customization Options
Factory-direct OEM/ODM support is available for projects requiring different RF configurations.
Customization options may include:
- Operating frequency range
- TX output power
- TX gain
- RX gain and receive-path performance
- Control interfaces and connector requirements
- Mechanical dimensions and mounting arrangements
All custom configurations are subject to engineering evaluation and design feasibility.
FAQ
Q1: What frequency ranges does this RF power amplifier support?
The module supports two specified frequency ranges: 20–88MHz and 114–500MHz. These are separate frequency ranges, not continuous coverage from 20MHz to 500MHz.
Q2: Is the module available in both 40W and 60W versions?
Yes. The module is available in 40W and 60W transmit output power configurations. Please specify your required output power when requesting a quotation.
Q3: What is the TX/RX switching time?
The specified TX/RX switching time is ≤1μs. Actual system performance depends on the control sequence, operating conditions, and integration requirements.
Q4: What power supply does the module require?
The specified DC supply voltage is 24–28V. Confirm the actual current requirements for your selected configuration with the engineering team before selecting a power supply.
Q5: Which control interfaces are supported?
The module supports RS485 communication and separate 3.3V TTL TX_SW and RX_SW control signals through a J30J-15ZKW 15-pin connector.
Q6: Does the module support antenna-disconnection protection or automatic TX shutdown when there is no input signal?
According to the manufacturer, the standard version does not support these two protection functions. If your application requires additional protection, discuss suitable external protection solutions with the engineering team before operation.
Q7: Can the frequency range or output power be customized?
Yes. Frequency, gain, output power, and interfaces can be discussed for OEM/ODM projects. Custom configurations require technical evaluation.
Q8: How can I request a quotation?
Please provide your required frequency range, output power, gain, DC supply conditions, control interface, and estimated order quantity. Our team can evaluate your requirements and provide a suitable configuration and quotation.
