5.8GHz Long-Range Wireless Data Link Module

Important: This product is sold per unit.

• 1 unit = 1 wireless module
• 2 units = 1 VTX + 1 VRX pair

To build a complete VTX + VRX link, please order 2 units.

The DV2258 is a compact 5.8GHz wireless data link module designed for embedded wireless communication, remote control, telemetry, robotics, industrial equipment, and mobile communication systems.

Using dual-antenna MIMO technology, the module provides a maximum air data rate of 100Mbps and supports transparent Ethernet and UART data transmission. An integrated SBUS interface is also available for systems requiring remote-control or control-signal communication.

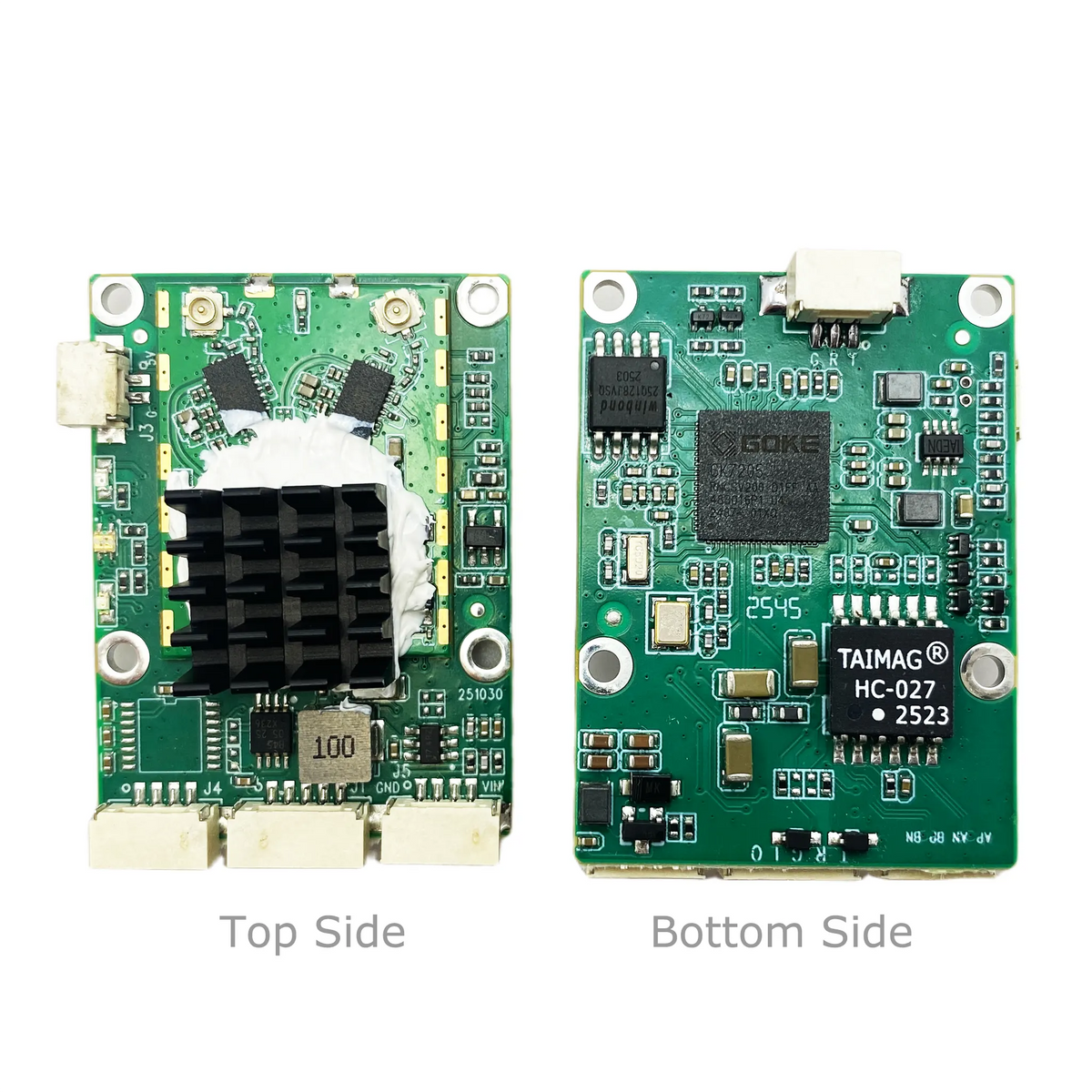

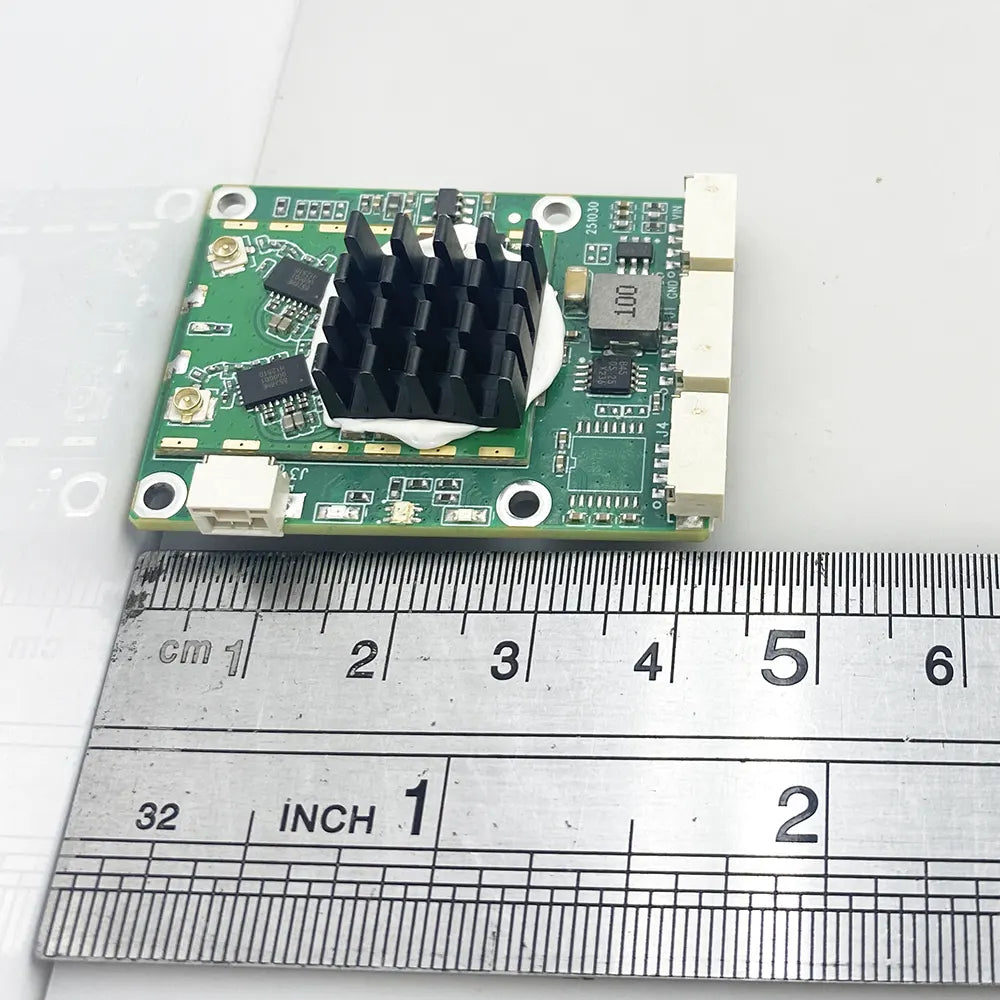

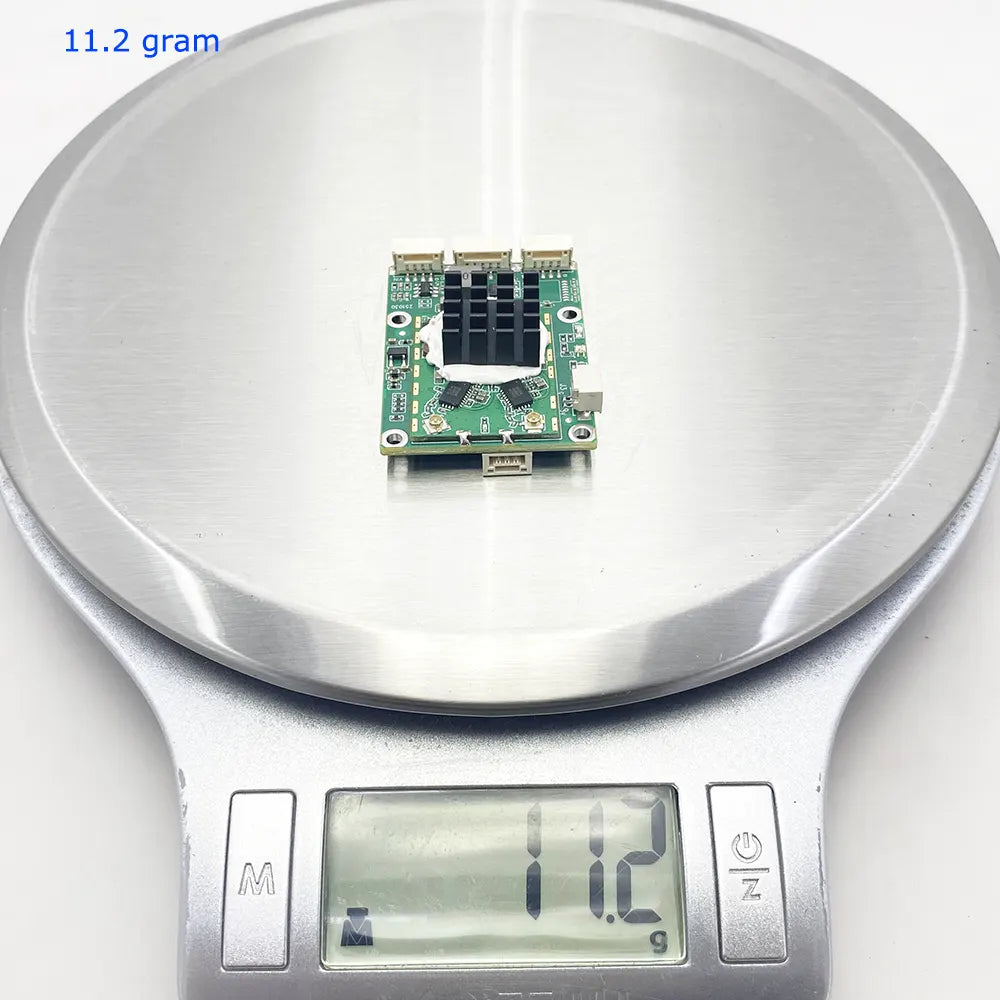

The module features a compact PCB design measuring only 42.5 × 30.5 mm and weighs approximately 8.9 g, making it suitable for space-constrained equipment and embedded applications.

Key Features

• 5.8GHz wireless communication

• Maximum air data rate up to 100Mbps

• Dual-antenna MIMO architecture

• 20MHz wireless bandwidth

• IEEE 802.11n compatible

• Transparent Ethernet data transmission

• Bidirectional transparent UART communication

• SBUS input/output

• Point-to-point, point-to-multipoint, and star network support

• Web-based configuration interface

• 7–30V DC wide input voltage

• Compact 42.5 × 30.5mm PCB

• Approx. 8.9g module weight

• Optional RS232 UART interface

• OEM firmware, connector, cable, and branding customization available

Wireless Specifications

* Actual communication distance depends on antenna configuration, installation height, environment, interference, and regulatory conditions.

Supported Channels

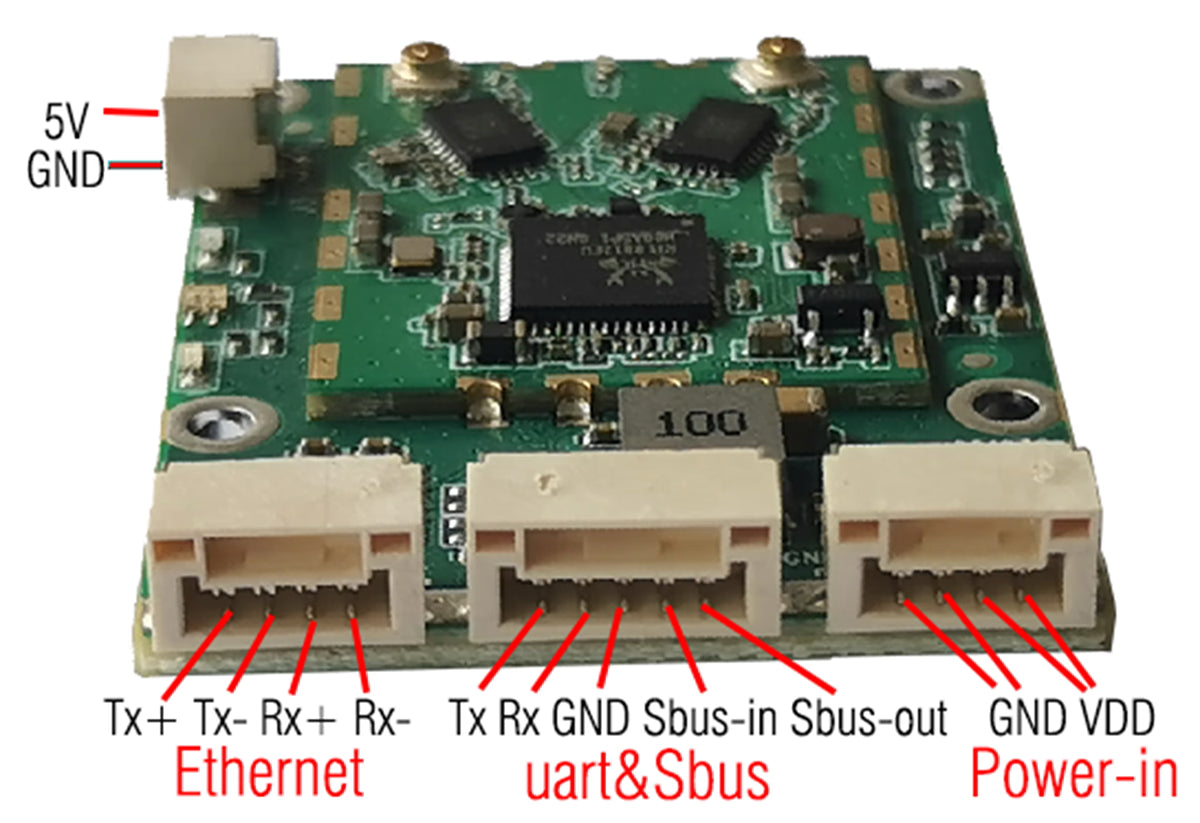

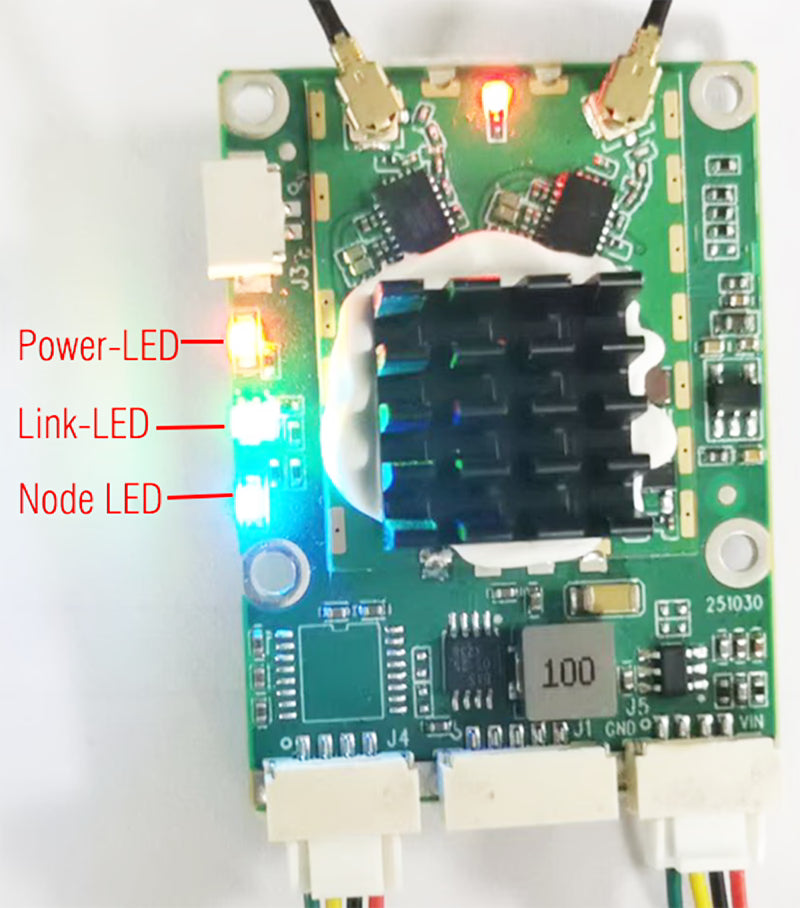

Interfaces

Ethernet

• 100Mbps bidirectional transparent Ethernet

• 4-pin 1.25mm locking connector

UART / SBUS

• Bidirectional transparent UART

• SBUS input/output

• Default UART level: TTL 3.3V

• Optional RS232 level available

• Configurable baud rates from 1200bps to 921600bps

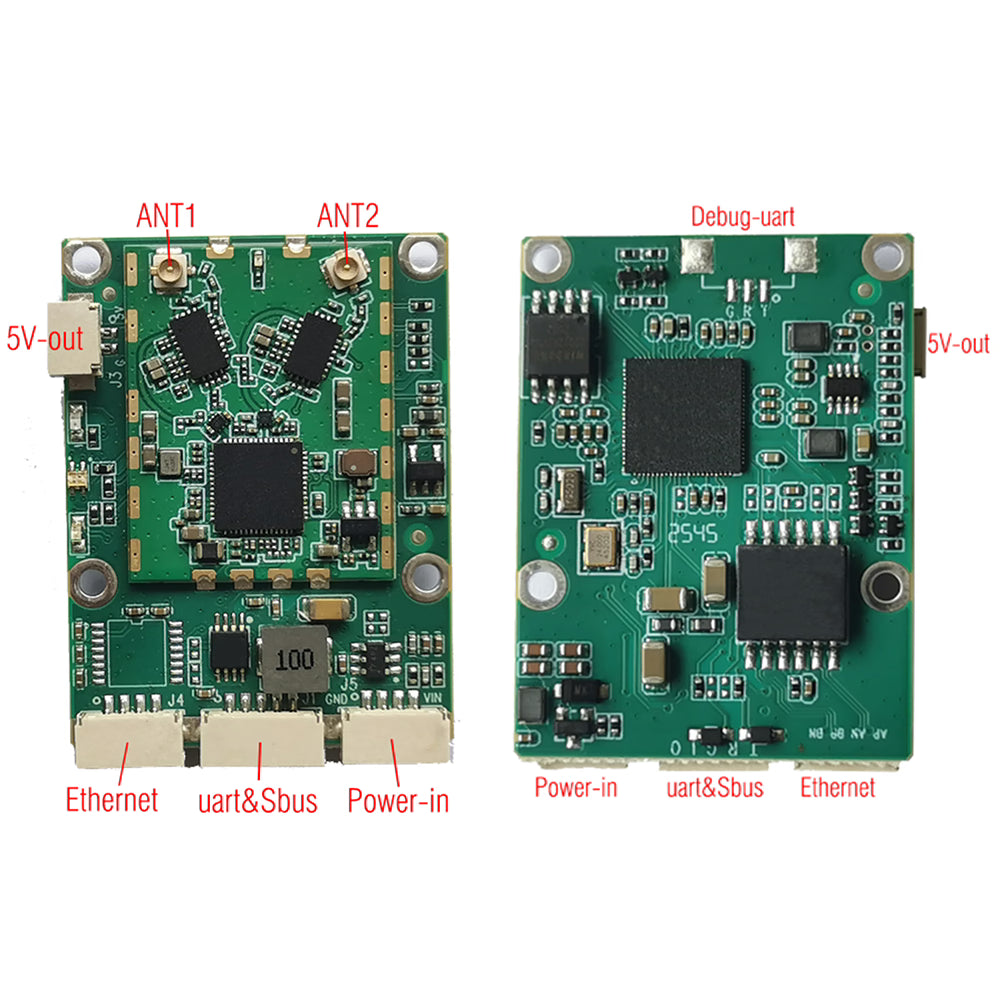

Antenna

• ANT1: IPEX

• ANT2: IPEX

• Dual external antenna connection

Power

• Input voltage: 7–30V DC

• 4-pin 1.25mm locking connector

• Power consumption: <5.5W during full transmission

5V Auxiliary Output

• Regulated 5V output

• 2-pin 1.25mm connector

• Suitable for powering an external cooling fan or other low-power accessory

Mechanical Specifications

Web-Based Configuration

The module can be configured through a browser-based Web UI. Users can adjust wireless and network parameters, select the operating channel, configure the serial port baud rate, and manage the network mode.

Network Applications

The DV2258 can be integrated into a variety of wireless communication systems, including:

• Industrial equipment networking

• Robotics and mobile robots

• Remote monitoring systems

• Wireless Ethernet bridges

• Remote control systems

• Telemetry and data acquisition

• Embedded communication systems

• Autonomous mobile platforms

• Custom wireless communication equipment

OEM & Customization

As a manufacturer, iVcan can provide customization for volume projects, including:

• Firmware customization

• UART interface customization

• RS232 interface option

• Connector and cable customization

• Antenna and antenna cable options

• OEM labeling

• Customized packaging

• Integration support for customer equipment

Please contact us with your required frequency, communication distance, interface, quantity, and application. We can recommend the appropriate configuration for your project.

Package

The standard package includes:

• 1 × DV2258 wireless data link module

Antennas, cables, connectors, and other accessories can be supplied separately or customized according to project requirements.

User Manual

https://cdn.dvcan.com/pdf/2258-5.8ghz-wireless-video-data-link-web-ui-user-manual.pdf
