500MHz–8GHz Ultra-Wideband FPV Video Receiver
Overview
The DV2165 Ultra-Wideband FPV Video Receiver is designed for FPV drones, aerial video monitoring, and analog wireless video reception across multiple frequency bands. With a wide tuning range of 500MHz to 8000MHz, it offers a flexible solution for systems operating at different frequencies.
Automatic channel scanning helps locate active video signals, while manual frequency locking lets users select and maintain a desired channel. An integrated LCD screen and intuitive control buttons make operation straightforward for both FPV enthusiasts and professional integrators.
Key Features
• Ultra-Wide Frequency Range: Covers 500MHz–8000MHz for versatile multi-band analog FPV applications.
• Automatic Channel Scanning: Searches for active video signals and helps identify available channels.
• Manual Frequency Locking: Lock onto a detected signal for stable monitoring.
• NTSC/PAL Compatibility: Automatically detects supported analog video formats.
• High Receiver Sensitivity: Specified sensitivity of -90dBm.
• Real-Time Analog Video Output: RCA composite video output for compatible displays and video equipment.
• LCD Display and Physical Controls: Convenient access to operating status, frequency bands, and channel selection.
• Flexible Antenna Connection: SMA antenna interface supports compatible antennas selected for the operating frequency.
Technical Specifications
Model: DV2165
Product Type: Ultra-Wideband Analog FPV Video Receiver (VRX)
Frequency Range: 500MHz–8000MHz
Receiver Sensitivity: -90dBm
Reception Modes: Automatic Search / Fixed Channel
Video Format: NTSC / PAL, automatic detection
Video Output: RCA composite video (yellow connector)
Antenna Interface: SMA
Power Supply: 12–28V DC regulated input
Power Connector: DC-005
Dimensions: 90 × 92 × 24mm
Weight: Approximately 119.5g
Reception Distance: Depends on transmitter power, antenna configuration, terrain, and operating environment; the source lists 10m–50km as a reference range.

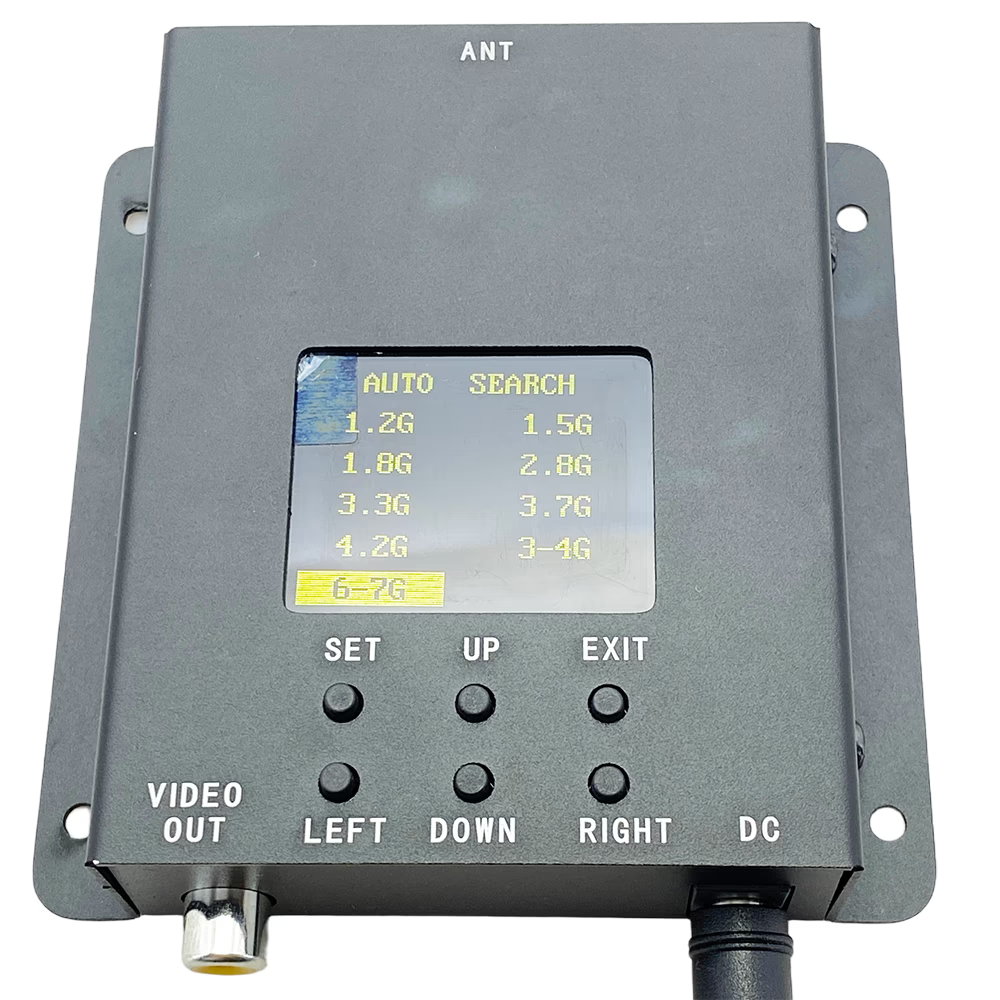

Buttons and Interfaces
• LCD Screen: Displays operating information.
• SET/OK Button: Confirms selections and locks onto a detected frequency.
• Navigation Buttons: UP, DOWN, LEFT, and RIGHT for menu and frequency-band selection.
• Return/Exit Button: Returns to the previous menu or exits the current selection.
• SMA Antenna Port: Connects a compatible receiving antenna.
• RCA Video Output: Connects to a compatible analog video display or recording device.
• DC Power Input: Accepts a regulated 12–28V DC supply through the DC-005 interface.
How to Use
1. Connect a compatible antenna to the SMA antenna port before powering on.
2. Connect a regulated 12–28V DC power supply.
3. Connect the RCA video output to a compatible monitor or video device.
4. Select automatic search mode or navigate to the appropriate preset frequency band.
5. When the receiver detects the desired video signal, use the SET/OK button to lock onto it.
6. To search for another signal, release the lock and resume scanning.
Applications
• FPV Drone Video Reception
• FPV Racing and Drone Testing
• UAV Aerial Photography and Video Monitoring
• Analog Wireless Video Link Testing
• Remote Video Monitoring Systems
• RF and FPV Engineering Development
• Multi-Band Video Receiver Integration
FAQ
Q1: What frequency range does this receiver support?
A: The specified tuning range is 500MHz–8000MHz. Preset frequency bands are available for convenient operation.
Q2: Does it support automatic channel scanning?
A: Yes. The receiver can scan for active analog video signals and allows the user to lock onto a detected channel.
Q3: Which video formats are supported?
A: It supports analog NTSC and PAL video formats with automatic detection.
Q4: Can it receive signals from different FPV frequency bands simultaneously?
A: No. The receiver operates on one selected frequency at a time. To receive a transmitter operating on another band, retune or scan for that signal.
Q5: What power supply is required?
A: Use a regulated 12–28V DC power supply with a compatible DC-005 connection.
Q6: Does it include an antenna?
A: Antenna configurations may vary by package. Please confirm the included accessories before ordering. Use an antenna suitable for your target frequency band.
Q7: What affects the reception distance?
A: Range depends on transmitter output power, antenna gain and placement, line of sight, interference, and the surrounding environment. The stated maximum distance is not guaranteed in every installation.
Q8: Can I use it for custom FPV projects?
A: It may be integrated into compatible analog video reception systems. Confirm the required frequency, antenna, video interface, and power requirements before deployment.
Important Notes
• Always connect a suitable antenna before powering on the receiver.
• Use a regulated power supply within the specified voltage range.
• Ensure adequate ventilation during extended operation.
• The receiver supports one operating frequency at a time; it does not provide simultaneous reception across multiple bands.
• Verify local radio-frequency regulations and ensure that your transmitter and receiver are used on legally permitted frequencies.
Package Contents
Please confirm the exact package configuration with the seller before ordering. Receiver, antenna, power supply, cables, and other accessories may vary by configuration.
