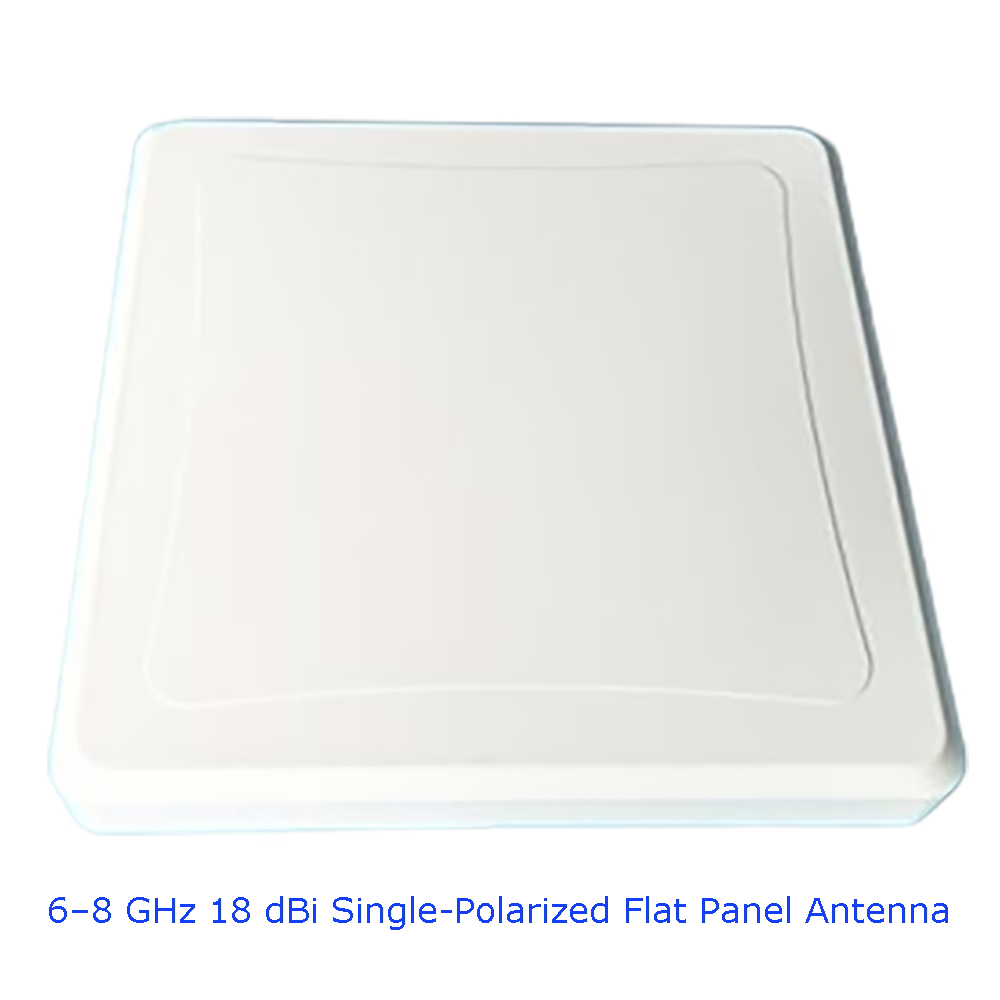

6–8 GHz 18 dBi High-Gain Flat Panel Directional Antenna
Overview
The 6–8 GHz 18 dBi Flat Panel Directional Antenna is designed for long-range wireless communication, high-frequency video transmission, and point-to-point data links. Operating across the 6000–8000 MHz frequency range, it provides high directional gain to help improve signal strength and reduce unwanted interference in demanding RF environments.
Featuring a compact flat-panel design and a durable ABS radome, this antenna is suitable for UAV communication systems, wireless video links, industrial networks, and professional microwave communication applications. Single-polarization configurations are available in either vertical or horizontal polarization.
Key Features
• Wide Frequency Range: 6000–8000 MHz (6–8 GHz)
• High Gain: 18 dBi ±1 dB
• Directional Coverage: 20° ±3° horizontal and vertical beamwidth
• Single Polarization: Vertical or horizontal, depending on configuration
• Low VSWR: ≤2.0
• Front-to-Back Ratio: ≥25 dB
• Maximum Power: 100 W per port
• ABS radome
• DC grounding
• Pole mounting for 30–75 mm diameter poles
• Operating Temperature: −40°C to +70°C
Technical Specifications
Product Type: Flat Panel Directional Antenna
Frequency Range: 6000–8000 MHz
Gain: 18 dBi ±1 dB
Polarization: Vertical or Horizontal, single polarization
Input Impedance: 50 Ω
VSWR: ≤2.0
Horizontal 3 dB Beamwidth: 20° ±3°
Vertical 3 dB Beamwidth: 20° ±3°
Front-to-Back Ratio: ≥25 dB
Cross-Polarization Ratio: ≥15 dB
Cross-Polarization Ratio (±60°): ≥8 dB
Upper Sidelobe Suppression: ≤−13 dB
Electrical Downtilt: 0°
Maximum Power per Port: 100 W
Connector: N-Female
Antenna Dimensions: 390 × 390 × 52 mm
Packing Dimensions: 480 × 480 × 110 mm
Net Weight: 1.8 kg
Radome Material: ABS
Mounting: Pole Mount
Compatible Pole Diameter: 30–75 mm
Maximum Wind Speed: 200 km/h
Operating Temperature: −40°C to +70°C
Lightning Protection: DC Ground
Applications
• UAV and drone wireless video transmission
• COFDM and digital microwave links
• Point-to-point wireless communication
• Point-to-multipoint networks
• Industrial wireless monitoring and control
• Remote video and data transmission
• Public safety and emergency communications
• Private wireless broadband networks
Customization Options
Vertical or horizontal polarization, selected frequency bands, compatible connectors, cable options, OEM/ODM branding, and mounting accessories may be available subject to engineering confirmation.
FAQ
Q: What frequency range does it support?
A: 6000–8000 MHz (6–8 GHz).
Q: What is the gain?
A: 18 dBi ±1 dB.
Q: Does it support both polarizations?
A: Vertical or horizontal single-polarization configurations are available. Specify your preference when ordering.
Q: Can it be used outdoors?
A: The ABS radome and specified temperature range support demanding environments. Confirm weatherproofing requirements with the supplier.
Q: Which connector is used?
A: Standard N-Female. Verify compatibility before purchase.
Q: Is it suitable for UAV video links?
A: Yes, for compatible systems operating in the 6–8 GHz band.
Q: Can it be customized?
A: Selected options may be available subject to engineering confirmation.
Important Note
This is a directional antenna. Align it toward the intended endpoint and ensure all RF equipment supports 6–8 GHz.
