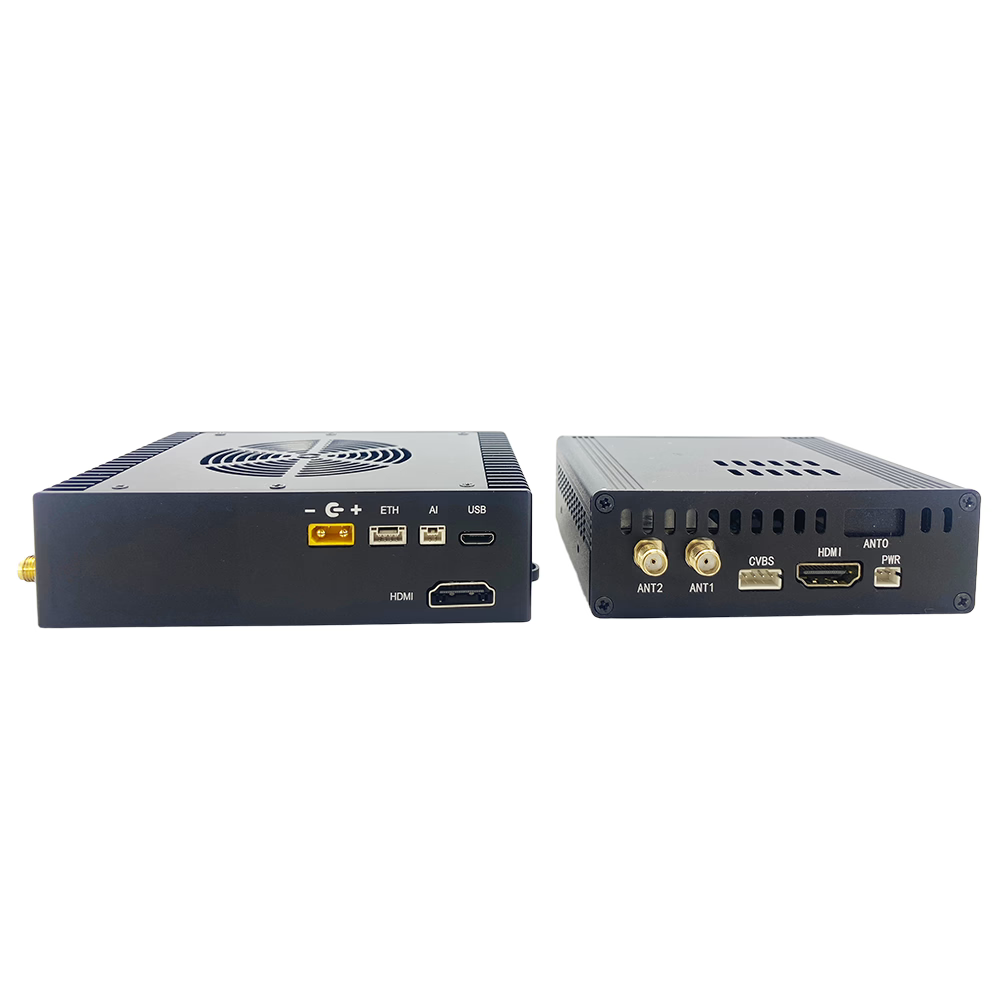

915MHz COFDM Wireless Video Transmitter and Receiver
The 915MHz COFDM Wireless Video Transmitter and Receiver is a professional digital wireless video link designed for reliable HD video transmission in the 902–928MHz frequency band.
With a high-power RF amplifier, COFDM modulation, and diversity reception, the system provides a stable wireless connection for long-range video transmission applications.
The system can be configured for different video inputs, RF power levels, antennas, and frequency requirements according to your project.
Key Features
-
915MHz operating frequency
-
902–928MHz frequency range
-
COFDM digital wireless transmission
-
Up to 5W RF output power option
-
HD digital video transmission
-
Dual-channel RF diversity receiver
-
Improved reception in multipath environments
-
Low-latency digital video transmission
-
Suitable for mobile and outdoor applications
-
External antenna connection
-
Professional aluminum housing
-
OEM and frequency customization available
915MHz Wireless Video Link
The transmitter operates in the 902–928MHz band, centered around 915MHz.
Because the receiver RF input and the 915MHz transmitter frequency may use different RF ranges, a dedicated BDC frequency down converter can be supplied for the receiver when required.
The BDC converts the 902–928MHz signal to approximately 687–713MHz so that it can be received by compatible receivers.
Typical Specifications
| Parameter | Specification |
|---|---|
| Operating Frequency | 902–928MHz |
| Center Frequency | 915MHz |
| Modulation | COFDM |
| RF Output Power | Up to 5W |
| Video Codec | H.265 / H.264 options |
| Video Input | HDMI / IP Ethernet options |
| Receiver | Dual RF diversity |
| RF Connector | SMA |
| Power Supply | DC input |
| Housing | Aluminum alloy |
| Application | Wireless HD video transmission |
Applications
This 915MHz COFDM wireless video system can be used for:
-
Professional wireless camera systems
-
Outdoor video monitoring
-
Industrial video transmission
-
Mobile video systems
-
Vehicle-mounted video transmission
-
Robotics and remote inspection
-
Security and surveillance systems
-
Long-range digital video links
-
Customized wireless video projects
Frequency Customization
915MHz is the standard configuration for this product. Other operating frequencies may be available depending on the RF power amplifier, filter, antenna, and receiver configuration.
If you need a different frequency, please contact us before ordering so our engineers can confirm the RF design and availability.
Important Note
The transmitter and receiver must be configured for compatible frequencies and RF parameters.
For 915MHz operation, the appropriate receiver and, when required, external BDC frequency down converter should be selected as a complete system.
Please contact us if you need a customized frequency, RF power, video interface, antenna, enclosure, or complete wireless video transmission solution.
Factory direct supply | OEM/ODM customization | Technical support available
