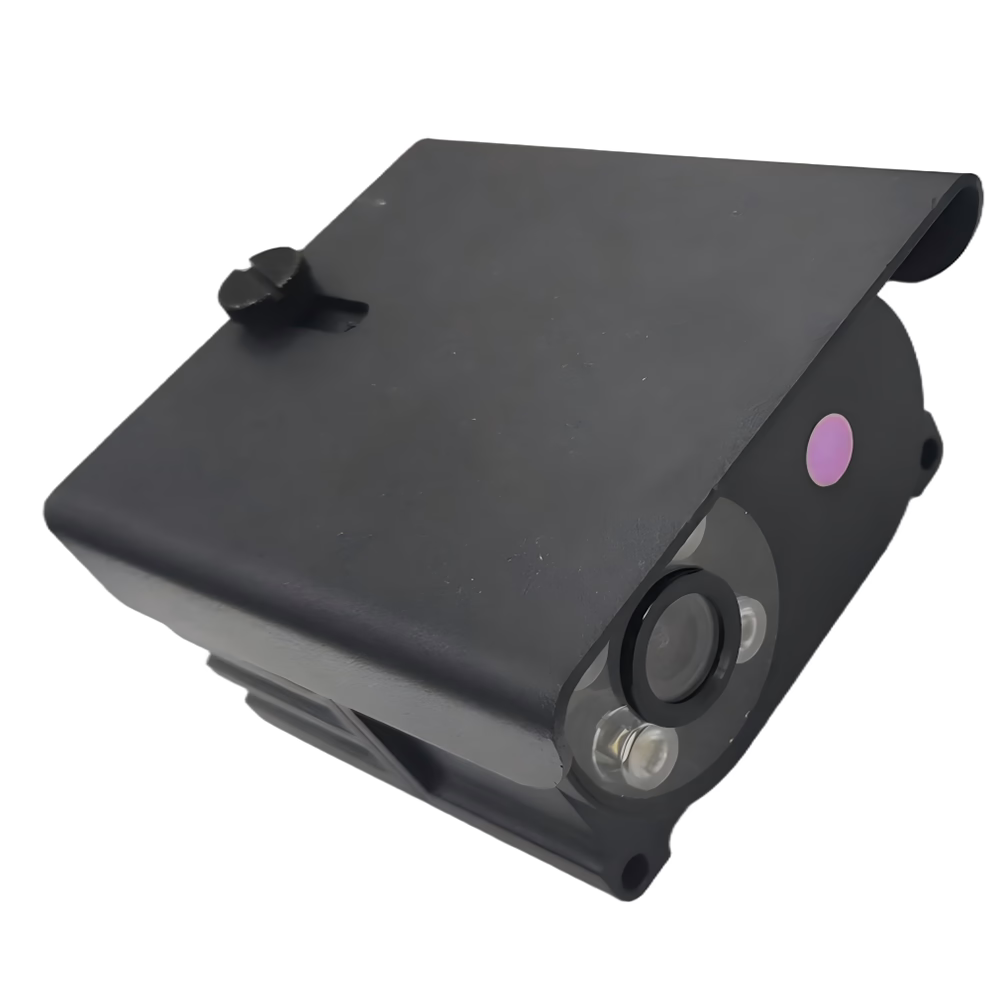

AI IP Dual-Lens Visible Light & Thermal Imaging Camera
Overview
The AI IP Dual-Lens Visible Light & Thermal Imaging Camera combines Full HD visible-light imaging with infrared thermal imaging in one intelligent network camera. It delivers clear visual details and thermal information simultaneously, helping users monitor environments, identify potential heat anomalies, and improve situational awareness in challenging lighting conditions.
Powered by a Rockchip RV1106G3 processor with a built-in 1 TOPS neural processing unit (NPU), this camera supports edge AI processing, real-time video streaming, and full-array temperature data output. Its open Linux SDK provides a flexible platform for developers and system integrators building customized monitoring and analytics solutions.
Key Features
• Dual-Spectrum Imaging: Combines 1920 × 1080 visible-light video with 256 × 192 thermal imaging.
• Temperature Measurement: Outputs full-array temperature data with typical accuracy of ±2°C or ±2%, depending on operating conditions and measurement range.
• Built-In AI Processing: Integrated 1 TOPS NPU supports on-device AI applications and customized analytics.
• Real-Time IP Streaming: Supports H.264/H.265 video compression and Ethernet network connectivity.
• Flexible Network Integration: Compatible with ONVIF and GB/T28181 protocols, with RTSP streaming support.
• Optional Wireless Connectivity: Wi-Fi, 4G, and GPS/BeiDou modules are available as optional configurations.
• Industrial-Grade Operation: Designed to operate in temperatures from -40°C to +70°C.
• Open Development Platform: Linux SDK and documentation support application development and system integration.
• Low Power Consumption: Less than 3 W with IR off and less than 5 W with IR on.
• Customizable Configuration: Optional lens, connectivity, firmware, and AI-function customization subject to confirmation.
Technical Specifications
Camera System
• Product Type: AI dual-lens IP thermal imaging camera
• Processor: Rockchip RV1106G3, ARM Cortex-A7 at 1.2 GHz
• AI Computing: 1 TOPS NPU
• Visible-Light Sensor: 1/2.7-inch progressive-scan CMOS
• Visible-Light Resolution: 1920 × 1080
• Thermal Detector: Uncooled vanadium oxide (VOx) infrared detector
• Thermal Resolution: 256 × 192
• Thermal Pixel Pitch: 12 μm
• Visible Spectrum: 390–850 nm (with IR)
• Thermal Spectrum: 8–14 μm
• Visible Lens: 4 mm F1.6; optional 2.8 mm or 6 mm
• Thermal Lens: 3.2 mm F1.1
• Thermal Field of View: 56° × 42°
Video and Networking
• Video Compression: H.264 / H.265
• Frame Rate: 1–25 fps at 50 Hz or 1–30 fps at 60 Hz
• Adjustable Bitrate: 32 Kbps–16 Mbps
• Streaming: Main stream and substream
• Network Interface: 10/100 Mbps Ethernet
• Network Protocols: TCP/IP, HTTP, FTP, DHCP, RTP/RTSP/RTCP, NTP
• Integration Protocols: ONVIF, GB/T28181
• Serial Interface: RS485
• Wireless Options: Wi-Fi / 4G, optional
• Positioning: GPS / BeiDou, optional
• Storage: SD/TF card support
• Connector: Aviation connector integrating Ethernet and DC power
Temperature Measurement
• Typical Accuracy: ±2°C or ±2% of reading, whichever is greater, subject to configuration and conditions
• Optional Measurement Ranges: -20°C to +150°C or 50°C to +550°C wide-range mode
• Temperature Data: Full-array temperature output
• Alarm Functions: Configurable alarm linkage and event notifications, depending on software configuration
Power and Environment
• Power Supply: DC 12 V
• Power Consumption: Less than 3 W with IR off; less than 5 W with IR on
• Operating Temperature: -40°C to +70°C
• Dimensions: 95 × 85 × 69 mm
Applications
• Security and Perimeter Surveillance: Monitor facilities and detect suspicious activity in low-light environments.
• Fire Prevention: Identify abnormal heat sources and support early-warning monitoring.
• Industrial Inspection: Monitor equipment temperatures and help identify potential overheating.
• Warehouses and Factories: Combine visual surveillance with thermal anomaly monitoring.
• Smart Buildings and IoT: Integrate thermal data into intelligent monitoring systems.
• Emergency Response: Provide complementary visual and thermal information for situational assessment.
• UAV and Robotics Projects: Consider for customized platforms where the camera's dimensions, weight, interfaces, and environmental requirements are suitable.
Customization Options
• Optional visible-light lens configurations
• Optional Wi-Fi, 4G, and GPS/BeiDou modules
• Customized AI algorithms and analytics
• Temperature measurement ranges and alarm thresholds
• Firmware, OSD, and software integration
• SDK/API integration for specialized applications
Please contact us to confirm the required configuration, SDK availability, temperature measurement range, and integration requirements before ordering.
FAQ
Q1: Does this camera support both visible-light and thermal imaging?
A: Yes. It combines a 1920 × 1080 visible-light camera with a 256 × 192 thermal imaging detector.
Q2: Can it measure temperature?
A: Yes. It supports full-array temperature data output. Available measurement ranges and accuracy depend on the selected configuration and operating conditions.
Q3: Does it support remote monitoring?
A: Yes. Ethernet IP streaming and supported network protocols enable integration with compatible monitoring software and systems.
Q4: Can I integrate my own AI algorithms?
A: The open Linux SDK and built-in 1 TOPS NPU provide a development platform for customized AI applications. Confirm the required SDK, drivers, and supported algorithms with us.
Q5: Does it support Wi-Fi or 4G?
A: Wi-Fi and 4G modules are optional. Please specify your connectivity requirements when requesting a quotation.
Q6: Can it operate outdoors in cold or hot environments?
A: The specified operating temperature range is -40°C to +70°C. Confirm enclosure protection and installation requirements for your deployment.
Q7: What power supply does it require?
A: The camera uses a DC 12 V power supply through its aviation connector, which integrates Ethernet and power connections.
Q8: Can the camera be customized?
A: Customization may be available for lenses, connectivity, AI functions, firmware, and integration. Contact us with your project requirements to confirm feasibility.
