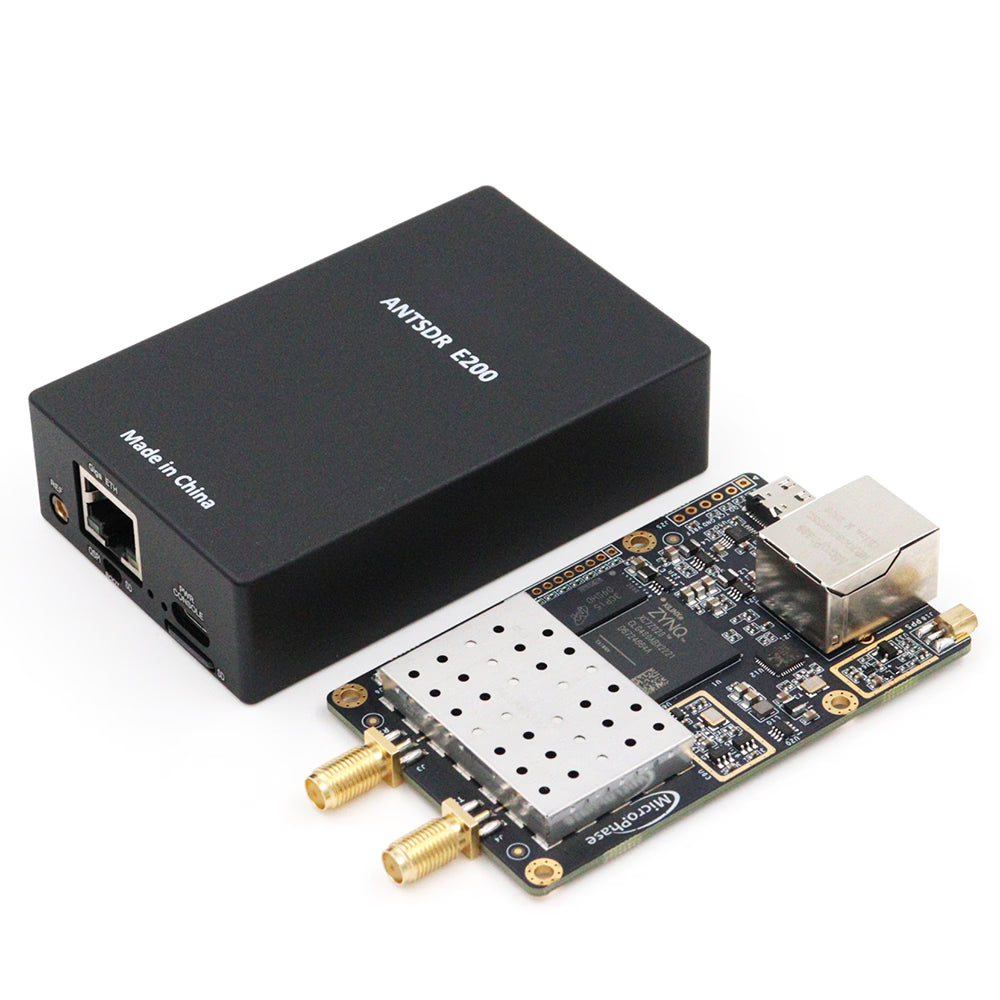

ANTSDR E200 Software Defined Radio Development Platform
The ANTSDR E200 is a compact software-defined radio (SDR) platform developed by MicroPhase Technology. It combines programmable FPGA processing with a wideband RF transceiver, providing a flexible hardware foundation for wireless communication experiments, RF signal processing, and SDR application development.
With its 2T2R architecture, Gigabit Ethernet interface, and programmable processing resources, the E200 is suitable for engineers, researchers, universities, and developers who need a configurable SDR platform for prototyping and testing.
Key Features
1. Wideband RF Transceiver
The E200 is available with Analog Devices AD9361 or AD9363 RF transceivers. The supported tuning range and instantaneous RF bandwidth depend on the installed transceiver version.
-
AD9361 version: 70 MHz–6 GHz tuning range
-
AD9363 version: 325 MHz–3.8 GHz tuning range
-
Two transmit channels and two receive channels
-
Adjustable RF sampling rate and bandwidth
Please confirm the exact RF chip version before ordering.
2. Xilinx Zynq-7020 Processing Platform
The E200 integrates a Xilinx Zynq-7020 SoC FPGA, combining a dual-core ARM Cortex-A9 processor with programmable FPGA logic.
This architecture supports custom digital signal processing, baseband processing, hardware acceleration, and the development of specialized wireless communication functions.
3. Gigabit Ethernet Connectivity
A Gigabit Ethernet interface allows the E200 to communicate with a host computer for SDR control, data exchange, and application development.
The device can be integrated into a development environment using supported SDR software and drivers.
4. Flexible Software Development
The ANTSDR E200 supports multiple software development approaches and open-source SDR projects. Depending on the selected firmware and software stack, developers can explore GNU Radio, UHD-based workflows, libiio, and other compatible development tools.
It can be used as a hardware platform for testing new signal-processing algorithms and wireless communication protocols.
Typical Applications
-
Software-defined radio research and education
-
RF signal transmission and reception experiments
-
Wireless communication system prototyping
-
Digital signal processing development
-
Spectrum monitoring and RF experimentation
-
Custom SDR firmware and FPGA development
-
Experimental wireless networking projects
Hardware Configuration
The exact specifications may vary by hardware version. Before placing an order, please confirm the RF transceiver, frequency coverage, bandwidth requirements, firmware compatibility, and included accessories.
For engineering projects and bulk purchases, contact us with your application requirements. We can help confirm the appropriate configuration and provide a quotation.
Specifications
|
Parameter |
Specification |
|---|---|
|
Product model |
ANTSDR E200 |
|
Product type |
Software Defined Radio (SDR) |
|
Main processor |
Xilinx Zynq-7020 SoC FPGA |
|
RF transceiver |
AD9361 or AD9363 |
|
RF channels |
2 TX / 2 RX |
|
RF tuning range |
AD9361: 70 MHz–6 GHz; AD9363: 325 MHz–3.8 GHz |
|
RF bandwidth |
AD9361: 200 kHz–56 MHz; AD9363: 200 kHz–20 MHz |
|
Maximum sample rate |
Up to 61.44 MSPS |
|
Memory |
512 MB DDR3 |
|
Firmware storage |
256 Mbit QSPI Flash |
|
Network interface |
Gigabit Ethernet |
|
Expansion |
GPIO, microSD, JTAG and reference clock interfaces |
|
Software ecosystem |
GNU Radio, UHD, libiio and compatible SDR software, depending on firmware |
|
Application |
SDR development, RF experimentation and wireless research |
Frequently Asked Questions
1. What is the ANTSDR E200?
The ANTSDR E200 is a software-defined radio development platform designed for RF experimentation, wireless communication research, and custom SDR development.
2. What frequency range does the E200 support?
The supported tuning range depends on the installed RF transceiver. The AD9361 version supports 70 MHz to 6 GHz, while the AD9363 version supports 325 MHz to 3.8 GHz.
3. Does the E200 support MIMO?
Yes. The hardware provides two transmit channels and two receive channels, supporting 2T2R operation. The achievable MIMO functionality depends on the software, firmware, and application configuration.
4. Can the E200 be used with GNU Radio?
The E200 supports SDR development workflows involving GNU Radio and other compatible software. The required firmware, drivers, and configuration depend on the intended application.
5. Is the E200 suitable for custom wireless communication projects?
Yes. Its programmable FPGA architecture and configurable RF front end make it useful for prototyping and testing wireless communication systems. Project-specific RF, software, and regulatory requirements should be evaluated before deployment.
6. How can I confirm the correct version before ordering?
Please provide your required frequency range, bandwidth, transmit and receive configuration, software environment, and quantity. We can then help confirm the appropriate hardware version and quotation.
