AV to HDMI Converter Board – Continuous HDMI Output, Static Noise & Custom OSD
Overview
Convert analog AV/CVBS video to HDMI while maintaining continuous HDMI output when the input video signal becomes weak or temporarily unavailable.
This converter supports customizable no-signal display modes, including simulated static noise, black screen, blue screen, customer logo, warning messages, timestamp and other OSD information. OEM firmware customization is available for system integration and special video monitoring applications.
Description

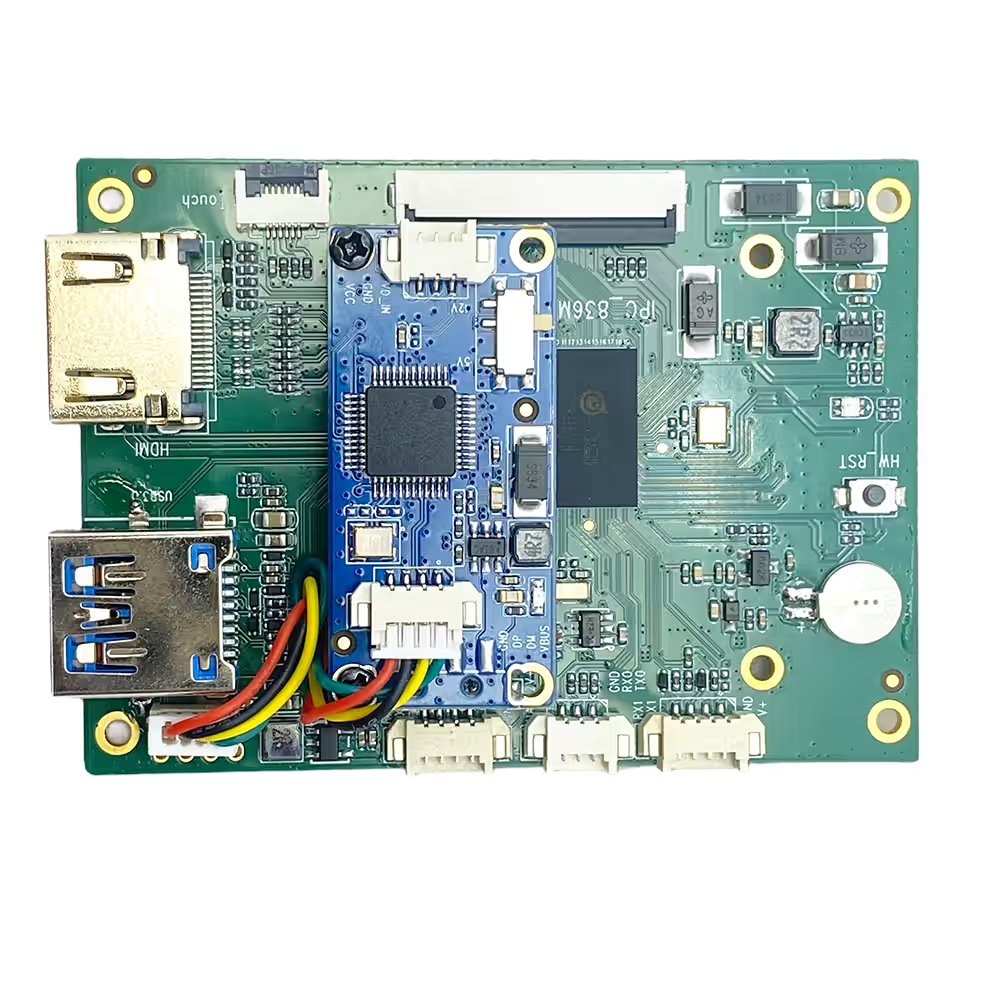

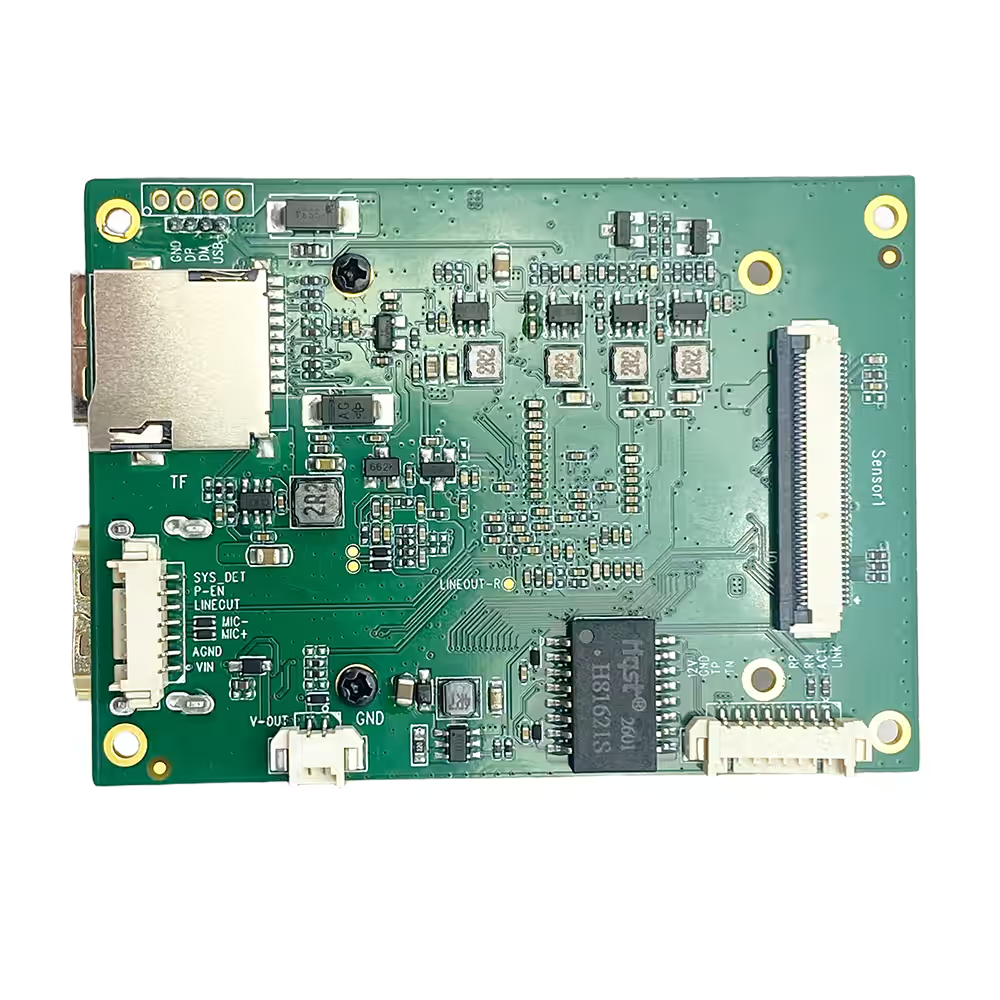

The DVcan AV to HDMI Converter Board is designed for applications where the HDMI display must remain active even when the analog video signal becomes weak or temporarily disappears.
Unlike a standard AV to HDMI converter that may show a blue screen, freeze the last frame or trigger an HDMI re-handshake when the input signal is lost, this converter can maintain continuous HDMI output and provide a configurable display according to your application requirements.

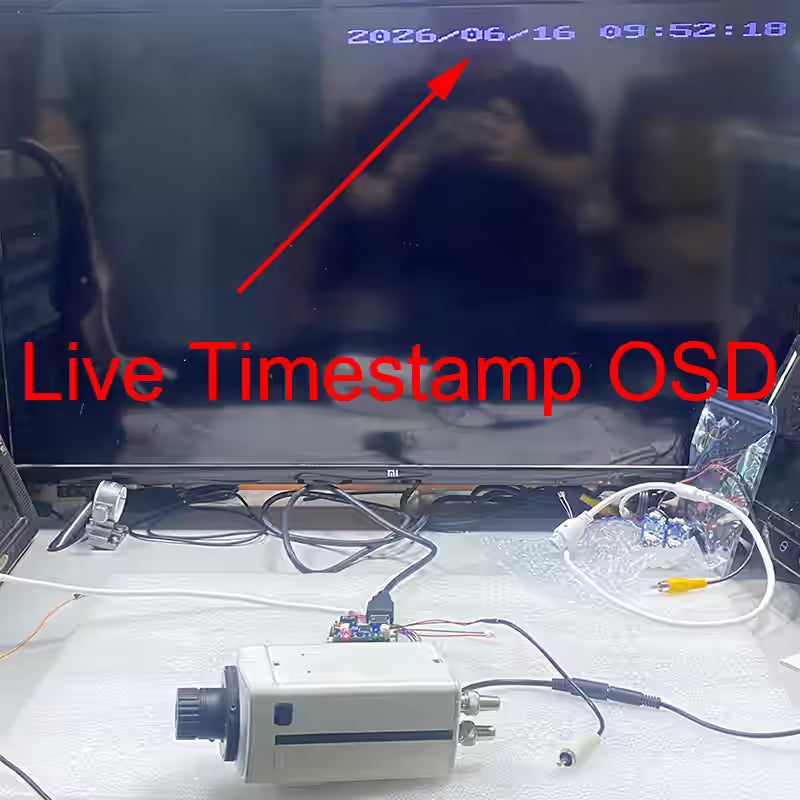

The default firmware can display a black screen with a continuously updating timestamp when no valid video is available. Custom firmware can also be developed to display simulated static noise, a company logo, warning messages, custom text or other OSD information.
Features
-
AV/CVBS analog video to HDMI conversion
-
Continuous HDMI output when the input video signal is lost
-
Helps avoid unwanted HDMI re-handshaking
-
No-signal display can be customized by firmware
-
Simulated static noise / snow effect available
-
Black screen or blue screen options
-
Customer logo and custom warning message support
-
Timestamp and custom OSD information
-
PAL / NTSC auto detection
-
Low-latency video conversion
-
OEM firmware customization available
-
Suitable for embedded video and system integration
Custom No-Signal Display
The converter can be configured according to your project requirements.
Available options include:
-
Static noise / snow effect
-
Black screen
-
Blue screen
-
Customer logo
-
"Video Signal Lost" warning message
-
Timestamp
-
Device ID
-
Custom text overlay
-
Custom OSD graphics
-
Special display logic
For OEM projects, we can discuss the required display behavior and develop firmware according to your application.
Important Note About Static Noise
The simulated static noise option should not be confused with the actual RF noise generated by an analog receiver.
When an analog RF video signal becomes weak, an FPV or analog monitor may still display real video with visible noise because part of the analog signal remains available.
If the receiver completely loses video synchronization, however, there is no original analog video signal available for the converter to reproduce.

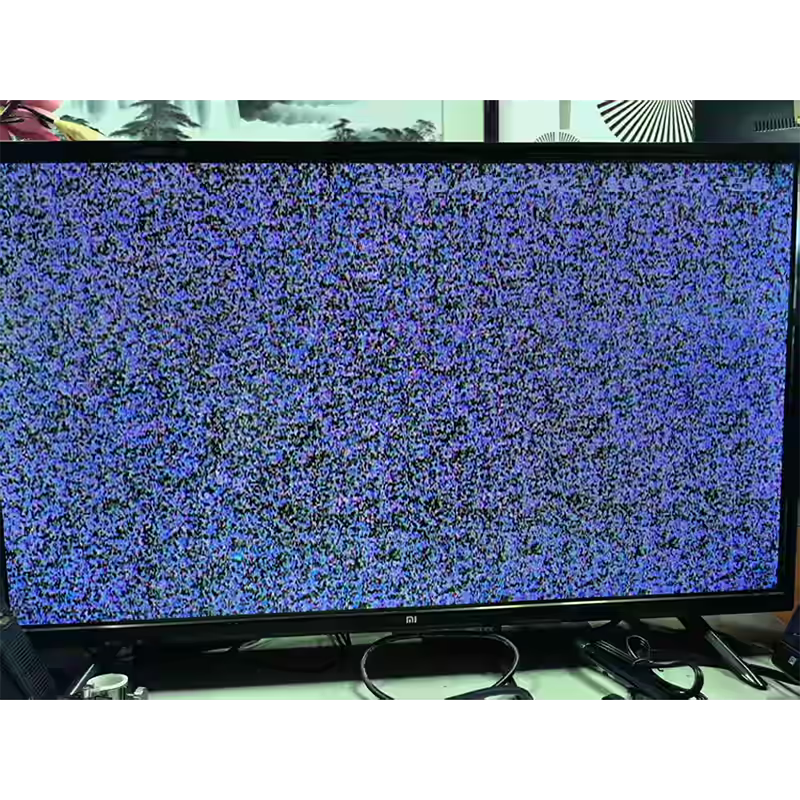

In this situation, the converter can display a simulated static pattern as a status indicator. When valid analog video returns, the converter can resume displaying the live video automatically.
Applications
This converter can be integrated into:
-
Analog video monitoring systems
-
Industrial video equipment
-
Embedded video systems
-
Video transmission systems
-
Analog camera systems
-
Remote monitoring equipment
-
Custom HDMI display systems
-
OEM video products
-
Video receiver and decoder systems
OEM / Custom Firmware
If your project requires a specific behavior when the AV signal is lost, we can customize the firmware.
For example, the HDMI display can be configured to show:
Live Video → Weak / Lost Signal → Static Noise / Black Screen / Logo / Warning → Live Video Recovery
Please contact us with your required input format, HDMI output requirements and desired no-signal behavior.
We can provide technical consultation and OEM firmware customization for volume projects.
Features
| Feature | Description |
|---|---|
| Continuous HDMI Output | Keeps HDMI output active when analog video is temporarily lost |
| Static Noise Mode | Optional simulated snow/static display |
| Custom Firmware | Customize the no-signal display behavior |
| Custom OSD | Timestamp, device ID, text and graphics |
| PAL / NTSC | Automatic analog video standard detection |
| OEM Support | Firmware customization for integration projects |
| Low Latency | Designed for real-time video conversion |
| Compact Converter Board | Suitable for embedded system integration |
Specifications
Product Model: DV2254
Input: Analog AV / CVBS video
Output: HDMI
Video Standard: PAL / NTSC auto detection
HDMI Output: Continuous output design
No-Signal Display: Black screen / simulated static noise / blue screen / custom display
OSD: Timestamp, device ID, custom text and graphics
Firmware: Custom firmware available
Application: Embedded video, video monitoring, video transmission and OEM integration
Customization: OEM / ODM firmware customization available
