CVBS to USB Video Capture Converter
OverView
Compact CVBS/AV to USB video capture converter for connecting analog cameras and video sources to PCs, Raspberry Pi, and other USB-enabled systems. Supports MJPEG video output, up to 800×600 resolution, 30 FPS, and low power consumption below 0.7W.
CVBS to USB Video Capture Converter

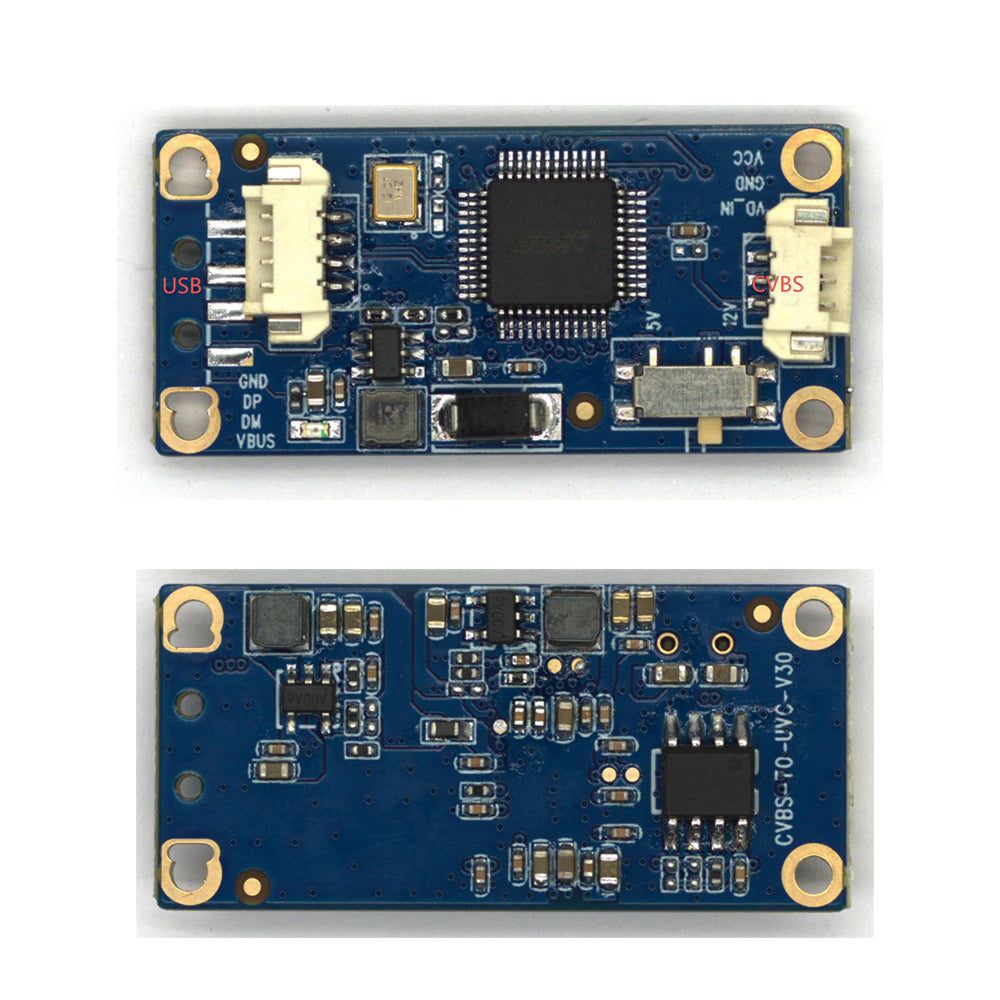

The CVBS to USB Video Capture Converter is a compact video conversion board designed to capture analog CVBS/AV video and output it through USB for computers and embedded systems.
It provides a simple way to connect analog cameras, CCTV cameras, FPV cameras, video equipment, and other composite video sources to a PC, Raspberry Pi, or compatible USB host.
With a compact 50 × 24 mm board size and power consumption below 0.7W, the converter is suitable for embedded projects, portable systems, video monitoring, testing, recording, and custom OEM applications.
Key Features
-
CVBS / AV analog video input
-
USB digital video output
-
Supports up to 800 × 600 resolution
-
30 FPS video capture with MJPEG output
-
MJPEG output by default
-
YUY2 output available on request
-
Compact 50 × 24 mm board
-
Low power consumption: <0.7W
-
Compatible with Windows and Linux systems
-
Suitable for Raspberry Pi and embedded applications
-
Supports still-image capture and video recording
-
OEM/ODM customization available
Video Format
The standard version uses MJPEG output.
YUY2 output can be provided for specific requirements. The YUY2 version operates at 25 FPS and is intended for Windows 10 systems.
Computer Compatibility
The converter is designed for use with common computer and embedded platforms.
Supported systems include:
-
Windows XP SP2 and later
-
Windows Vista
-
Windows 7
-
Windows 8
-
Windows 10
-
Linux
-
Raspberry Pi and other compatible embedded platforms
Most modern systems can recognize the device without additional drivers.
Compact Embedded Design
The converter board measures only 50 × 24 mm, making it easy to integrate into space-constrained equipment and custom electronic systems.
Its low power consumption of less than 0.7W also makes it suitable for portable and embedded applications.
Video Capture
The captured video can be viewed, recorded, or processed by compatible video software.
Typical applications include:
-
Analog camera monitoring
-
CCTV video capture
-
Industrial inspection
-
Robotics
-
Embedded computer vision
-
Raspberry Pi projects
-
Video archiving
-
Analog camera testing
-
Live video monitoring
-
Custom OEM video systems
OEM / ODM Customization
For volume projects, iVcan can provide customization according to application requirements, including hardware interfaces, cable configuration, video format, connectors, and other functional requirements.
Contact us with your required input signal, output interface, resolution, frame rate, and application requirements for an engineering evaluation.
| Specification | Details |
|---|---|
| Model | DV2148 |
| Video Input | CVBS / AV |
| Video Output | USB |
| Maximum Resolution | 800 × 600 |
| Supported Resolution | 800 × 600, 640 × 480 |
| Frame Rate | Up to 30 FPS |
| Default Video Format | MJPEG |
| Optional Format | YUY2 |
| YUY2 Frame Rate | 25 FPS |
| Board Size | 50 × 24 mm |
| Power Consumption | <0.7W |
| Flash Control | 50Hz / 60Hz |
| Still Image Format | BMP / JPG |
| Video Recording Format | AVI / WMV |
| Operating Temperature | -10°C to +75°C |
| System Compatibility | Windows, Linux |
| Customization | Available |
Important:
The default version outputs video in MJPEG format.
If you require YUY2 output, please contact us before ordering. The YUY2 version operates at 25 FPS and is intended for Windows 10 systems.
