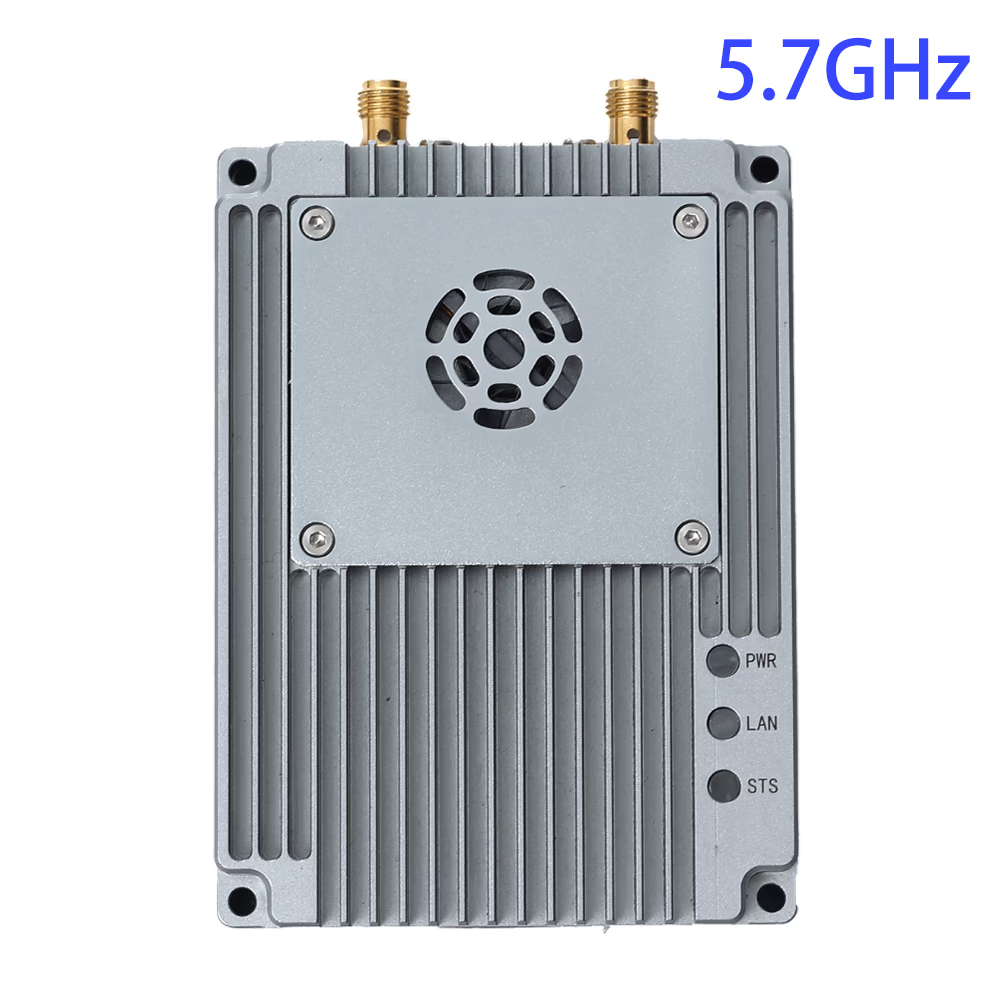

Drone UAV 5.7GHz OEM VTX Module – 1W Video Transmitter
Overview
The Drone UAV 5.7GHz OEM VTX Module is a customizable wireless video transmitter designed for drone manufacturers, robotics developers, and industrial video transmission systems. Operating in the 5650–5755 MHz frequency range, it supports up to 1W (30 dBm) RF output power and offers configurable OFDM digital or analog FM transmission options.
Designed for OEM and ODM integration, this module supports customized interfaces, power configurations, and hardware or firmware development to meet specific project requirements. Japan MIC compliance-oriented frequency configuration and engineering support are available for projects targeting the Japanese market.
Key Features
• 5.7GHz Operating Band: Covers 5650–5755 MHz for specialized wireless video transmission applications.
• Up to 1W RF Output: Provides a maximum conducted output power of 30 dBm, with configurable lower power options.
• Flexible Modulation: Supports OFDM digital transmission or analog FM, depending on the selected configuration.
• Multiple Bandwidth Options: Supports 4.5 MHz, 9 MHz, and 19.7 MHz bandwidth configurations.
• Configurable Channel Spacing: Supports 5 MHz, 10 MHz, and 20 MHz channel spacing options.
• OEM/ODM Customization: Hardware, firmware, interfaces, and module design can be tailored to project requirements.
• Integration-Friendly Interfaces: UART, SPI, and video input options are available subject to the selected configuration.
• Engineering Support: Assistance is available for system integration, pre-compliance evaluation, and certification-related development.
Technical Specifications
Product Type: OEM Wireless Video Transmitter (VTX) Module
Product SKU: 2149-5.7G
Frequency Range: 5650–5755 MHz
Frequency Control: Fixed / locked configuration
Maximum RF Output Power: Up to 1 W (30 dBm)
Modulation: OFDM digital / analog FM, configuration dependent
Bandwidth: 4.5 MHz / 9 MHz / 19.7 MHz
Channel Spacing: 5 MHz / 10 MHz / 20 MHz
Power Supply: Customizable; confirm voltage and current requirements before ordering
Interfaces: UART / SPI / video input, depending on configuration
Operating Temperature: -10°C to +60°C; extended range may be available by request
Form Factor: Custom module design
Customization: RF parameters, interfaces, hardware, firmware, and mechanical design
Certification Support: Japan MIC-related engineering support
Applications
• UAV and Drone Systems: Wireless FPV video links, aerial inspection, surveying, and remote monitoring.
• Robotics: Video feedback for remotely operated robots and autonomous platforms.
• Industrial Monitoring: Wireless video links for equipment inspection and remote diagnostics.
• Security and Surveillance: Integration into compatible wireless video monitoring systems.
• Engineering and R&D: RF development, prototype evaluation, and custom communication system projects.
• OEM Equipment: Integration into specialized video transmission products and embedded systems.
Customization Options
RF Configuration
Customize fixed frequency channels, output power settings, and antenna interface according to the intended application and applicable regulations.
Video and Control Interfaces
Discuss available video input, UART, SPI, and other interface requirements with our engineering team before ordering.
Hardware and Firmware
OEM/ODM services may include custom PCB design, embedded firmware development, thermal management, and mechanical integration.
Certification Support
Engineering assistance for pre-compliance testing, documentation, and Japan MIC-related certification processes can be discussed for the target product configuration.
Frequently Asked Questions
Q1: What is the maximum output power?
A: The module supports up to 1 W (30 dBm) conducted RF output power. Actual settings depend on the selected configuration and applicable regulations.
Q2: Does the module support digital and analog video transmission?
A: OFDM digital and analog FM options are listed. Confirm the required modulation type and compatible video input before placing an order.
Q3: Can the operating frequency be customized?
A: The listed configuration uses a fixed or locked frequency setting within 5650–5755 MHz. Available channel configurations should be confirmed with the supplier.
Q4: What bandwidth options are available?
A: The listed options are 4.5 MHz, 9 MHz, and 19.7 MHz. Compatibility with the selected channel spacing and modulation should be verified.
Q5: Is the module suitable for OEM integration?
A: Yes. The product is designed for OEM/ODM projects, with customization options for interfaces, hardware, firmware, and module design.
Q6: Is Japan MIC certification guaranteed?
A: No blanket certification guarantee should be assumed. Certification depends on the exact hardware, operating configuration, test results, and applicable Japanese requirements. Confirm the available documentation and approval status before deployment.
Q7: What power supply does the module require?
A: The power supply is customizable. Please confirm the required voltage, current, connector, and power consumption for your chosen configuration.
Q8: Can this module be used outside Japan?
A: Use depends on local spectrum regulations, permitted frequency channels, output power, and equipment approval requirements. Verify local compliance before operation.
