HDMI/CVBS/UVC to IP Encoder Board – Ultra-Low Latency H.265/H.264

Product Overview

The DV1746 series encoder board is a compact, ultra-low latency video encoding solution designed for UAVs, robotics, unmanned vehicles, and wireless video transmission systems. Supporting HDMI, CVBS AV, 3G-SDI, AHD and USB UVC camera inputs, it converts analog or digital video into IP streams over Ethernet (RTSP/UDP), making it ideal for integration with COFDM transmitters or IP-based networks.

Key Advantages

• Ultra-Low Latency – Real-time H.265/H.264 encoding, as low as 30–90 million second.

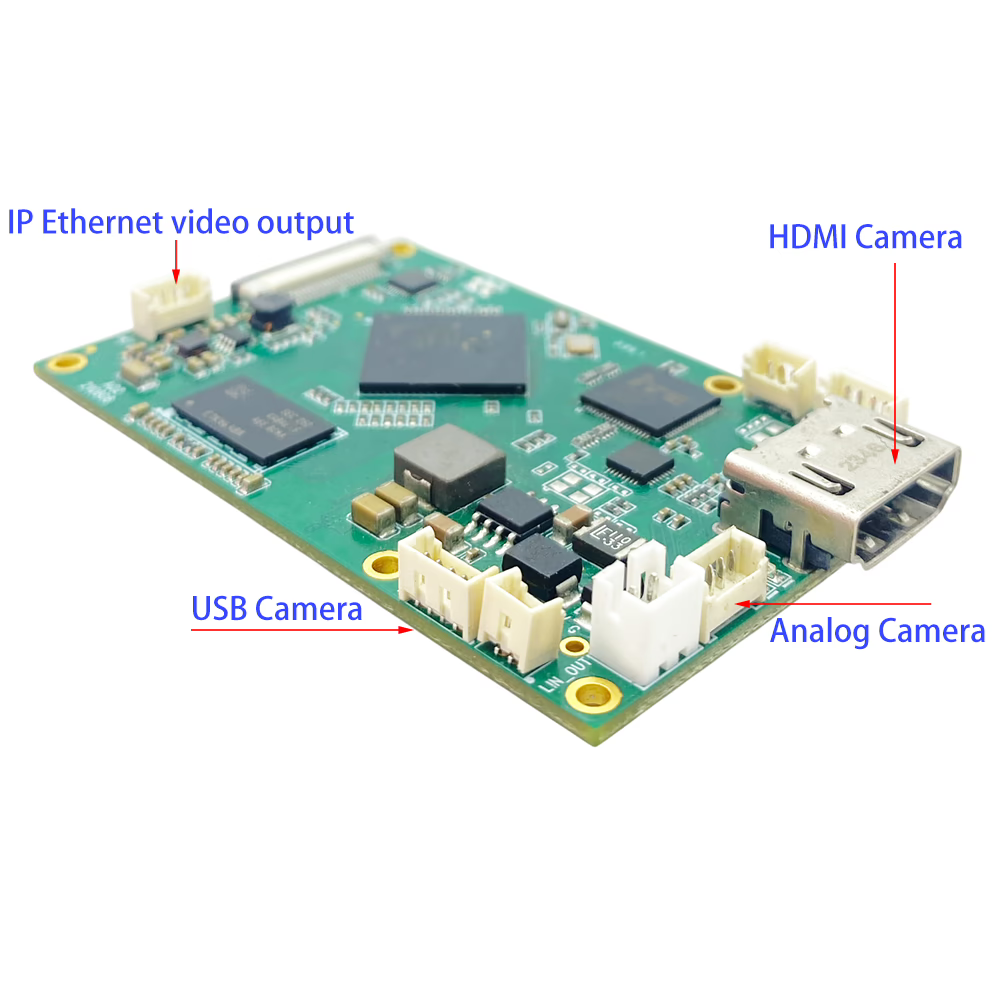

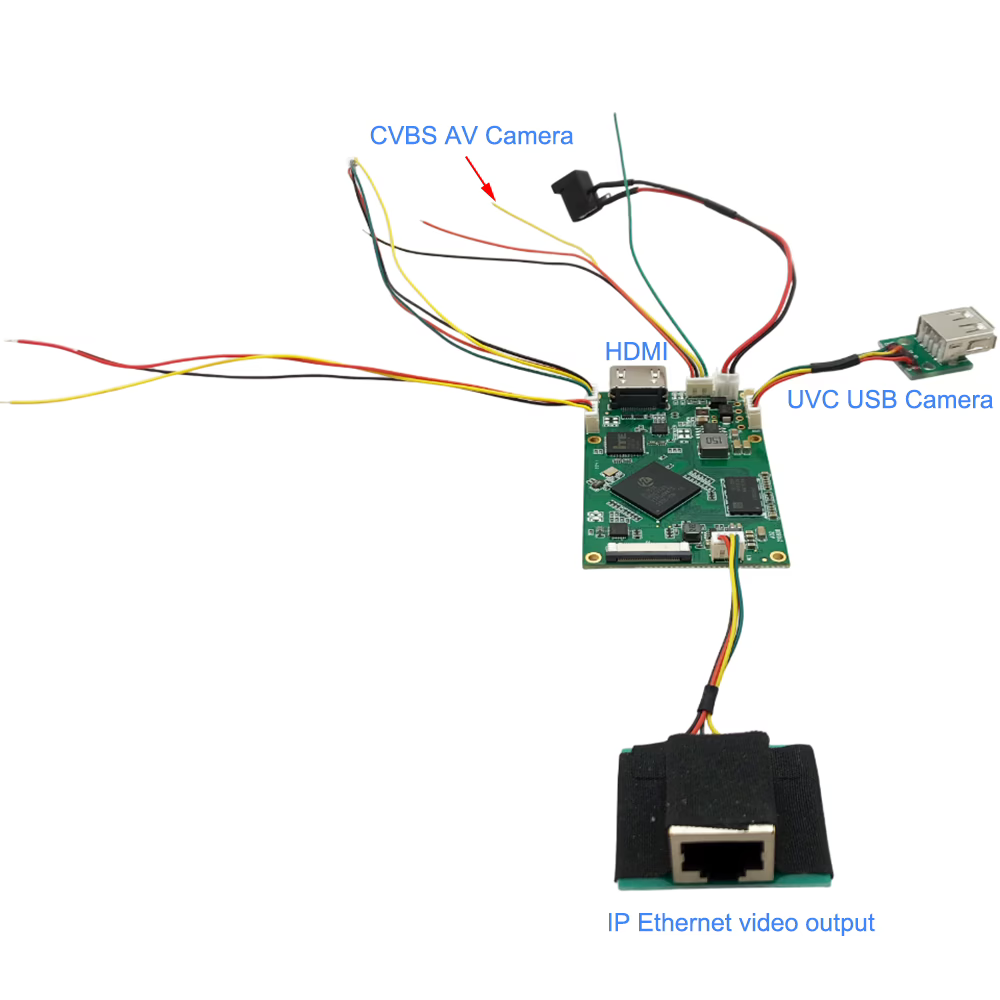

• Multi-Input Support – HDMI, CVBS AV composite, SDI, AHD, and UVC USB camera video inputs.

• Dual Encoding – HDMI and CVBS dual video stream encoding supported simultaneously.

• Flexible Audio – Two audio inputs (HDMI or CVBS), switchable via AT command.

• Easy Management – Configuration via Web UI or UART AT commands.

• Compact & Lightweight – PCB size 70 × 45 mm, weight only 20.6 g.

• Wide Power Range – 7–30V input, low power consumption (<2.5W).

Applications

• UAV / Drone video transmission

• Robotic vision systems

• Unmanned ground or underwater vehicles

• COFDM wireless video links

• IP video integration projects

Technical Specifications

• Video Encoding: H.265 / H.264, up to 1080p60

• Audio Encoding: AAC, Line-in / Mic-in supported

• Outputs: RJ45 Ethernet (100 Mbps)

• Control: Web UI, UART (AT command)

• Operating Temperature: -40°C to +85°C

• Power Supply: 7–30V DC, reverse polarity protection

• Size & Weight: 70 × 45 × 1.2 mm, 20.6 g

Customization Options

• Custom firmware & encoding formats

• USB video recording support

• Special dimensions or interfaces

• Integration with third-party decoder boards

Contact us for OEM/ODM customization or project-specific solutions.
