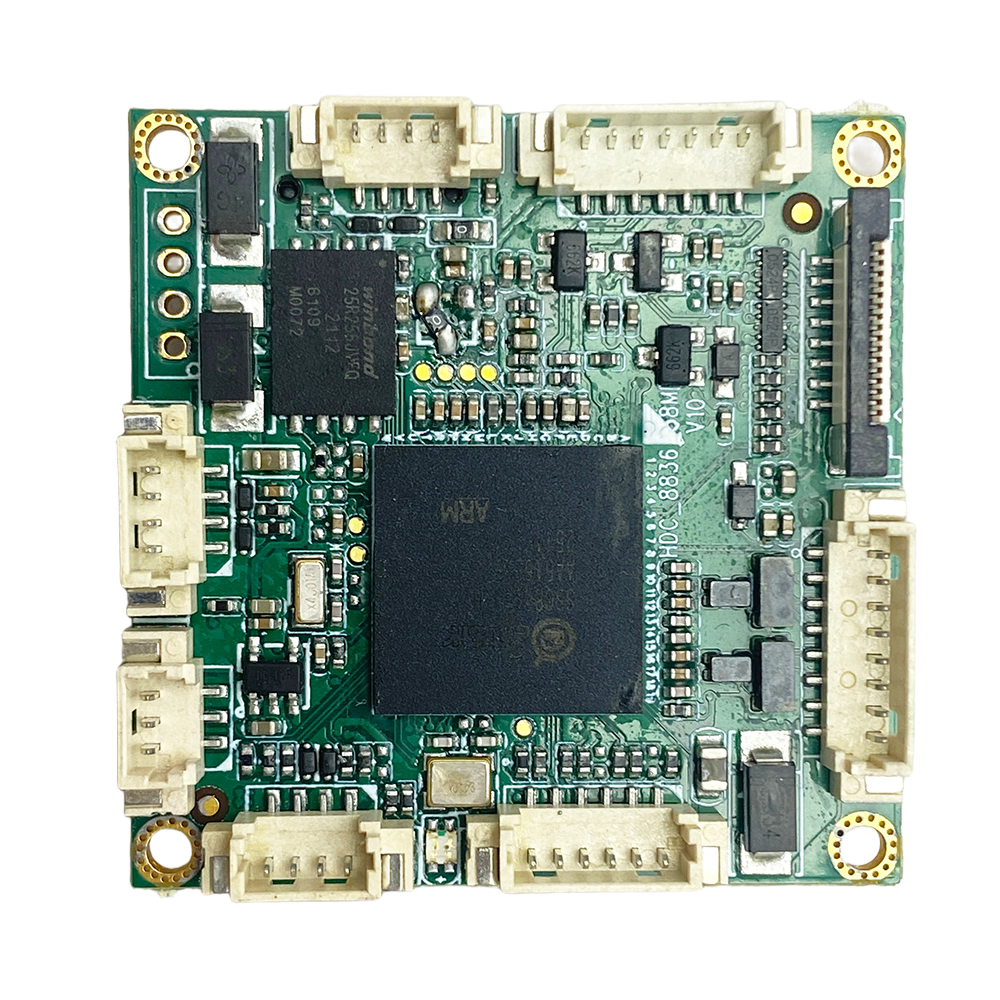

IP Ethernet to HDMI CVBS Video Decoder Board – Low-Latency RTSP Decoding
OVERVIEW
The IP Ethernet to HDMI CVBS Video Decoder Board is a compact video decoding solution for real-time video transmission, monitoring, and embedded display applications. It receives IP video streams over Ethernet and decodes H.264/H.265 video for HDMI and CVBS displays. HDMI output supports up to 1080p at 60fps.
KEY FEATURES
• Low-latency RTSP hardware decoding
• Simultaneous HDMI and CVBS video output
• H.264/H.265 decoding
• HDMI output up to 1920 × 1080 at 60fps
• Compact 38 × 38 mm mainboard
• Two-way audio, OSD, image capture, motion and human detection
• 10/100 Mbps Ethernet
• Optional USB-based Wi-Fi, 4G or 5G expansion
• DC 6–12V input; optional PoE configuration
• Operating temperature: -20°C to +70°C
TECHNICAL SPECIFICATIONS
Model: Vcan2180
Processor: ARM Cortex-A7
Computing capability: Up to 0.5T, as specified by the manufacturer
Video decoding: H.264/H.265
HDMI: 1920 × 1080 @ 60fps; 1280 × 720 @ 60fps; 1280 × 1024 @ 30fps
CVBS: 1280 × 720 @ 30fps; 640 × 360
Audio codecs: G.711/AAC
Ethernet: 1 × RJ45, 10/100 Mbps
USB: 1 × USB interface
Protocols: TCP/IP, IPv4, RTSP, HTTP, DHCP, NTP, RTMP, MQTT, WebRTC
Power: DC 6–12V; optional PoE
Operating temperature: -20°C to +70°C
Dimensions: 38 × 38 mm
Weight: Approximately 10.9 g
APPLICATIONS
UAV ground stations, wireless video links, security surveillance, industrial inspection, machine vision, smart transportation, IoT monitoring, broadcast decoding, and embedded display systems.
INTERFACE EXPANSION
An optional expansion board provides Ethernet, HDMI, USB, Type-C, and CVBS connections. Confirm package contents before ordering.
CUSTOMIZATION
OEM/ODM options may include AI algorithms, PCB layout, USB UVC functionality, firmware, private protocols, and SDK integration.
FAQ
Q: Does it support HDMI and CVBS simultaneously?
A: Yes, according to the manufacturer.
Q: Which video formats are supported?
A: H.264 and H.265. Compatibility depends on the source stream settings.
Q: Can it decode multiple RTSP streams?
A: The manufacturer documents up to four streams with combined multi-view display. Confirm firmware and configuration before ordering.
Q: Can Wi-Fi, 4G or 5G be added?
A: Optional USB-based expansion may be available depending on the module and configuration.
Q: Is PoE included?
A: PoE is an optional configuration; confirm before purchase.
