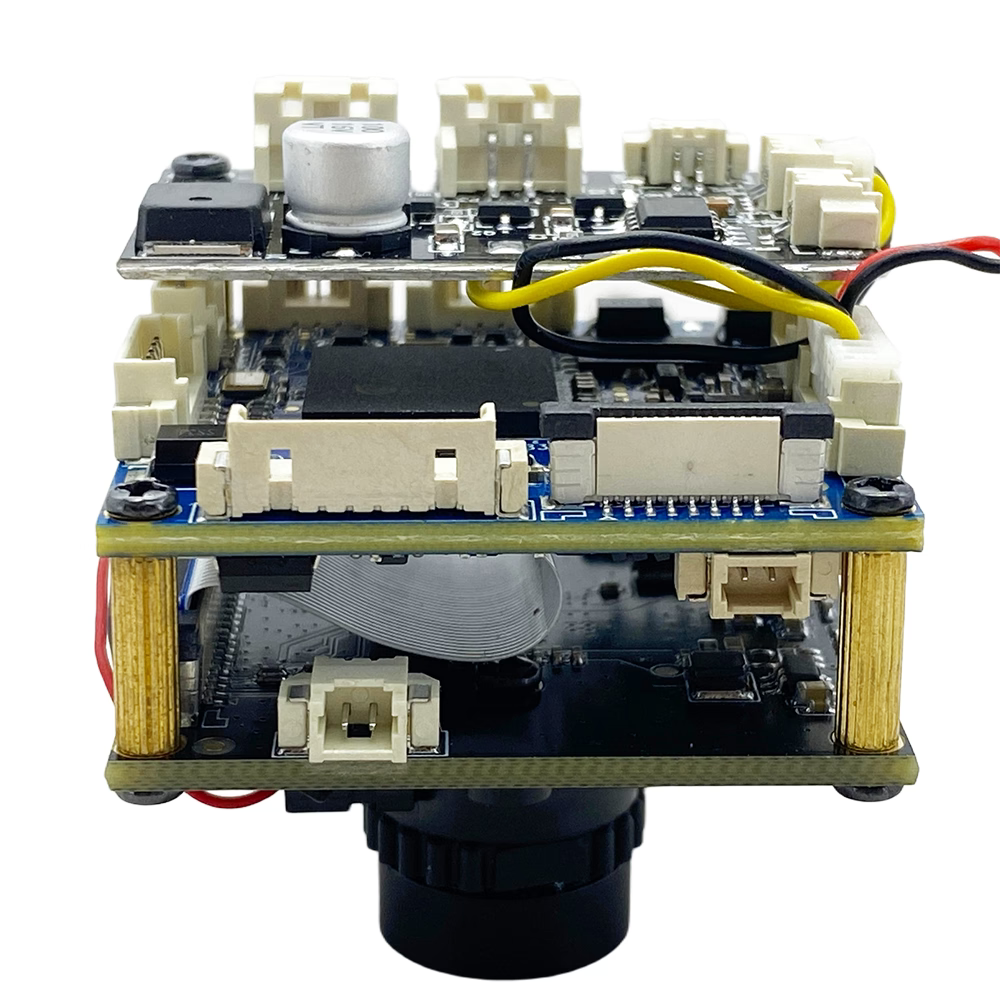

IPC 8MP 4K Ultra HD Network Camera Module with Sony IMX415
OVERVIEW
The IPC-2188 is an embedded 4K network camera module for OEM manufacturers, system integrators, and developers. It features a Sony IMX415 1/2.8-inch CMOS sensor, 8MP resolution, video up to 3840 × 2160 at 30 fps, H.265/H.264 encoding, RTSP, ONVIF, PoE, two-way audio, and an integrated 0.5 TOPS AI NPU. Its compact 38.8 × 38.8 mm PCB supports embedded vision integration.
KEY FEATURES
• 8MP 4K imaging with Sony IMX415
• H.265/H.264 encoding, adjustable 0.1–8 Mbps bitrate
• 0.5 TOPS AI NPU for supported intelligent analytics
• RTSP, ONVIF, TCP/IP, HTTP, MQTT, WebRTC, GB28181, and P2P
• PoE and DC 6–24 V power options
• Two-way audio support
• Optional Wi-Fi / 4G expansion
• TF card slot supports up to 256 GB
• Compact 38.8 × 38.8 mm PCB
• OEM/ODM customization options
SPECIFICATIONS
Model: IPC-2188
Image sensor: Sony IMX415, 1/2.8-inch CMOS
Resolution: 8 MP
Maximum video: 3840 × 2160 at 30 fps
Additional resolutions: 2560 × 1440 at 30 fps; 1920 × 1080 at 30 fps
Compression: H.265 / H.264
Bitrate: 0.1–8 Mbps
Frame rate: 1–30 fps
Processor: ARM Cortex-A7, SigmaStar SSC8836
AI NPU: 0.5 TOPS
Ethernet: 1 × RJ45, 10/100 Mbps
Audio: G.711 / AAC, two-way audio
Interfaces: USB, TF card slot, TTL serial, reset button, microphone input, line output
Power: DC 6–24 V; PoE supported
Operating temperature: -20°C to +70°C
PCB size: 38.8 × 38.8 mm
APPLICATIONS
Smart surveillance, UAVs, unmanned vehicles, robotics, industrial inspection, machine vision, video conferencing, IoT devices, and OEM camera development.
CUSTOMIZATION
Custom PCB dimensions, firmware, UI, AI algorithms, USB expansion, protocol integration, SDK customization, and private labeling may be available.
FAQ
Q: Does it support 4K? A: Yes, up to 3840 × 2160 at 30 fps.
Q: Does it support ONVIF? A: Yes, ONVIF and RTSP are supported; confirm compatibility with your specific system.
Q: Does it support PoE? A: Yes, and DC 6–24 V input is also supported. Confirm the required PoE configuration before installation.
Q: Is AI built in? A: Yes, it includes a 0.5 TOPS NPU; available functions depend on firmware.
Q: Are Wi-Fi and 4G included? A: They are optional expansions and depend on the selected configuration.
Q: What is the maximum TF card capacity? A: Up to 256 GB.
Q: Is OEM customization available? A: Yes, customization can be discussed for qualified projects.
CONFIGURATION NOTES
This is an embedded camera module, not a finished consumer security camera. Optional Wi-Fi, 4G, P2P, microphone, and speaker features depend on the selected version. Confirm accessories, firmware, interfaces, and compatibility before ordering.
