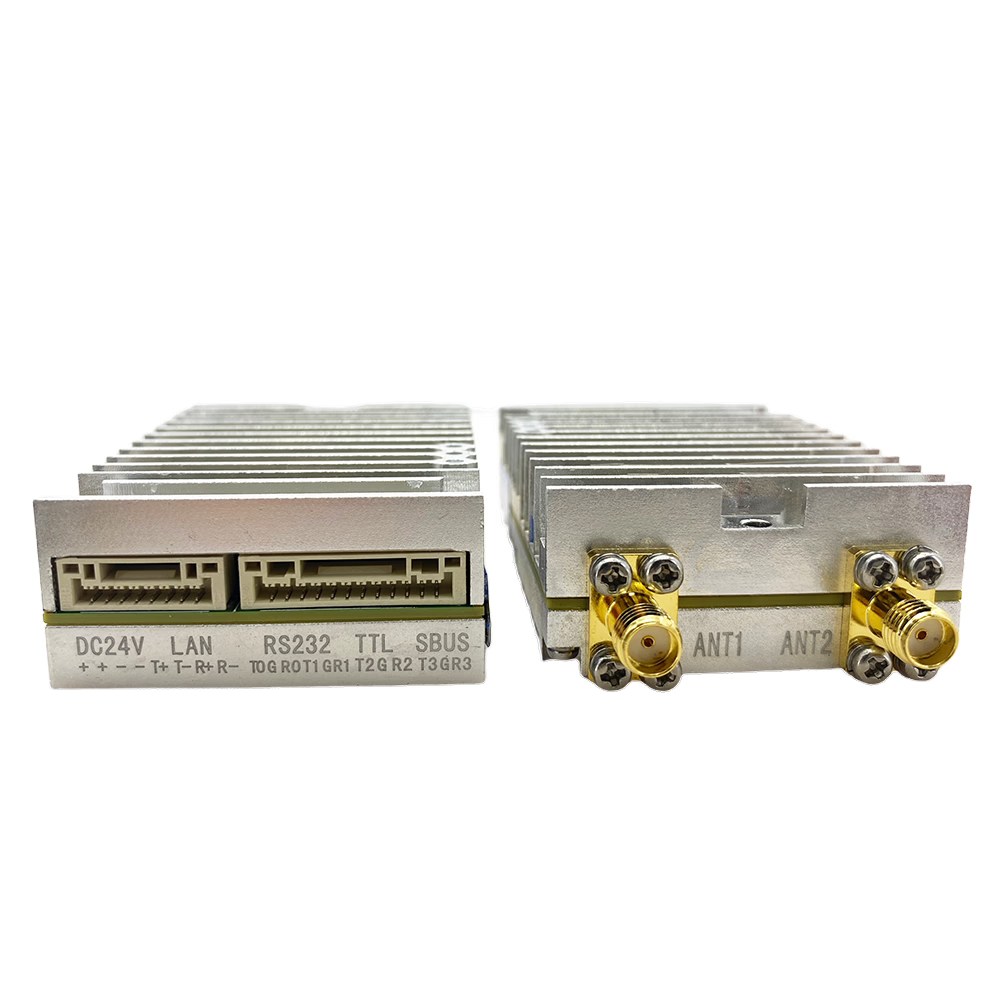

This long-range SDR mesh radio is designed for wireless data communication where multiple devices need to communicate over extended distances.
It supports self-organizing mesh networking, multi-hop communication, and up to 256 network nodes, making it suitable for mobile, industrial, robotics, remote monitoring, and other wireless communication systems.
Unlike a simple point-to-point radio link, the mesh architecture allows network nodes to communicate with each other and forward data through multiple communication paths.
Key Features
-
SDR-based wireless communication for flexible frequency and bandwidth configurations
-
Mesh networking with self-organizing and multi-hop communication
-
Up to 256 nodes in the same network
-
Long-range wireless communication depending on frequency, antenna, RF power, terrain, and line-of-sight conditions
-
Configurable bandwidth from 1.25 MHz to 20 MHz, depending on the selected version
-
Frequency options from approximately 635 MHz to 2500 MHz, depending on hardware configuration
-
RF output power options from approximately 27 dBm to 46 dBm
-
Ethernet interface for IP data communication
-
RS232 and TTL interfaces for serial equipment
-
Optional SBUS interface for control-system integration
-
AES256 encryption for wireless data transmission
-
IP20 and IP65 hardware options for different installation environments
Multi-Node Mesh Networking
Each radio can operate as a network node.
Nodes can communicate directly when they are within wireless range. When a direct connection is not available, other nodes can forward data through the mesh network.
This multi-hop architecture can help extend communication coverage without requiring every node to maintain a direct connection with the main station.
The actual communication range depends on:
-
Operating frequency
-
RF output power
-
Antenna gain
-
Antenna installation height
-
Terrain and obstacles
-
Radio interference
-
Line-of-sight conditions
For long-range projects, we recommend testing the complete radio and antenna configuration in the actual operating environment.
Multiple Interfaces
The radio provides several interfaces for connecting computers, controllers, cameras, embedded systems, and other equipment.
| Interface | Typical Application |
|---|---|
| Ethernet | IP data, computers, network equipment, IP devices |
| RS232 | Serial devices and industrial controllers |
| TTL | Embedded controllers and custom electronics |
| SBUS | Remote-control and control-system integration |
Technical Specifications
| Parameter | Specification |
|---|---|
| Radio Technology | SDR Mesh Radio |
| Network Type | Mesh / Multi-Hop |
| Maximum Network Nodes | Up to 256 nodes |
| Frequency Range | Approx. 635–2500 MHz, depending on version |
| Bandwidth | 1.25–20 MHz, depending on version |
| RF Output Power | Approx. 27–46 dBm, depending on version |
| Network Interface | Ethernet |
| Serial Interfaces | RS232 / TTL |
| Control Interface | Optional SBUS |
| Encryption | AES256 |
| Housing Options | IP20 / IP65 |
Typical Applications
This SDR mesh radio can be used in a wide range of wireless communication projects, including:
-
Long-range industrial wireless communication
-
Mobile robotics
-
Autonomous systems
-
Remote monitoring and control
-
UAV and unmanned systems
-
Industrial automation
-
Remote equipment networking
-
Emergency and temporary communication networks
-
Multi-node IP data communication
-
Custom wireless communication systems
Custom Frequency and Hardware Options
Different projects may require different operating frequencies, RF output power, bandwidth, interfaces, or enclosure configurations.
We can discuss customized configurations according to your application and project requirements.
When requesting a quotation, please provide:
-
Required frequency or frequency range
-
Required communication distance
-
Number of network nodes
-
Required RF output power
-
Required bandwidth
-
Ethernet / RS232 / TTL / SBUS requirements
-
Indoor, outdoor, vehicle, or embedded installation
-
Estimated order quantity
Long-Range Communication
The maximum communication distance is highly dependent on the installation environment.
Open line-of-sight conditions, antenna height, antenna gain, RF output power, receiver sensitivity, and interference can significantly affect the actual communication range.
For long-range applications, we recommend confirming the frequency, antenna configuration, RF power, and network topology before ordering.
Sample testing can also be arranged for project evaluation.
Why Choose DVCAN?
DVCAN supplies wireless communication modules and video/data transmission equipment for industrial and embedded applications.
We can provide:
-
Standard radio modules
-
Different frequency configurations
-
Different RF power options
-
Ethernet and serial interfaces
-
OEM hardware configurations
-
Project-based customization
-
Sample testing before volume orders
If you are not sure which frequency, RF power, antenna, or hardware version is suitable for your project, contact us before ordering.
We can check the available configuration and recommend a suitable solution.
FAQ
Can the radio communicate with multiple nodes?
Yes. The system supports mesh networking and can support up to 256 nodes depending on the network configuration.
Can the network use multiple hops?
Yes. Multi-hop communication is one of the main features of the mesh architecture and can be used to extend network coverage through intermediate nodes.
Can the operating frequency be customized?
Frequency options depend on the hardware version and project requirements. Please contact us with your required frequency before ordering.
Does it support Ethernet?
Yes. Ethernet is available for IP data communication and connection to computers or other network devices.
Does it support serial communication?
Yes. RS232 and TTL interfaces are available depending on the selected configuration.
Can it work with an SBUS control system?
An optional SBUS interface is available for applications requiring integration with compatible remote-control or control systems.
What is the maximum communication distance?
The achievable range depends on frequency, RF power, antennas, terrain, interference, and line-of-sight conditions.
For a specific distance requirement, please contact us with your operating environment and antenna information.
Can you provide OEM or customized versions?
Yes. Frequency, RF power, interfaces, enclosure, and other hardware configurations may be customizable depending on the project and order quantity.
Request a Quote
For project orders, OEM requirements, or frequency customization, please contact us with:
Frequency + Communication Distance + Number of Nodes + Required Interfaces + Quantity
If you are unsure which configuration to choose, contact DVCAN before ordering and we can check the available hardware options for your project.
