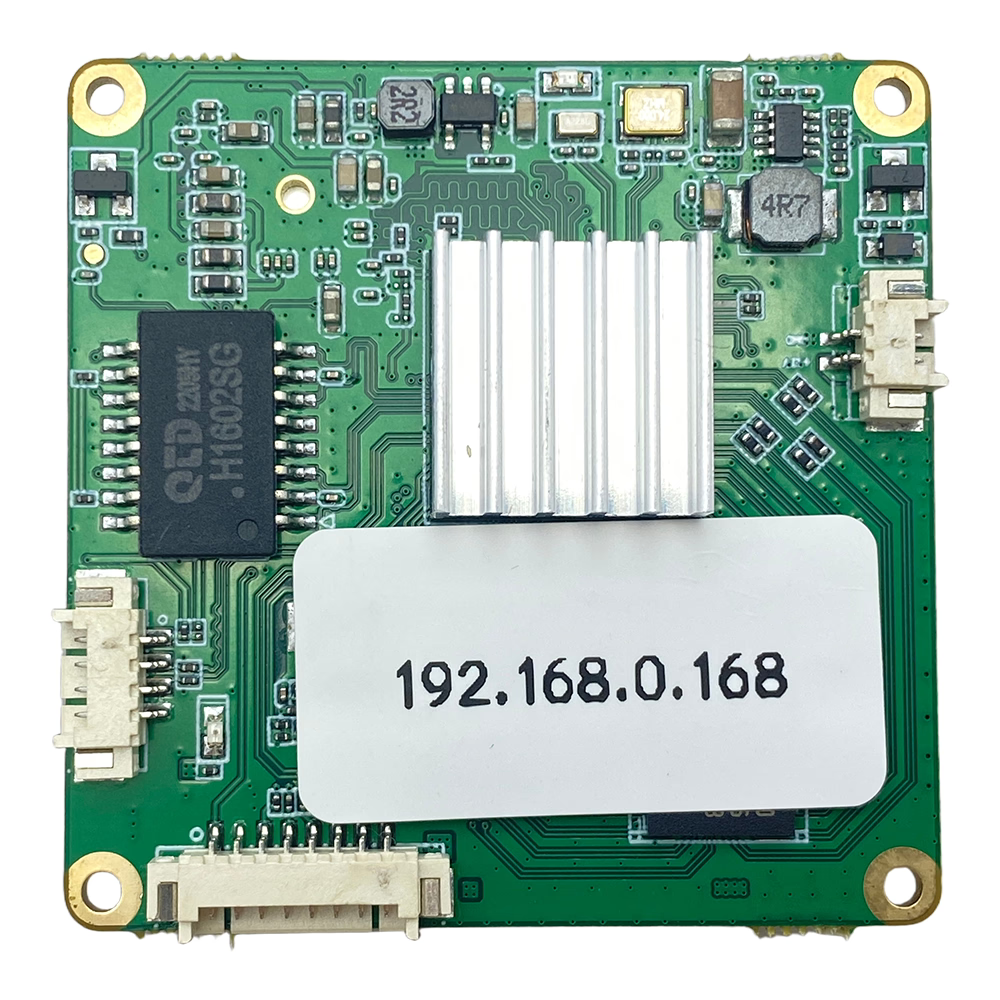

Mini CVBS / AV / AHD to IP Video Encoder – H.264/H.265 Hardware Streaming Board
Overview
The Mini CVBS / AV / AHD to IP Video Encoder is a compact hardware solution that converts analog video signals into digital IP network streams. Designed for live streaming, video surveillance, embedded systems, and remote monitoring, it combines efficient H.264/H.265 encoding with a compact PCB design for easy integration into space-constrained equipment.
Supporting video encoding up to 1920 × 1080 at 60 frames per second, this encoder delivers smooth video transmission while helping optimize network bandwidth. Its compatibility with CVBS, AV, and AHD video sources makes it suitable for a wide range of analog camera systems.
With a 45 × 45 mm board size, a 100 Mbps Ethernet interface, and a wide operating temperature range, this module is designed for professional applications that require compact size, reliable operation, and flexible system integration.
Key Features
• Multi-Format Analog Video Input: Supports CVBS, AV, and AHD camera signals, with automatic PAL/NTSC detection for compatible input sources.
• H.264 / H.265 Hardware Encoding: Efficient video compression with a maximum supported resolution of 1920 × 1080 at 60 FPS.
• Compact PCB Design: Approximately 45 × 45 mm, making it suitable for embedded devices and space-limited installations.
• 100 Mbps Ethernet Connectivity: Provides a wired network interface for IP video transmission.
• Network Protocol Support: Supports TCP, UDP, RTSP, RTCP, and ONVIF for integration with compatible network video systems.
• Low-Latency Video Processing: Hardware de-interlacing helps reduce interlacing artifacts and improve motion clarity.
• AV/CVBS Loop-Through Output: Enables local video monitoring where supported by the configuration.
• Serial and I/O Interfaces: Includes a UART interface, USB interface, and additional I/O connections for system integration.
• Wide Input Voltage Options: Supports 5–24 V input configurations; confirm the required voltage version before ordering.
• Industrial Operating Temperature: Designed to operate from -40°C to +80°C.
• Built-In Protection: Includes over-voltage, over-current, short-circuit, and ESD protection.
• Optional Hardware Encryption: An encryption chip can be integrated for applications requiring additional data protection.
• Firmware Upgrade Support: Firmware can be updated using a USB drive according to the supported configuration.
Technical Specifications
Product Type: Miniature analog-to-IP video encoder board
Model / SKU: Vcan2198
Video Inputs: CVBS / AV / AHD
Video Compression: H.264 / H.265
Maximum Encoding Resolution: Up to 1920 × 1080 at 60 FPS
Network Interface: 100 Mbps Ethernet
Network Protocols: TCP, UDP, RTSP, RTCP, ONVIF
Power Input: 5–24 V, depending on configuration
Ethernet Connection: 4-pin, 1.25 mm connector; TX+, TX-, RX+, RX-, and GND signals are specified for the interface
Additional Interfaces: 1 × UART, 1 × USB, multiple I/O ports
Video Loop Output: AV/CVBS, subject to configuration
Board Dimensions: Approximately 45 × 45 mm
Operating Temperature: -40°C to +80°C
Protection: Over-voltage, over-current, short-circuit, and ESD protection
Hardware Encryption: Optional
Firmware Update: USB-based update supported
Note: Confirm the input voltage, connector pinout, supported AHD input resolution, and required firmware configuration before installation.
Applications
• IP Video Surveillance and Security Systems
• Analog Camera to IP Network Conversion
• Live Streaming and Remote Video Monitoring
• UAV and Drone Video Systems
• Robotics and Embedded Vision Equipment
• Vehicle and Transportation Monitoring
• Industrial Inspection and Machine Vision
• Portable Video Recording Systems
• Remote Inspection and Control Equipment
• Custom Video Transmission and OEM/ODM Projects
Configuration and Integration
The encoder can be configured using the compatible HDIPCameraTool software. Network settings and stream parameters should be configured according to your system requirements and the supplied firmware version.
For integration with an NVR, streaming server, or custom application, verify protocol compatibility, network addressing, video format, and decoding support before deployment.
Customization Options
• Customized Input Voltage
• Firmware and Software Interface Customization
• Branding and OEM/ODM Services
• Network Protocol Optimization
• Optional Hardware Encryption
• Connector and PCB Design Modifications
• Batch Configuration for Project Deployment
Contact us to confirm feasibility, minimum order quantities, and lead times for customized versions.
FAQ
Q1: What video inputs does this encoder support?
A: It supports CVBS, AV, and compatible AHD analog video sources. Confirm the exact input format and resolution required for your camera.
Q2: Does it support Full HD video?
A: The listed maximum encoding capability is up to 1920 × 1080 at 60 FPS. Actual performance depends on the input format and configuration.
Q3: Which video compression formats are available?
A: H.264 and H.265 encoding are supported.
Q4: Can I connect the encoder to an NVR?
A: The encoder supports ONVIF and common network protocols. Compatibility depends on the NVR model, firmware, and stream configuration.
Q5: Does it support PAL and NTSC?
A: Automatic PAL/NTSC detection is supported for compatible analog video inputs.
Q6: What power supply is required?
A: The listed input range is 5–24 V, depending on the version. Confirm the correct voltage and connector pinout before powering the board.
Q7: Is the encoder suitable for continuous operation?
A: It is designed for industrial applications and lists an operating temperature range of -40°C to +80°C. Adequate power, ventilation, and installation conditions are still required.
Q8: Can the firmware or hardware be customized?
A: Custom firmware, interfaces, connectors, and other OEM/ODM options may be available. Contact us with your technical requirements.
Q9: Is the product supplied as a complete enclosure?
A: This product is described as a compact encoder board. Confirm the included accessories, enclosure, cables, and power supply before ordering.
