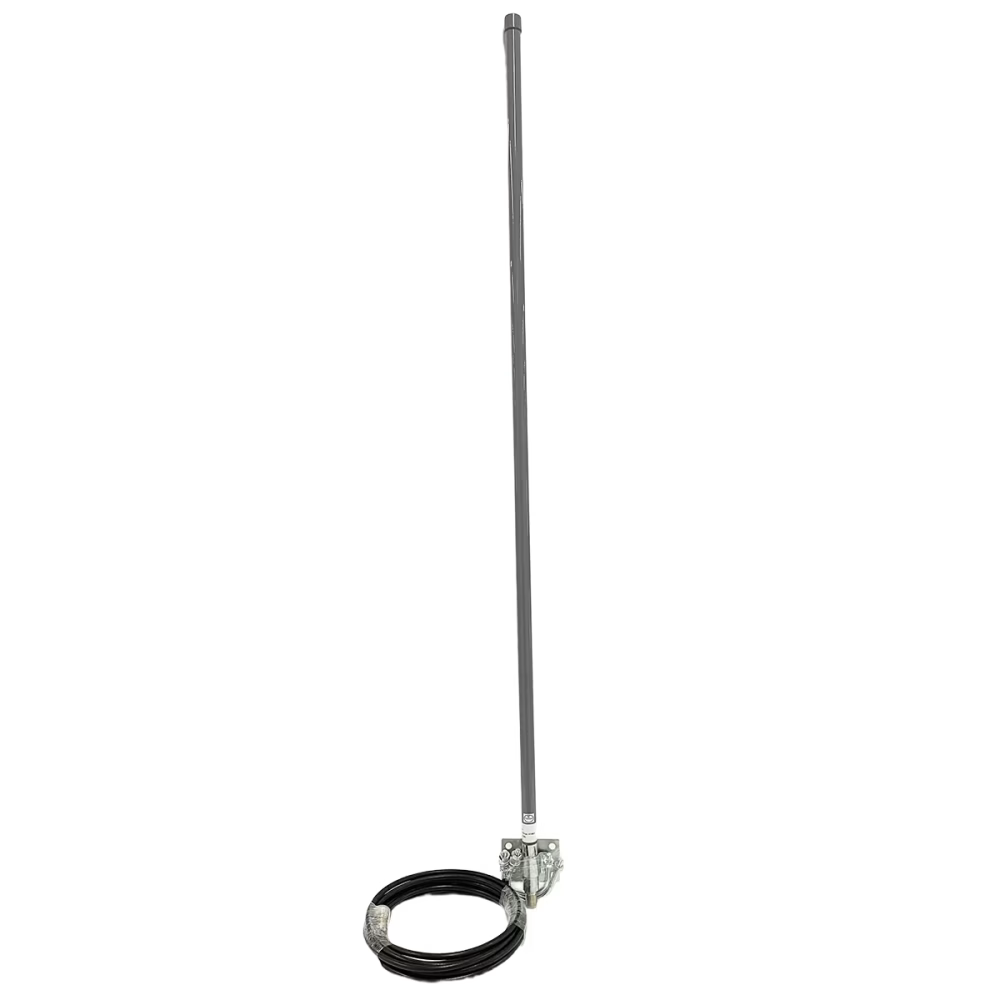

Omni-Directional FBA Fiberglass Receiver Antenna 1400–1530 MHz, 10 dBi
Overview
The VCAN1918 Omni-Directional FBA Fiberglass Receiver Antenna is designed for long-range wireless video transmission and reliable RF signal reception in UAV and drone communication systems. Operating across 1400–1530 MHz, this high-gain antenna provides 360° horizontal coverage to support communication with mobile or remotely operated platforms without requiring continuous horizontal realignment.
Featuring 10 dBi gain, vertical polarization, and a durable fiberglass construction, the VCAN1918 is suitable for outdoor ground stations, wireless video receivers, and professional remote communication systems. Its lightweight design and mast-mount compatibility make installation convenient for a variety of field deployments.
Key Features
-
360° Omni-Directional Coverage: Receives signals from all horizontal directions, making it suitable for mobile UAV applications.
-
Wide Frequency Range: Operates from 1400 to 1530 MHz, with a specified bandwidth of 100 MHz.
-
High Gain Performance: 10 dBi gain supports extended-range wireless communication when used with a compatible radio system.
-
Vertical Polarization: Designed for vertically polarized RF communication links.
-
Low VSWR: VSWR of ≤1.5 helps support efficient RF power transfer and impedance matching.
-
Durable Fiberglass Housing: Built for demanding outdoor antenna installations.
-
Lightweight Structure: Approximately 1.2 m long and 1 kg in weight.
-
High Wind Resistance: Rated wind velocity of up to 60 m/s.
-
Flexible Connector Options: N-type female connector or customized connector options.
-
Convenient Mast Installation: Designed for mounting on poles with a diameter of 40–50 mm.
Specifications
|
Parameter |
Specification |
|---|---|
|
Model |
VCAN1918 |
|
Product Type |
Omni-Directional FBA Fiberglass Receiver Antenna |
|
Frequency Range |
1400–1530 MHz |
|
Specified Bandwidth |
100 MHz |
|
Antenna Gain |
10 dBi |
|
Vertical Beamwidth |
16° |
|
Horizontal Coverage |
360° omni-directional |
|
Polarization |
Vertical |
|
VSWR |
≤1.5 |
|
Nominal Impedance |
50 Ω |
|
Maximum Input Power |
100 W |
|
Length |
Approximately 1.2 m |
|
Weight |
Approximately 1 kg |
|
Rated Wind Velocity |
60 m/s |
|
Connector |
N-type female or customized |
|
Recommended Mounting Mast Diameter |
40–50 mm |
|
Antenna Material |
Fiberglass |
Applications
-
UAV and drone ground control stations
-
Long-range wireless video reception
-
Professional video transmission and receiver systems
-
Remote monitoring and surveillance systems
-
Outdoor RF communication links
-
Ground-based antennas for mobile wireless platforms
FAQ
Q1: What frequency range does the VCAN1918 support?
A: The specified operating frequency range is 1400–1530 MHz. Confirm the exact operating band of your radio equipment before ordering.
Q2: Does this antenna provide 360° coverage?
A: Yes. Its omni-directional radiation pattern provides horizontal coverage in all directions, reducing the need for continuous horizontal antenna tracking.
Q3: What is the antenna gain?
A: The specified antenna gain is 10 dBi.
Q4: Which connector is available?
A: The standard option is an N-type female connector. Customized connector options may be available upon request.
Q5: Can it be installed outdoors?
A: The fiberglass construction and rated wind velocity of 60 m/s make it suitable for outdoor antenna installations. Confirm environmental protection and mounting requirements for your specific deployment.
Q6: What mast diameter is supported?
A: The specified mounting mast diameter is 40–50 mm. Confirm the included mounting hardware and installation arrangement before purchase.
Q7: Is this antenna compatible with every drone video system?
A: No. Compatibility depends on the radio frequency, connector, polarization, and antenna interface of the connected equipment. Verify these parameters before ordering.
Package Contents
-
VCAN1918 omni-directional fiberglass antenna
-
Mounting accessories and cables: confirm availability with the supplier before ordering
Ordering Notes
Please confirm your operating frequency, connector type, mounting requirements, and system compatibility before purchase. For custom configurations or bulk orders, contact the supplier.
