Overview

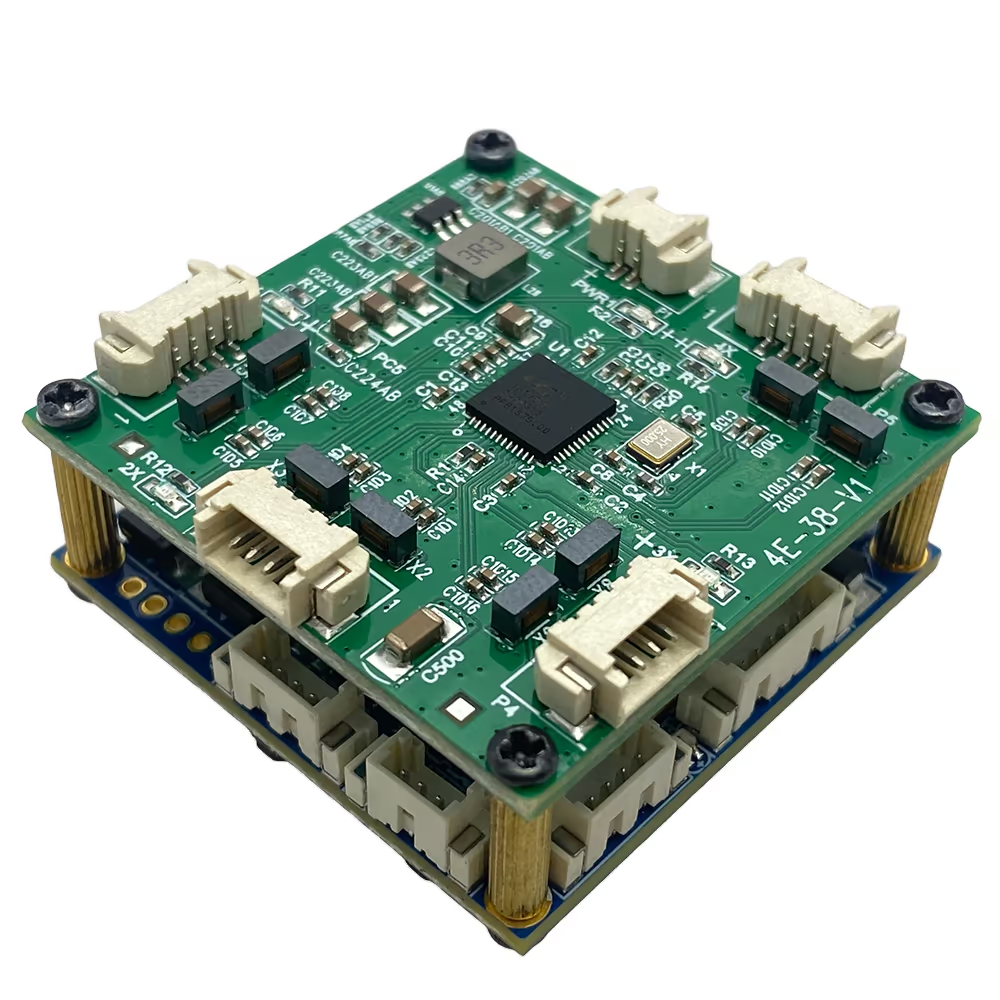

The RTSP to RTSP Encoder Board is an embedded Ethernet-based video processing solution designed for IP camera integration, real-time telemetry display, and customized network video applications.

Based on an existing RTSP-to-UDP converter platform, this solution can be evaluated for firmware customization to support RTSP input, H.264 decoding, dynamic on-screen display (OSD), H.264 encoding, and RTSP output.

It is intended for OEMs, system integrators, and engineering teams that need to overlay continuously updated sensor information on live camera video while maintaining a digital video workflow.

Key Features

• RTSP IP Camera Integration: Designed for integration with compatible H.264 IP camera streams over Ethernet.

• Digital Video Processing: Supports a proposed workflow that avoids unnecessary conversion to analog CVBS.

• Dynamic Telemetry OSD: Custom firmware can be evaluated to display real-time sensor data and status information.

• RTSP-to-RTSP Processing: RTSP input and output can be evaluated as part of a customized video processing pipeline.

• H.264 Video Processing: Decoding and re-encoding capabilities require hardware and firmware validation.

• External Controller Integration: ESP32 or other controllers can be considered for telemetry input.

• Flexible Interface Options: TCP, UDP, JSON, or UART may be evaluated according to project requirements and firmware support.

• OEM/ODM Customization: Firmware, OSD layout, data interfaces, and application-specific functions can be assessed for custom projects.

Dynamic OSD for Real-Time Monitoring

The OSD can be designed to overlay application-specific data directly onto live video. Potential display fields include:

• Temperature and humidity

• Battery voltage and battery level

• Depth or distance

• Heading and orientation

• Sensor status and device identification

• Date and time

• Custom numerical values and status messages

The supported fields, screen layout, update rate, and telemetry protocol depend on the final firmware implementation.

Proposed Video Processing Workflow

Proposed architecture; the complete workflow requires hardware feasibility and firmware validation.

Typical Applications

• Industrial IP camera video processing

• Remote equipment monitoring with telemetry overlays

• Environmental monitoring and sensor visualization

• Underwater observation with depth and temperature data

• Mobile equipment monitoring with battery and operating status

• Embedded video recording and network video gateways

• Customized IP camera integration and OEM video products

Technical Specifications

FAQ

Q1: Can this board add real-time sensor data to an IP camera stream?

Dynamic telemetry OSD can be evaluated as a customized function. The required data fields, update frequency, and communication interface must be confirmed.

Q2: Can it accept RTSP video and output RTSP video?

RTSP-to-RTSP processing is the target application. Feasibility depends on the hardware resources and customized firmware.

Q3: Can an ESP32 send telemetry data to the board?

ESP32 integration can be evaluated. TCP, UDP, JSON, or UART support depends on the final firmware and interface implementation.

Q4: Is it compatible with every IP camera or NVR?

Universal compatibility is not guaranteed. Provide your camera model, RTSP stream details, and NVR model for compatibility evaluation.

Q5: Can the OSD layout be customized?

Custom text fields, layout, and telemetry mapping can be discussed during engineering evaluation.

Q6: Is OEM/ODM customization available?

Yes. Firmware and interface customization can be evaluated based on your project requirements.

Request a Quote

To evaluate your application, please provide your IP camera model, required input/output resolution, frame rate, bitrate, latency target, OSD fields, telemetry protocol, NVR model, power requirements, and estimated order quantity.

Contact our team to discuss technical feasibility, customization scope, sample availability, pricing, and lead time.
