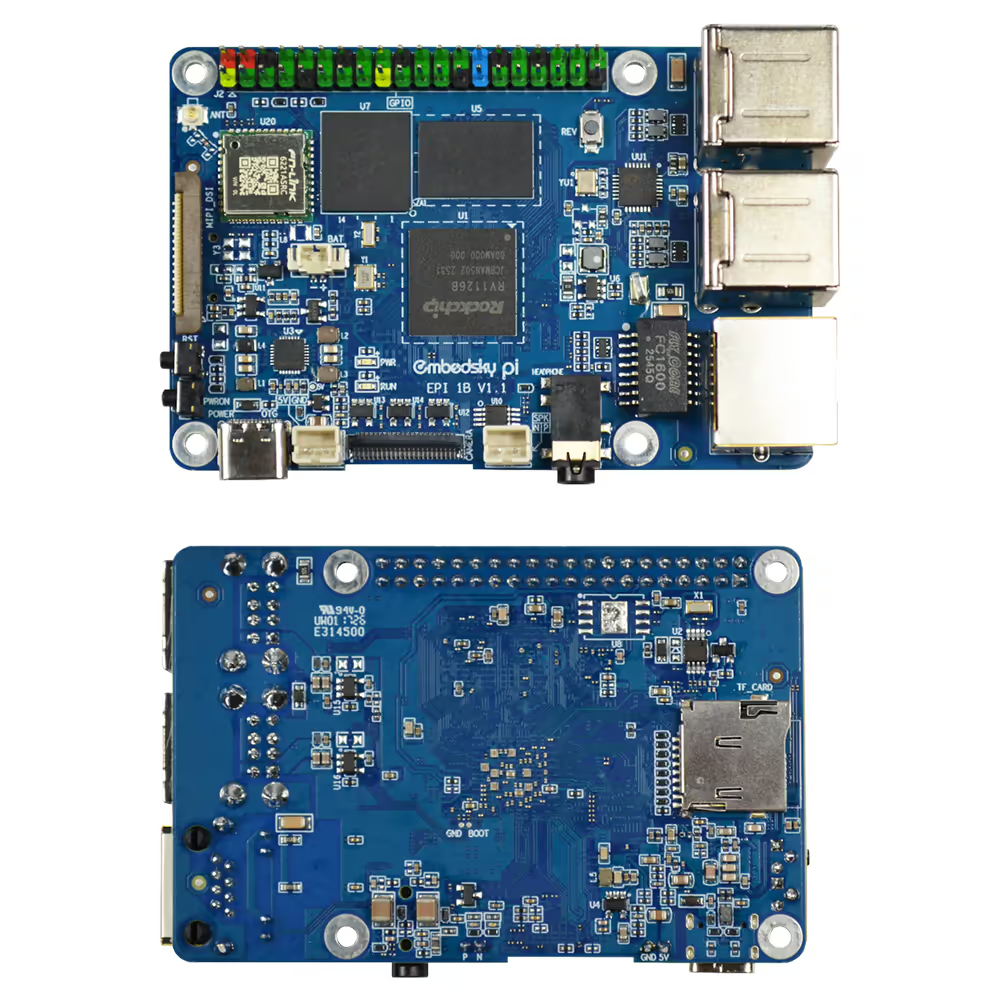

RV1126B AI Vision Board with 3 TOPS NPU – EPI_1B

Product Description

The EPI_1B RV1126B AI Vision Board is a compact Linux-based embedded AI computing platform designed for intelligent vision, smart camera, robotics, security, and edge AI applications.

Powered by the Rockchip RV1126B quad-core 64-bit ARM Cortex-A53 processor, the board integrates a dedicated 3 TOPS NPU supporting INT8/INT16 mixed-precision AI computing. This enables local AI inference for applications such as object detection, face recognition, image classification, human detection, and other computer vision workloads.

The board provides two 4-lane MIPI-CSI camera interfaces for multi-camera, binocular, and stereo vision applications. A 4-lane MIPI-DSI interface supports displays up to 1920 × 1080 @ 60 fps. The platform also supports 4K H.264/H.265 video encoding and 4K H.264 decoding.

With a compact 85 × 56 mm board size, Linux support, 40-pin expansion header, USB, Ethernet, Wi-Fi, Bluetooth, audio, and multiple storage options, the EPI_1B is well suited for OEM and ODM developers integrating AI vision capabilities into commercial and industrial products.

Key Features

• Rockchip RV1126B quad-core ARM Cortex-A53 64-bit processor
• Integrated 3 TOPS NPU for edge AI inference
• INT8/INT16 mixed-precision AI computing
• 1GB / 2GB / 4GB LPDDR4 RAM options
• 16GB / 32GB / 64GB eMMC options
• 128MB / 256MB / 512MB SPI Flash options
• Standard Micro SD card interface
• 2 × 4-lane MIPI-CSI camera interfaces
• 1 × 4-lane MIPI-DSI display interface
• Display resolution up to 1920 × 1080 @ 60 fps
• 4K H.264/H.265 video encoding
• 4K H.264 video decoding
• 10/100 Mbps Ethernet
• 2.4GHz / 5GHz Wi-Fi
• Bluetooth 4.2
• 1 × USB 2.0 OTG Type-C
• 4 × USB 2.0 Host
• Raspberry Pi-style 40-pin expansion header
• GPIO, UART, PWM, SPI, I²C and DEBUG interfaces
• Linux operating system support
• 3.5mm headphone interface
• 4Ω / 3W mono speaker output
• Compact 85 × 56 mm PCB
• Suitable for embedded AI vision and intelligent camera products

AI Vision Processing

The integrated RV1126B NPU provides up to 3 TOPS of AI computing performance, allowing AI inference to run locally on the embedded platform.

Typical AI workloads include:

• Object detection
• Human detection
• Face detection and recognition
• Image classification
• Human pose detection
• Real-time AI video analysis
• Edge computer vision

The NPU supports INT8 and INT16 mixed-precision operations for embedded AI applications.

Camera and Video

The EPI_1B features two 4-lane MIPI-CSI interfaces, making it suitable for single-camera, dual-camera, binocular, and stereo vision systems.

Supported video capabilities include:

• 4K H.264 encoding
• 4K H.265 encoding
• 4K H.264 decoding
• Dual MIPI-CSI camera input
• AI image processing
• Multi-camera applications
• Binocular and stereo vision

Display Interface

The board provides one 4-lane MIPI-DSI interface for compatible LCD displays.

Maximum display resolution:
1920 × 1080 @ 60 fps

It can be used for smart displays, touch-screen terminals, HMI systems, AI terminals, and other embedded visual interfaces.

Connectivity

Wi-Fi + Bluetooth

• 2.4GHz / 5GHz Wi-Fi
• Bluetooth 4.2

Ethernet

• 10/100 Mbps Ethernet

USB

• 1 × USB 2.0 OTG Type-C
• 4 × USB 2.0 Host

USB ports can be used with cameras, storage devices, keyboards, mice, and other peripherals.

40-Pin Expansion Interface

The Raspberry Pi-style 40-pin header provides access to:

• GPIO
• UART
• PWM
• SPI
• I²C
• DEBUG

Peripheral functions use pin multiplexing, so the appropriate M0/M1/M2/M3 configuration should be selected according to the hardware design.

Hardware Specifications

Available Configurations

The EPI_1B can be configured according to project requirements.

RAM:

• 1GB LPDDR4
• 2GB LPDDR4
• 4GB LPDDR4

eMMC:

• 16GB
• 32GB
• 64GB

SPI Flash:

• 128MB
• 256MB
• 512MB

For OEM/ODM projects, customers can specify the required RAM, storage, camera, display, and other hardware configurations before ordering.

Applications

The RV1126B EPI_1B AI Vision Board can be used for:

• AI smart cameras
• Computer vision systems
• Binocular and stereo cameras
• Face recognition systems
• Human detection
• Smart access control
• Video doorbells
• Intelligent security systems
• AI payment terminals
• Intelligent transportation
• Robotics
• Industrial vision
• Smart displays
• Edge AI devices
• Embedded Linux products

Typical AI Vision Architecture

MIPI Camera → EPI_1B RV1126B → 3 TOPS NPU AI Inference → Application Processing → Display / Network / USB

The 40-pin expansion interface can also be used to connect sensors, control devices, and other peripheral modules.

Power Supply

The recommended power input is:

5V / 2A via USB Type-C

A PH2.0 5V power connector is also provided.

For stable operation during development and firmware updates, use an adequate 5V power supply and a high-quality USB cable. Insufficient USB power may cause repeated restarts, especially when multiple peripherals are connected.

Why Choose the EPI_1B?

The EPI_1B combines a quad-core ARM processor, 3 TOPS NPU, dual MIPI camera inputs, MIPI display connectivity, Linux support, wireless connectivity, USB, Ethernet, and flexible storage options in a compact board.

It is designed for developers and manufacturers who need to integrate edge AI and computer vision into existing or new products without designing a complete processor board from scratch.

For customized projects, RAM, storage, camera sensors, LCDs, enclosure, Linux BSP, AI models, and other hardware/software requirements can be discussed with the engineering team.

FAQ

Q1: What processor does the EPI_1B use?
A: It uses the Rockchip RV1126B quad-core ARM Cortex-A53 64-bit processor with an integrated 3 TOPS NPU.

Q2: How many cameras can be connected?
A: The board provides two 4-lane MIPI-CSI camera interfaces for compatible camera sensors and multi-camera applications.

Q3: Does it support AI inference locally?
A: Yes. The integrated 3 TOPS NPU is designed for local edge AI inference.

Q4: What operating system does it support?
A: The EPI_1B supports Linux for embedded AI and computer vision development.

Q5: What RAM configurations are available?
A: 1GB, 2GB, and 4GB LPDDR4 options are available.

Q6: What storage options are available?
A: Available configurations include 16GB/32GB/64GB eMMC and 128MB/256MB/512MB SPI Flash, with a Micro SD interface for external storage.

Q7: What is the board size?
A: The PCB measures approximately 85 × 56 mm with a thickness of 1.6 mm.

Q8: Is OEM/ODM customization available?
A: Yes. The platform can be configured for different RAM, storage, camera, display, and application requirements.
