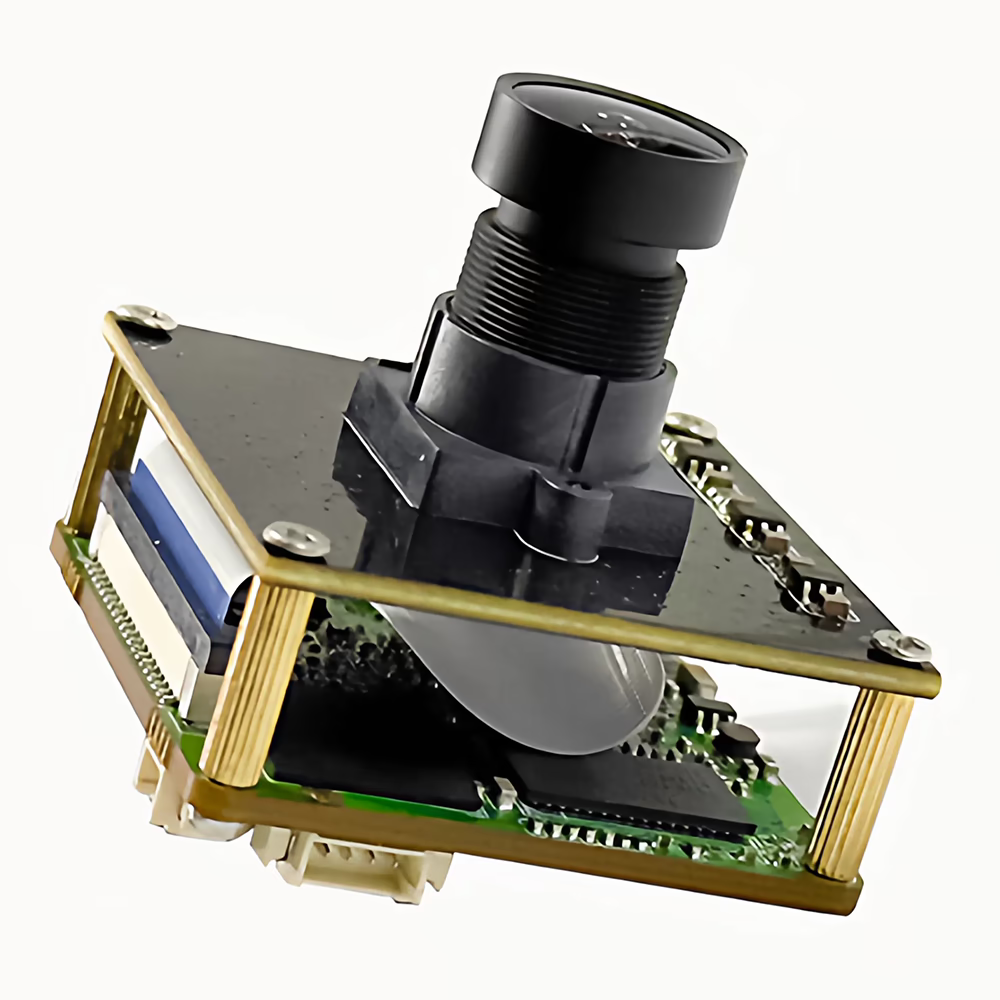

RV1126B-P AI Development Board with 3 TOPS NPU and 4K Video Processing
Overview
The RV1126B-P AI Development Board is a compact embedded computing platform designed for edge AI, computer vision, intelligent cameras, and embedded Linux applications. Powered by a quad-core ARM Cortex-A53 processor and an integrated neural processing unit (NPU) delivering up to 3 TOPS, it provides a flexible hardware foundation for developing AI-enabled vision products and customized embedded systems.
With hardware-accelerated H.264/H.265 video processing, an integrated 12 MP image signal processor (ISP), and a compact 38 × 38 mm form factor, this board is suitable for space-constrained applications that require intelligent image processing and efficient on-device AI inference.
The standard configuration includes 2 GB DDR4 memory and 64 GB eMMC storage. Optional Sony IMX415 4K or Sony IMX307 1080p camera sensor integration is available for compatible configurations.
Key Features
• Rockchip RV1126B-P processor with quad-core ARM Cortex-A53 CPU up to 1.6 GHz
• Integrated NPU delivering up to 3 TOPS AI computing performance
• Supports INT4, INT8, INT16, and FP16 NPU precision modes, subject to software support
• Embedded Linux platform for application development and hardware integration
• Hardware-accelerated H.264/H.265 video encoding and decoding
• Supports video processing up to 4K, depending on operating mode and configuration
• Integrated 12 MP ISP with three-frame HDR support
• Compact 38 × 38 mm board for embedded product integration
• Standard 2 GB DDR4 memory and 64 GB eMMC storage
• Camera interface options include compatible MIPI CSI, LVDS, sub-LVDS, and parallel input configurations
• Gigabit Ethernet, USB 2.0, SDIO, and audio interfaces, subject to board implementation
• Optional Sony IMX415 4K or IMX307 1080p camera integration
• OEM/ODM customization and engineering support for qualified projects
Technical Specifications
Processor: Rockchip RV1126B-P
CPU: Quad-core ARM Cortex-A53
CPU Frequency: Up to 1.6 GHz
AI Accelerator: Integrated NPU
AI Performance: Up to 3 TOPS
NPU Precision: INT4, INT8, INT16, FP16
Operating System: Linux
Memory: 2 GB DDR4
Storage: 64 GB eMMC
Image Signal Processor: 12 MP ISP with three-frame HDR
Video Codecs: H.264/H.265 hardware encoding and decoding
Video Processing: Up to 4K, depending on supported operating modes
Camera Inputs: Compatible MIPI CSI, LVDS, sub-LVDS, and 16-bit parallel input configurations
Ethernet: Gigabit Ethernet with TSO network acceleration
USB: USB 2.0 OTG and USB 2.0 host
Expansion: Two SDIO 3.0 interfaces, subject to board implementation
Audio: 8-channel I2S with TDM/PDM and 2-channel I2S
Board Dimensions: 38 × 38 mm
Optional Camera Sensors: Sony IMX415 4K or Sony IMX307 1080p, subject to configuration
Optional Camera Sensor Configurations
Sony IMX415 4K Sensor
• Resolution: 3840 × 2160
• Sensor format: 1/2.8-inch
• Lens option: 3.0 mm
• Aperture: F1.6 for the specified optical configuration
• Output: RAW
• Connection: 40-pin FPC, 0.5 mm pitch
Sony IMX307 1080p Sensor
• Resolution: 1920 × 1080
• Sensor format: 1/2.8-inch
• Lens option: 2.9 mm
• Output: RAW
• Connection: 40-pin FPC, 0.5 mm pitch
Typical Applications
• Edge AI computing and inference devices
• AI-powered IP cameras and intelligent imaging systems
• Computer vision and image analysis
• Face detection and recognition terminals
• Smart security and video analytics
• Intelligent access control systems
• Industrial machine vision and inspection
• Embedded video processing equipment
• Customized AI vision products
• OEM/ODM embedded hardware projects
Why Choose the RV1126B-P AI Development Board?
The RV1126B-P combines dedicated AI acceleration, embedded Linux development, and hardware video processing in a compact board. It helps developers integrate supported AI inference and image-processing functions into customized products without designing an entire computing platform from scratch.
For projects requiring camera integration, customized interfaces, firmware adaptation, or AI model deployment, configuration and engineering support can be discussed according to project requirements.
FAQ
Q1: What is the AI computing performance?
A: The integrated NPU delivers up to 3 TOPS. Actual performance depends on the AI model, quantization, supported operators, software runtime, and system configuration.
Q2: Does the board support 4K video?
A: The platform supports hardware-accelerated H.264/H.265 video processing up to 4K in supported operating modes. Confirm the required resolution, frame rate, and simultaneous encoding/decoding combination before ordering.
Q3: Which camera sensors are available?
A: Sony IMX415 4K and Sony IMX307 1080p sensors are listed as optional integrations. Compatibility depends on the board configuration, drivers, firmware, and ISP tuning.
Q4: Which operating system does it use?
A: The board is designed for embedded Linux development. Please confirm the available SDK, drivers, and AI framework compatibility for your intended application.
Q5: Can the board be customized?
A: OEM/ODM support may be available for camera integration, memory and storage configuration, interface adaptation, Linux firmware, and AI application development, subject to project evaluation.
Q6: What should I confirm before purchasing?
A: Please confirm the exact PCB revision, connector pinout, camera configuration, SDK availability, required video modes, and supported AI framework for your project.
Ordering Information
Please contact us with your application, required camera sensor, interface requirements, AI model, software environment, and estimated order quantity to confirm the suitable configuration, pricing, and availability.
Note: Specifications and interface availability may vary by PCB revision and firmware. Camera sensors, lenses, accessories, and customization services are included only when explicitly specified in the selected configuration.
