Thermal Camera CVBS Output to USB UVC Converter Board for FPV Thermal Camera 2036-CVBS2USB

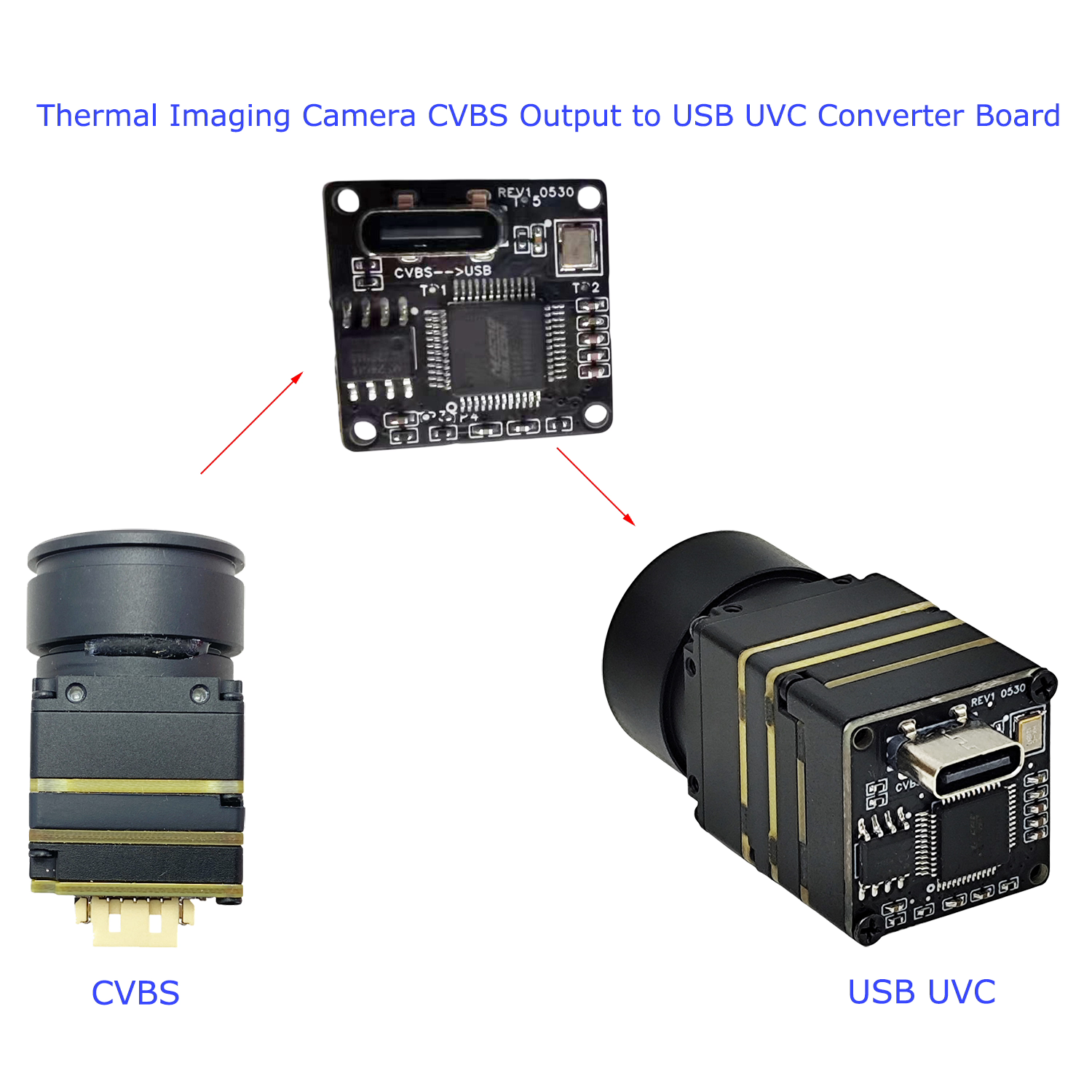

This CVBS to USB UVC converter board is designed to convert analog composite video signals from thermal imaging cameras into a standard USB UVC video stream.

It allows thermal cameras with CVBS analog video output to be connected directly to modern devices such as:

• Windows PC
• Laptop
• Android smartphone
• Tablet
• USB video monitoring systems
• FPV ground stations

The converter works as a compact USB video capture interface, transforming traditional analog thermal video into a digital USB camera signal.

Key Features

1. Convert Thermal Camera CVBS Video to USB UVC

Supports thermal cameras with analog composite CVBS output.

The board receives PAL/NTSC CVBS video signals and converts them into USB UVC format for plug-and-play video streaming.

No special driver is required for most UVC-compatible devices.

2. Ultra Compact Design

Designed for FPV and embedded applications.

Specifications:

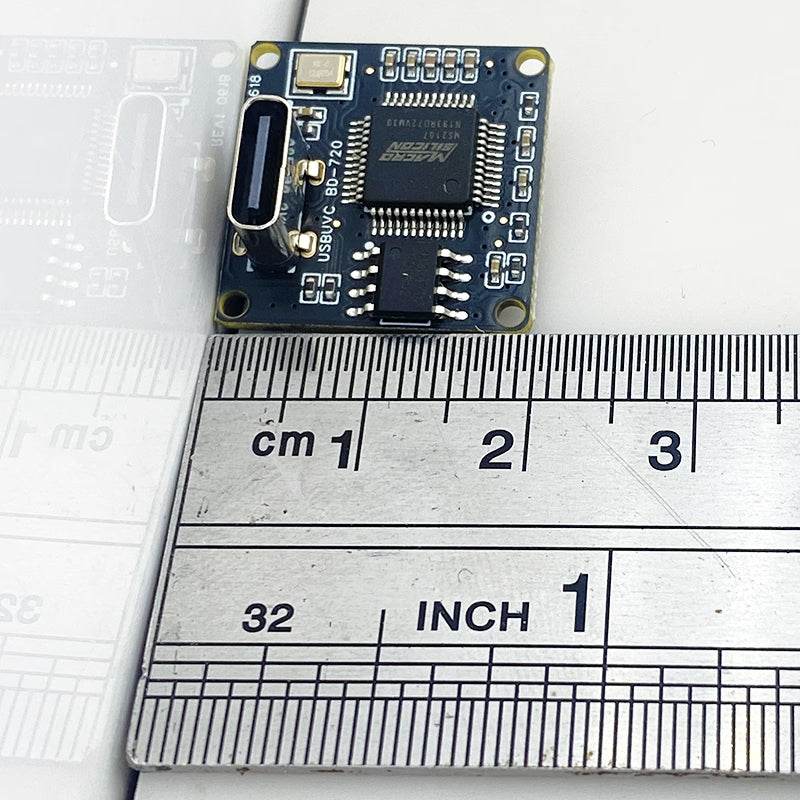

• Board size: 20 × 20 mm

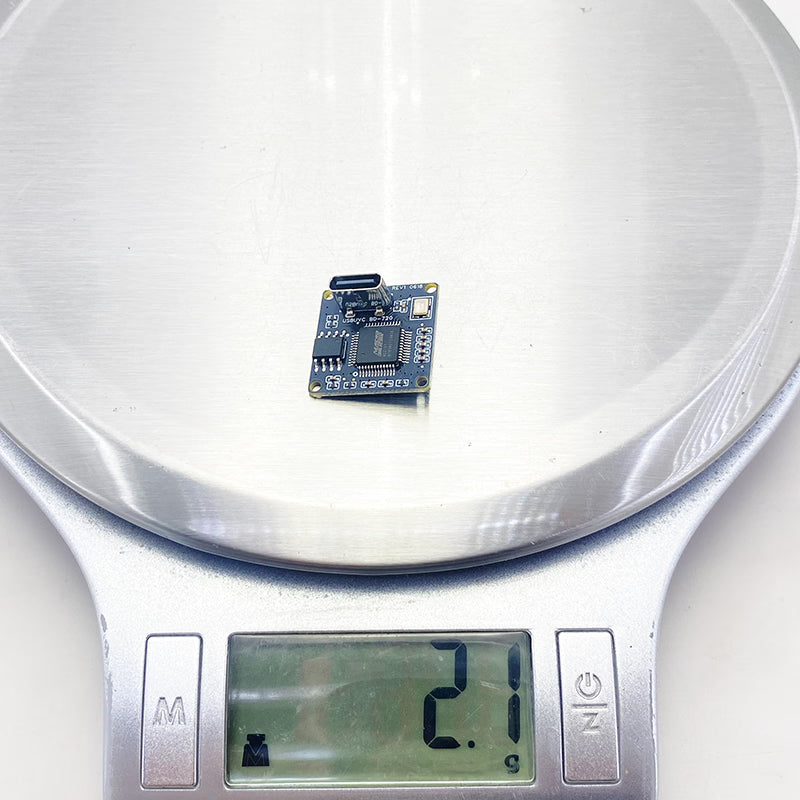

• Weight: Approx. 2.1 g

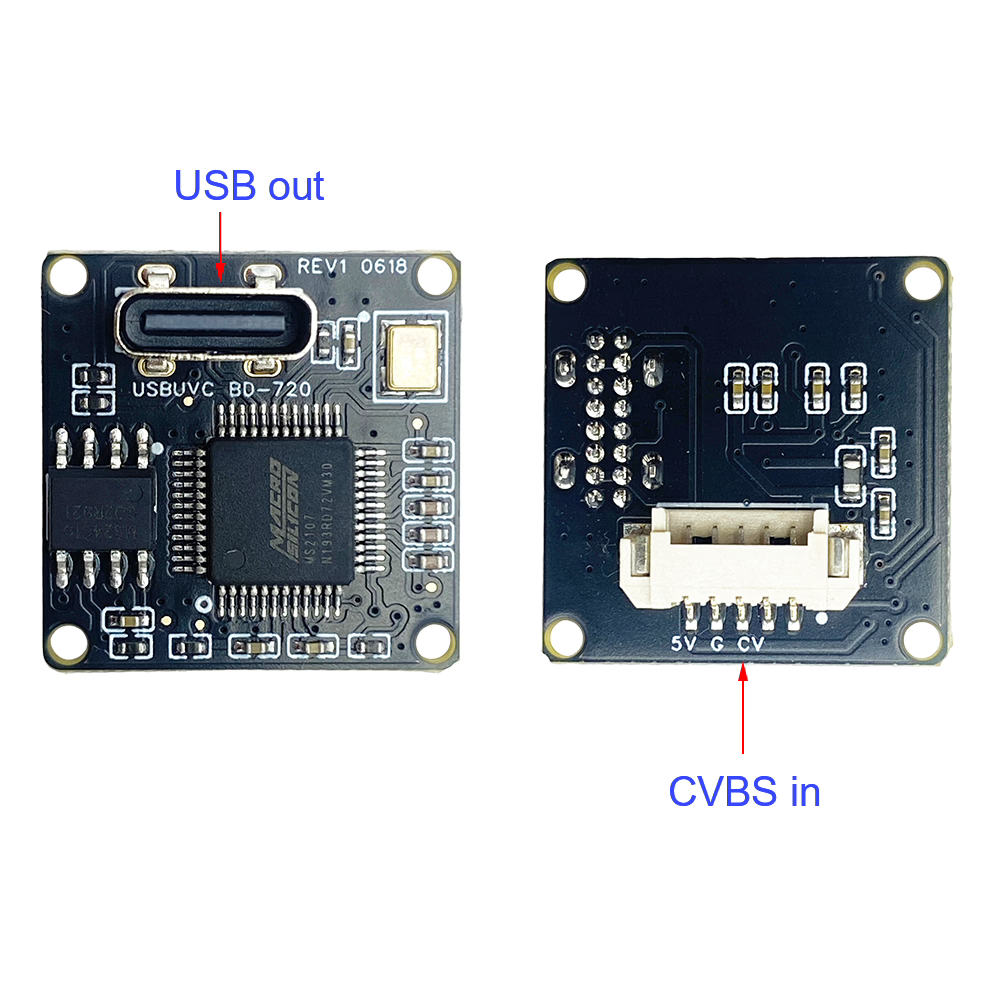

• Interface: USB UVC video output
• Input: CVBS analog video signal

The extremely small size makes it suitable for drones, robotics, portable thermal imaging equipment, and custom projects.

3. Compatible with PC and Android Devices

The converted thermal video can be displayed, recorded, or processed through common UVC applications.

Compatible applications include:

• Thermal monitoring software
• Video capture software
• FPV viewing applications
• Computer vision development platforms

Supported systems:

✔ Windows
✔ Linux
✔ Android (with OTG support)
✔ macOS (depending on application)

Signal Detection Function

The converter board provides simple video status indication:

When CVBS Signal is Available

The thermal camera video is detected and converted to USB UVC output.

When No Video Signal Exists

The output screen remains black until a valid CVBS signal is received.

FPV Thermal Camera Systems

Convert analog thermal camera video into USB format for FPV monitoring, ground stations, and digital display systems.

Industrial Thermal Inspection

Connect existing CVBS thermal cameras to laptops or tablets for:

• Electrical inspection
• Machine maintenance
• Equipment monitoring
• Temperature analysis

Drone and Robotics

Ideal for:

• Thermal drones
• Autonomous robots
• AI vision systems
• Research platforms

Security and Surveillance

Upgrade older CVBS thermal cameras by connecting them to modern USB-based monitoring systems.

Research and Development

Useful for engineers and developers working with:

• Thermal imaging
• Computer vision
• AI image processing
• Embedded systems

Technical Specifications

Customization Options

For OEM and bulk customers, customization is available:

Hardware Options

• USB Type-A / Type-C connector
• Different PCB sizes
• Custom cable length
• Custom enclosure design

Video Options

• PAL / NTSC / SECAM compatibility
• Different output resolutions
• Frame rate optimization
• Low-latency firmware

Software Options

• Custom UVC descriptors
• OSD overlay
• Timestamp display
• Camera control interface

Package Includes

1 × Thermal Camera CVBS to USB UVC Converter Board

FAQ

Q: Does this converter work with all thermal cameras?

A: It works with thermal cameras that provide standard CVBS analog video output (PAL/NTSC). Please confirm your camera output format before ordering.

Q: Can I connect it to an Android phone?

A: Yes. Android phones with USB OTG support can receive the UVC video signal using compatible camera applications.

Q: Does it require a driver?

A: No. It uses the standard USB UVC protocol and works with most UVC-compatible systems.

Q: What is the board size?

A: The PCB size is only 20 × 20 mm, making it suitable for compact FPV and embedded applications.
