Tiny CVBS/AHD to IP Ethernet Video Encoder Board – 46×22mm
Overview
The Tiny CVBS/AHD to IP Ethernet Video Encoder Board is a compact video conversion module designed to integrate analog cameras into IP-based video systems.

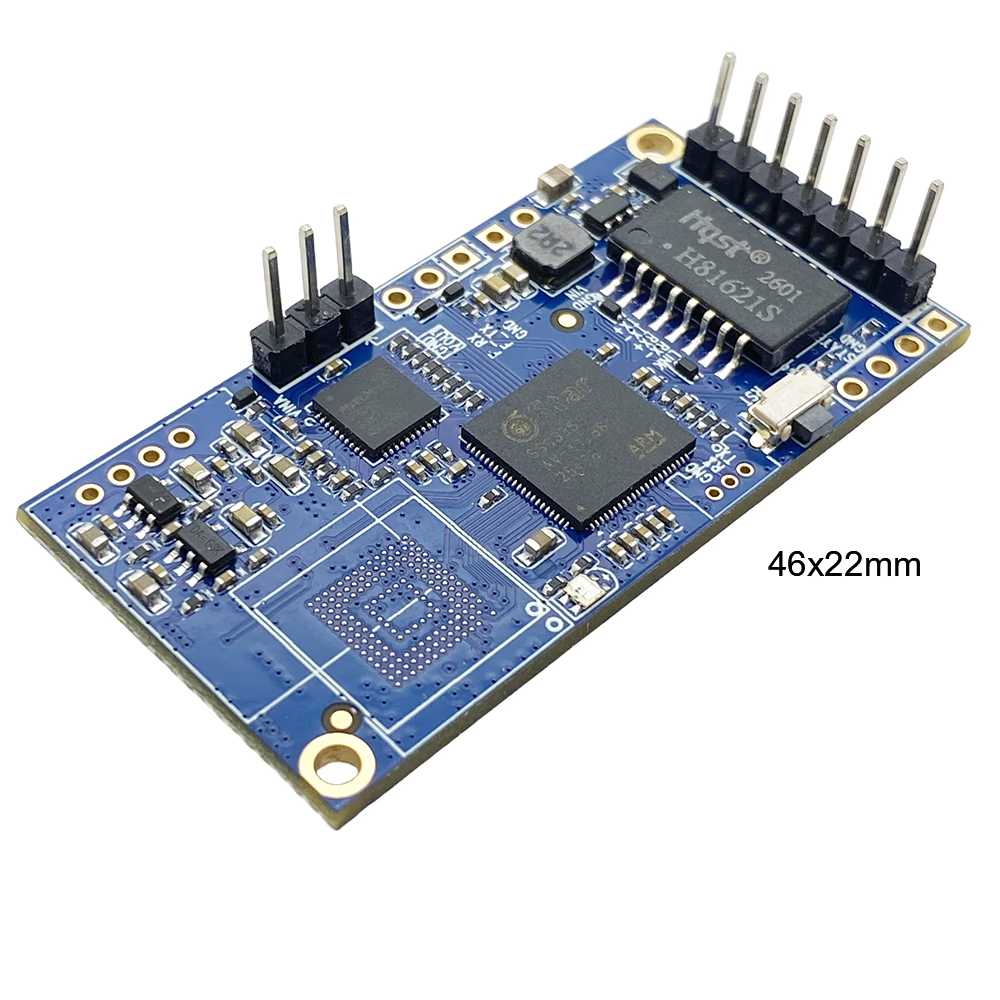

Measuring just 46 × 22 mm, this mini encoder board converts CVBS or AHD analog video signals into IP video streams over Ethernet. Its small footprint makes it ideal for embedded electronics, industrial equipment, mobile video systems, and space-constrained applications.
Unlike conventional designs that use removable TF cards for local recording, this model offers optional onboard memory chip storage. Customers can choose a configuration without onboard storage or select 32GB or 128GB storage options, depending on project requirements.
Designed for OEM manufacturers, system integrators, and embedded system developers, this board provides a compact solution for analog-to-IP video conversion and customized video system integration.
Key Features
1. Ultra-Compact 46 × 22 mm PCB
The small PCB footprint allows easy integration into compact electronic devices, custom enclosures, and embedded video systems where installation space is limited.
2. CVBS and AHD Analog Video Input
Supports CVBS/AHD analog video input, allowing compatible analog cameras to connect with Ethernet-based video systems.
3. Ethernet IP Video Output
Converts supported analog video signals into IP network video streams through an Ethernet interface, helping integrate traditional analog cameras into networked video applications.
4. Optional Onboard Memory Storage
Choose the storage configuration that best suits your project:
- No onboard storage
- 32GB onboard memory
- 128GB onboard memory
The onboard memory design eliminates the need for a removable TF card in supported recording configurations.
5. Lightweight Embedded Design
The miniature PCB is suitable for space-sensitive installations in compact equipment, mobile systems, robotics, and custom electronic products.
6. OEM/ODM Customization Support
Customization options can be evaluated for project-specific requirements, including connectors, PCB integration, firmware functions, and storage configuration.
Technical Specifications
- Product Type: Mini Analog-to-IP Video Encoder Board
- Model / SKU: 2288-Tiny-CVBS-AHD-to-IP-Ethernet-Encoder
- PCB Dimensions: 46 × 22 mm
- Video Input: CVBS / AHD
- Video Output: IP video stream over Ethernet
- Local Recording: Optional onboard memory chip storage
- Storage Options: No onboard storage / 32GB / 128GB
- Form Factor: Compact embedded PCB
- Customization: OEM/ODM options available
Technical Note: Please confirm the supported AHD resolution, video encoding format, network protocols, power supply requirements, and recording functions for your selected configuration before ordering.
Typical Applications
Embedded Video Systems
Integrate analog camera inputs into compact embedded electronics and custom video processing equipment.
Industrial Monitoring
Connect compatible analog cameras to Ethernet-based video monitoring systems in industrial environments.
Vehicle and Mobile Video Systems
Use the compact encoder board in vehicle-mounted equipment and mobile video applications where installation space is limited.
Robotics and Machine Vision
Integrate analog camera feeds into robotic platforms, machine vision equipment, and embedded monitoring devices.
IP Video System Integration
Convert compatible analog video sources into network video streams for integration into customized IP-based systems.
OEM Electronic Products
Incorporate analog-to-IP video conversion and optional onboard recording into customer-designed products.
FAQ
Q1: What is the size of this CVBS/AHD to IP encoder board?
The PCB measures 46 × 22 mm, making it suitable for compact embedded installations.
Q2: Does this encoder support both CVBS and AHD video input?
Yes. It is designed for CVBS/AHD analog video input. Please confirm the supported AHD resolution and signal format for your specific configuration.
Q3: Does the board support onboard recording?
Optional onboard memory storage is available. Recording capabilities depend on the selected configuration and supported firmware functions.
Q4: What storage capacities are available?
The available configurations include no onboard storage, 32GB onboard storage, and 128GB onboard storage.
Q5: Does this board require a TF card?
This version uses optional onboard memory chip storage instead of a removable TF card for supported recording configurations.
Q6: Can the encoder board be customized for OEM projects?
Yes. OEM/ODM requirements, including connectors, PCB integration, firmware functions, and storage configuration, can be evaluated according to your application.
Q7: What information should I provide before ordering?
Please provide your camera signal type, required video resolution, Ethernet streaming requirements, storage preference, power supply requirements, and estimated order quantity. This information will help confirm the appropriate configuration.
Request a Quote
Looking for a miniature CVBS/AHD-to-IP Ethernet video encoder for your next embedded project?
Contact our team for technical details, sample availability, bulk pricing, and OEM/ODM customization options.
Share your project requirements with us, and we will help you identify a suitable configuration.
