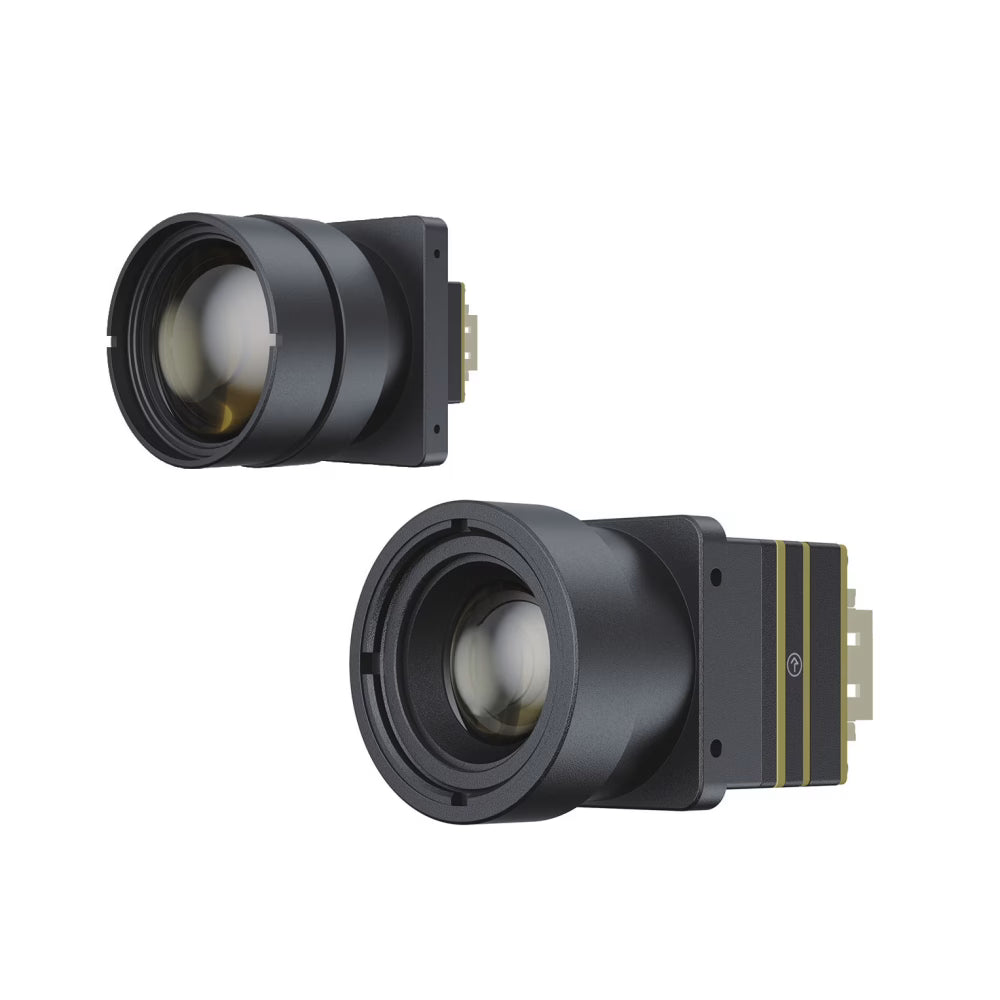

Uncooled 640×512 12μm LWIR Thermal Camera Module

Overview

The Uncooled 640×512 12μm LWIR Thermal Camera Module is a compact, low-power thermal imaging core designed for OEM integration into UAVs, drones, security systems, industrial inspection equipment, and embedded vision devices.

Built around an uncooled vanadium oxide (VOx) focal plane array detector, this thermal camera module captures long-wave infrared radiation in the 8–14μm spectral range. Its high-resolution 640×512 imaging option, 12μm pixel pitch, and NETD of ≤40mK at F1.0 enable detailed thermal imaging, including scenes with subtle temperature differences.

With a compact form factor, lightweight construction, CVBS analog video output, USB 2.0 connectivity, and flexible image-processing functions, the module is designed for integration into space-constrained imaging systems.

Key Features

• High-Resolution Thermal Imaging: 640×512 infrared resolution for detailed thermal scene analysis.
• Uncooled VOx Detector: Maintenance-friendly thermal imaging technology without a mechanical cooling system.
• 12μm Pixel Pitch: Compact detector architecture for lightweight embedded applications.
• High Thermal Sensitivity: NETD ≤40mK at F1.0 for detecting subtle thermal contrasts.
• Long-Wave Infrared Detection: 8–14μm spectral response for thermal imaging in darkness and challenging lighting conditions.
• Athermal Lens Options: 9.1mm and 13mm lens options for compatible configurations; other focal lengths may be available for different resolution models.
• Multiple Image Palettes: 18 color palettes, including white hot, black hot, rainbow, iron red, amber, and fusion.
• Advanced Image Processing: Supports non-uniformity correction (NUC), 2D/3D noise reduction, and digital detail enhancement.
• Flexible Connectivity: CVBS analog video and USB 2.0 interfaces for supported configurations.
• Serial Communication: UART 3.3V and USB serial interface support for control and integration.
• Low Power Consumption: Typical consumption below 0.75W for the 640×512 configuration at 25°C.
• Compact and Lightweight: Approx. 17.3 × 17.3 × 35.6mm and 21g excluding the lens, according to the published specifications.
• Wide Operating Temperature: Designed to operate from -40°C to +70°C.

Technical Specifications

Detector Type: Uncooled VOx focal plane array (FPA)
Available Detector Resolutions: 640×512 / 384×288 / 256×192
Pixel Pitch: 12μm
Spectral Range: 8–14μm
Thermal Sensitivity (NETD): ≤40mK at F1.0
Lens Options: 9.1mm / 13mm for applicable models; options vary by resolution
Lens Aperture: F1.0
Video Interfaces: CVBS analog video / USB 2.0, depending on configuration
Serial Interfaces: UART 3.3V / USB serial interface
Image Processing: NUC, 2D/3D noise reduction, digital detail enhancement
Image Adjustment: Brightness, contrast, and sharpness
Gain Control: Automatic / manual
Image Flip: 180° rotation / mirror
Color Palettes: 18
Dimensions: Approx. 17.3 × 17.3 × 35.6mm
Weight: Approx. 21g, excluding lens
Power Supply: 4.5–20V DC, according to the published module specifications
Typical Power Consumption: <0.75W at 25°C for the 640×512 configuration
Operating Temperature: -40°C to +70°C
Storage Temperature: -40°C to +80°C
Operating Humidity: Up to 95%, non-condensing

Note: Specifications vary by resolution, lens, and interface configuration. Confirm the exact model, pinout, input voltage, and video standard before integration.

Interface and Integration

The module supports CVBS analog video and USB 2.0 through compatible configurations. An optional CVBS expansion board provides additional connection points for power, analog video, and USB.

Typical interface options include:
• USB 2.0 for supported digital data and video workflows.
• CVBS output for compatible analog video systems.
• UART 3.3V for serial communication and integration.

Connector pin assignments and power requirements differ by interface and expansion-board version. Please consult the appropriate datasheet or user manual before connecting the module.

Applications

• UAV and Drone Thermal Imaging: Lightweight thermal imaging for aerial inspection, observation, and search missions.
• Security and Surveillance: Thermal scene monitoring in darkness and low-visibility environments.
• Industrial Inspection: Identifying thermal anomalies in machinery, electrical equipment, and industrial systems.
• Firefighting and Emergency Response: Locating heat sources and potential hotspots during rescue operations.
• Robotics and Embedded Vision: Integrating thermal imaging into autonomous platforms and compact vision systems.
• Outdoor Observation: Thermal imaging for nighttime observation and situational awareness.
• OEM Camera Development: A compact thermal imaging core for customized cameras and specialized equipment.

FAQ

Q1: Is this thermal camera module cooled or uncooled?
A: It uses an uncooled VOx focal plane array detector, so it does not require a mechanical cooling system.

Q2: What is the maximum available image resolution?
A: The product family offers 640×512, 384×288, and 256×192 resolution options. Confirm that the selected SKU is the 640×512 version if you require the highest resolution.

Q3: What infrared wavelength range does it support?
A: The published spectral range is 8–14μm, within the long-wave infrared (LWIR) band.

Q4: Which video interfaces are available?
A: CVBS analog video and USB 2.0 are listed for supported configurations. Confirm the interface of the exact model before ordering.

Q5: Does the module support different thermal color palettes?
A: Yes. The module supports 18 palettes, including white hot, black hot, rainbow, iron red, amber, and fusion.

Q6: What lens options are available?
A: The published specifications list 9.1mm and 13mm lenses for applicable models. Lens availability and field of view depend on the selected resolution and configuration.

Q7: Can the module be integrated into a drone or embedded system?
A: Yes. Its compact size, low power consumption, and available video and serial interfaces make it suitable for compatible UAV, robotics, and embedded imaging designs. Verify mechanical mounting, power, and interface compatibility before integration.

Q8: Does the module measure absolute temperature?
A: The listed specifications describe thermal imaging performance, not a guaranteed radiometric temperature-measurement function. Contact us to confirm whether temperature measurement is supported by your selected configuration.

Q9: What power supply does it require?
A: The published module specifications list 4.5–20V DC. The expansion board's USB power input may use a different voltage range. Follow the exact model's pinout and power specifications.

Q10: Is technical documentation available?
A: Please contact us for the applicable user manual, interface details, pin definitions, and integration guidance for your selected configuration.

Package and Ordering Information

Product: Uncooled LWIR Thermal Camera Module
Recommended Configuration: 640×512 resolution, 12μm pixel pitch
Lens: Select the required compatible focal length
Interface: Confirm CVBS, USB 2.0, or the required supported configuration
Accessories: Expansion board availability should be confirmed when ordering

Please confirm the required resolution, lens, video interface, power supply, and connector configuration before placing your order.
