USB to SBUS Converter | SBUS to USB Adapter with Adjustable Baud Rate

Short Description

Bidirectional USB to SBUS / SBUS to USB converter for RC receivers, flight controllers, robotics, and industrial control systems. Supports USB 2.0 virtual COM port communication, standard SBUS, SBUS2, IBUS and WBUS, with optional adjustable baud rate, frame rate control, SBUS encoding/decoding, and checksum verification.

USB to SBUS Converter / SBUS to USB Adapter

The USB to SBUS Converter is a bidirectional interface module designed to connect SBUS-based devices with PCs, microcontrollers, UART equipment, wireless data links, and industrial control systems.

It supports both SBUS to USB and USB to SBUS communication. The USB interface operates as a standard USB 2.0 CDC Virtual COM Port, allowing an SBUS receiver or control device to communicate with a computer without requiring a dedicated SBUS interface.

Different firmware configurations are available for simple transparent communication, adjustable UART baud rates, frame rate control, SBUS encoding/decoding, and data integrity verification.

Key Features

• Bidirectional USB ↔ SBUS conversion

• SBUS to USB and USB to SBUS operation

• USB 2.0 CDC Virtual COM Port

• Supports standard SBUS and selected RC serial protocols

• Optional support for SBUS2, IBUS and WBUS

• Adjustable USB UART baud rate: 9600 / 38400 / 57600 / 115200

• Adjustable SBUS frame interval: 10–500 ms on supported versions

• Optional SBUS encoding and decoding

• 16-channel SBUS data processing

• Optional XOR checksum verification

• Direct USB Type-A plug version available

• USB cable extension version available

• Suitable for PC debugging, RC signal monitoring, robotics and industrial control

• Firmware customization and OEM/ODM support available

How It Works

SBUS to USB

Connect an SBUS receiver or other compatible SBUS source to the converter. The module converts the SBUS communication into USB serial data, allowing a PC or other USB host to receive the control data through a virtual COM port.

USB to SBUS

The converter can also work in the opposite direction, converting USB UART data into SBUS output for compatible control systems and embedded applications.

Optional SBUS Decoding

The codec version can decode SBUS frames internally and output channel information instead of requiring the host controller to process the SBUS protocol.

The decoded data can contain:

• 16 channel values

• Channel values from 0–2047

• Status flags

• XOR checksum

Technical Specifications

Configuration Options

Please select the required configuration before ordering.

1. Basic SBUS Transparent Version

• Standard 100 kbps SBUS communication

• Transparent SBUS data transmission

• Suitable for basic SBUS receiver communication and monitoring

2. Adjustable Baud Rate Version

Converts SBUS communication into standard UART communication.

Supported baud rates:

• 9600

• 38400

• 57600

• 115200

Suitable for PCs, microcontrollers, UART devices and serial communication systems.

3. Adjustable Baud Rate + SBUS Encoding

Includes adjustable UART baud rate and integrated SBUS encoding.

Suitable for applications where standard serial data needs to be converted into SBUS output.

4. Adjustable Baud Rate + Frame Rate Control

Includes:

• Adjustable UART baud rate

• Adjustable SBUS frame interval

• Frame interval from 10–500 ms

This version is useful for wireless serial links, USB extension systems and applications where communication traffic needs to be controlled.

5. Full Version

Includes all advanced functions:

• Adjustable baud rate

• Adjustable frame rate

• SBUS encoding

• SBUS decoding

• XOR checksum verification

Suitable for advanced RC, robotics, embedded control and industrial communication projects.

Available Hardware Versions

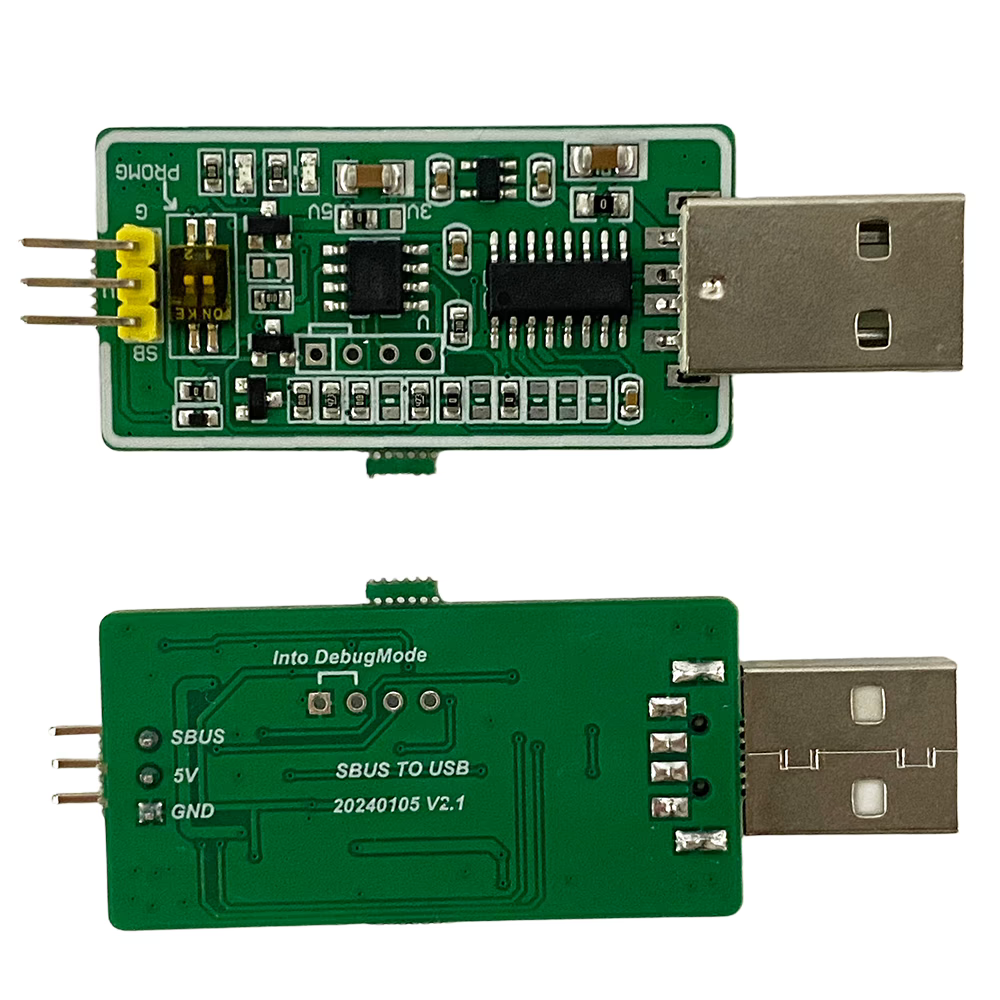

Direct USB Plug Version

• Built-in USB Type-A connector

• No external USB cable required

• Approx. 40 × 20 mm

• Convenient for direct connection to a PC

USB Cable Version

• External USB cable connection

• Approx. 55 × 32 mm

• Suitable for desktop testing, development and embedded installations

Applications

This USB SBUS adapter can be used for:

• RC receiver to PC connection

• SBUS signal monitoring

• Flight controller development

• RC system development and testing

• Robotics control

• Embedded controller development

• USB-to-UART communication

• Wireless UART / SBUS extension

• Industrial control systems

• Serial data conversion

• SBUS protocol testing and debugging

Frequently Asked Questions

Can this adapter convert both USB to SBUS and SBUS to USB?

Yes. The module supports bidirectional USB ↔ SBUS communication. The available functions depend on the selected configuration.

Can I connect an SBUS receiver directly to a computer?

Yes. The SBUS-to-USB version converts the SBUS signal into USB serial communication through a virtual COM port.

What baud rates are supported?

The adjustable baud rate versions support 9600, 38400, 57600 and 115200 baud.

Does it support SBUS2?

An upgraded version supports SBUS2. Please confirm the required protocol before ordering.

How many SBUS channels are supported?

Standard SBUS frames contain 16 channels. The codec version can decode these channels into individual channel values.

Is frame rate adjustable?

Yes, on the frame-rate-control and full versions. The configurable frame interval is approximately 10–500 ms.

Can the firmware be customized?

Yes. OEM/ODM firmware customization is available for volume projects and special communication requirements.

Factory OEM / ODM Support

We manufacture USB, UART and RC signal interface modules and can provide firmware customization for OEM projects.

Available support includes:

• Custom firmware

• SBUS protocol customization

• UART parameter customization

• Custom frame processing

• OEM hardware configuration

• Small-batch engineering samples

• Volume production

Please contact us with your required protocol, signal direction, baud rate and application requirements before ordering.
