UVC USB Camera to IP Ethernet Encoder Board H.265 H.264 1080P60 – DV2169

Overview

Convert a UVC USB camera into an IP network video source with H.265/H.264 encoding, RTSP and ONVIF support. Supports up to 1080P60 video and is available in 1-channel and 2-channel versions. Compact 38×38 mm design for embedded video streaming, industrial vision, robotics, inspection and custom OEM applications.

UVC USB Camera to IP Ethernet Encoder Board

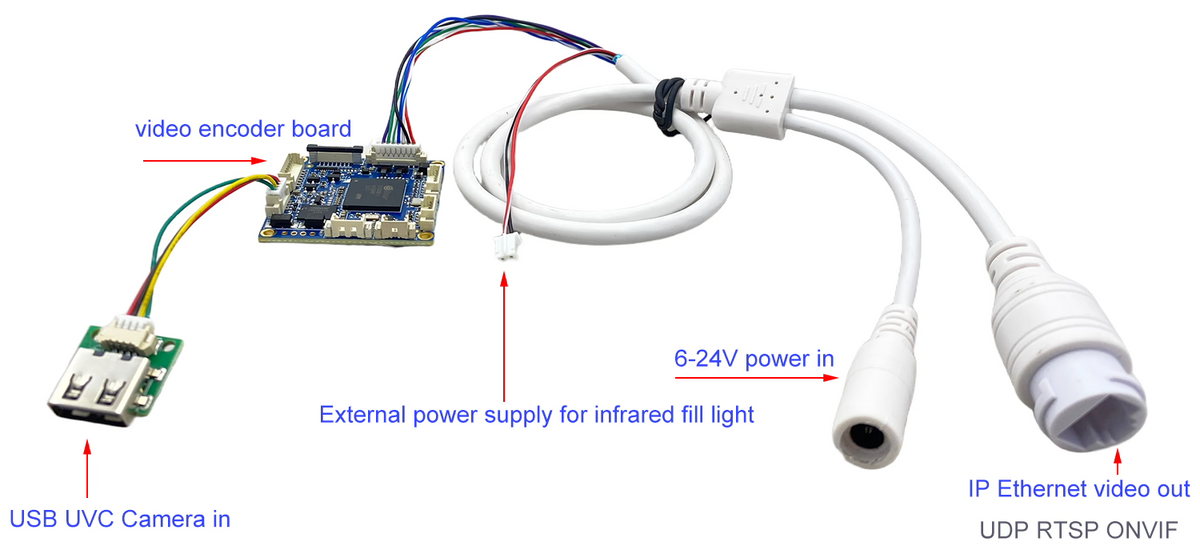

The DV2169 UVC USB Camera to IP Ethernet Encoder Board converts video from a standard UVC-compatible USB camera into an IP network video stream in real time.

It supports H.265 and H.264 video encoding, with resolutions up to 1920×1080 at 60fps. The encoded video can be transmitted over Ethernet using protocols such as RTSP and ONVIF, making the board suitable for connecting USB cameras to NVRs, PCs, network video systems and custom software platforms.

The encoder is available in 1-channel and 2-channel USB video versions. The dual-channel version can capture two UVC USB cameras and provide two independent network video streams through a single Ethernet interface.

With its compact 38 × 38 mm PCB design, flexible 6–12V DC or PoE power input, two TTL UART interfaces, optional audio functions and SDK support, the Vcan2169 is suitable for embedded video streaming and OEM integration.

Key Features

• USB UVC Camera to IP Ethernet

• H.265 / H.264 video encoding

• Up to 1920 × 1080 @ 60fps

• Adjustable video bitrate

• RTSP and ONVIF network streaming

• GB28181, RTMP, HTTP and other network protocols supported

• Available in 1-channel or 2-channel USB video versions

• Dual-channel version supports two independent USB camera streams

• 10/100M Ethernet interface

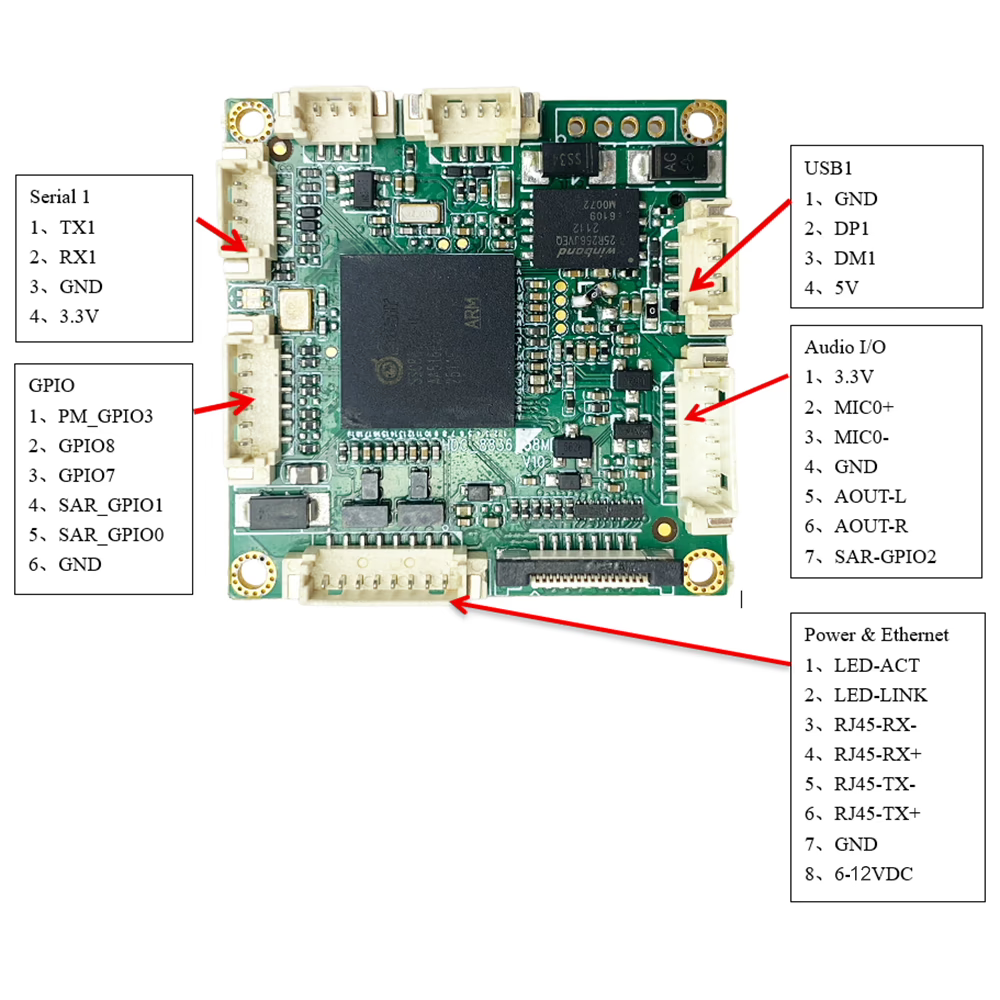

• DC 6–12V or PoE power input

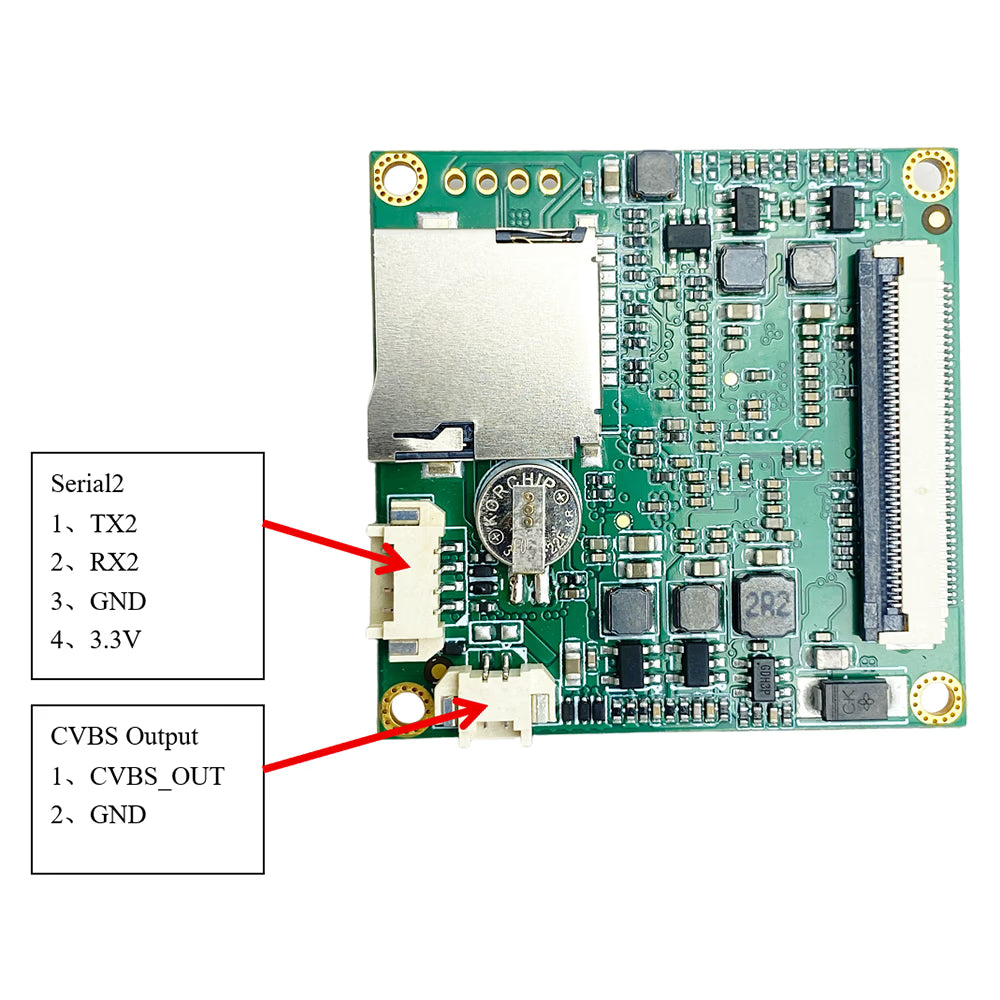

• 2 × TTL UART interfaces

• G.711 / AAC audio support

• Optional HDMI output through an expansion board

• 0.5 TOPS NPU for AI algorithm customization

• Compact 38 × 38 mm board

• Open SDK available for software integration

• Suitable for OEM and custom embedded applications

Video Encoding

The Vcan2169 supports both H.265 and H.264 video compression.

The main stream supports:

• 1920 × 1080

• 1280 × 720

• Up to 60fps

Sub-stream resolutions include:

• D1

• VGA

• 640 × 360

The video bitrate is adjustable according to the application and network bandwidth requirements.

USB Camera Compatibility

The encoder is designed for standard UVC-compatible USB cameras.

Compatible camera types may include:

• USB visible-light cameras

• USB thermal cameras

• USB inspection cameras

• USB microscope cameras

• USB webcams

• Other standard UVC video devices

Important: The current version does not support USB 3.0 camera input. Please confirm camera compatibility with us before ordering if you are using a specialized USB camera.

Network Streaming

The encoded USB camera video can be transmitted through the Ethernet port as an IP video stream.

Supported protocols include:

• RTSP

• ONVIF

• GB28181

• RTMP

• HTTP

• TCP/IP

• DHCP

• NTP

This allows the encoder to integrate with PCs, NVRs, network video software and custom video platforms.

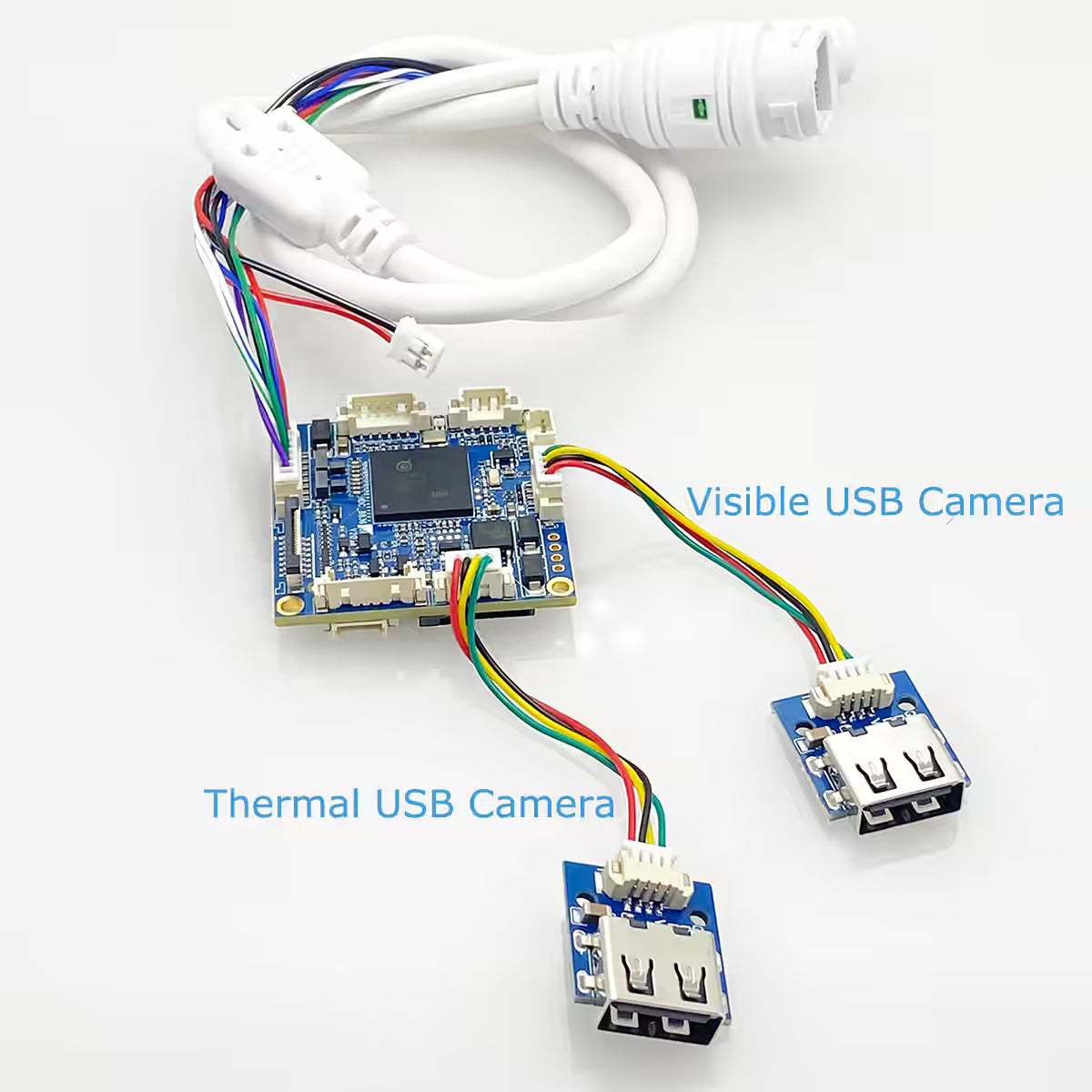

Dual USB Camera Version

The dual-channel version supports two UVC USB cameras simultaneously.

Each camera can provide an independent network video stream through the same Ethernet interface.

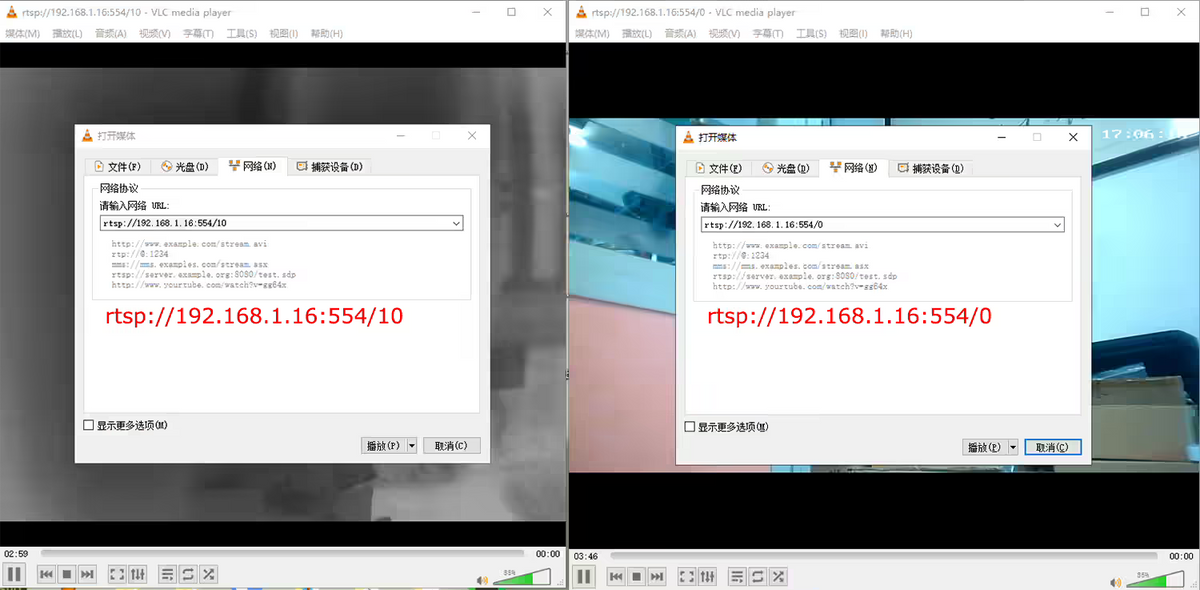

Typical RTSP addresses are:

Camera 1

rtsp://192.168.1.188:554/0

Camera 2

rtsp://192.168.1.188:554/10

The actual IP address can be changed according to your network configuration.

Compact Embedded Design

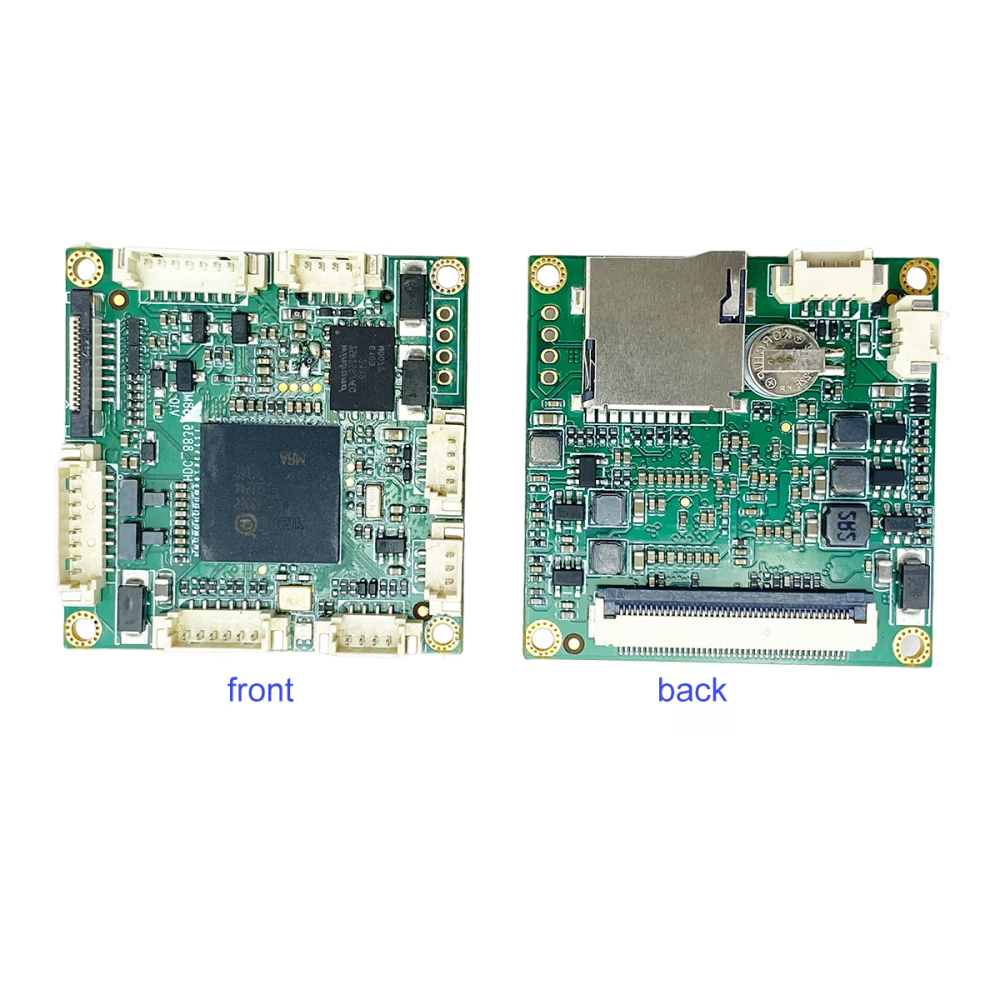

The PCB measures only 38 × 38 mm, making it suitable for space-limited embedded applications.

The board can be integrated into:

• Industrial cameras

• Machine vision systems

• Robotic systems

• Inspection equipment

• Network cameras

• Embedded video devices

• Remote monitoring systems

• OEM products

AI and Software Integration

The encoder uses the SSC8836Q-H processor with a 0.5 TOPS NPU, providing a platform for AI algorithm customization.

An open player SDK is also available for customers who need to integrate the video stream into their own PC, mobile or embedded software.

For OEM projects, we can evaluate customized hardware, firmware and software requirements.

Technical Specifications

Typical Applications

• USB camera to IP camera conversion

• Industrial machine vision

• Robotic vision systems

• Remote inspection

• USB thermal camera streaming

• Network video monitoring

• Microscopy and electronic magnification

• Embedded camera products

• NVR and ONVIF integration

• AI vision systems

• OEM video streaming equipment

Default Network Settings

The default IP address is:

192.168.1.188

Default web interface login:

Username: admin
Password: admin

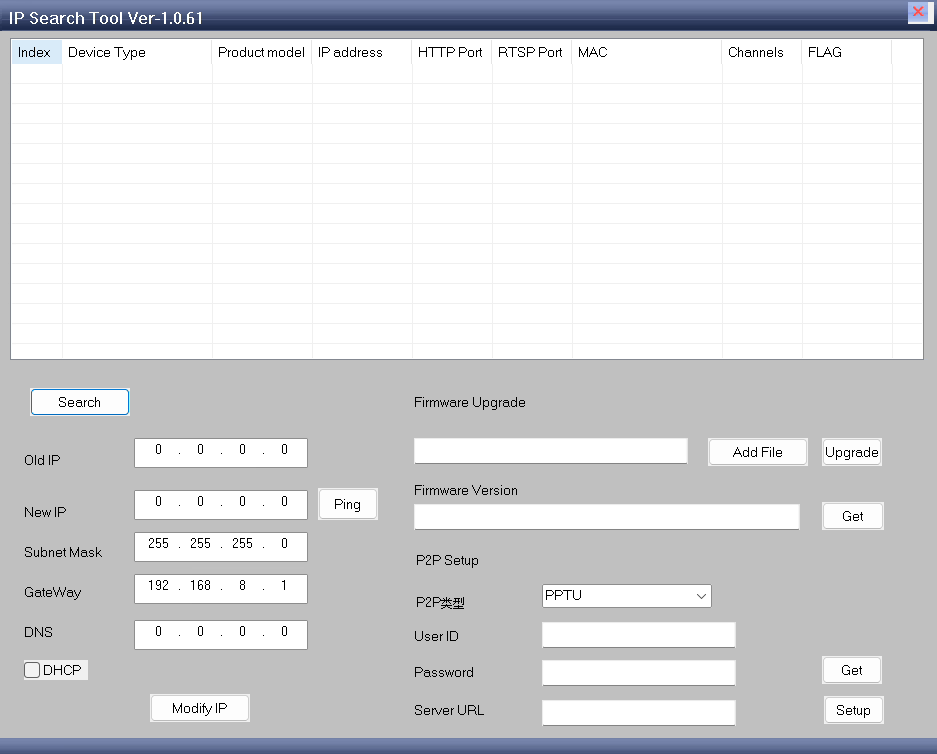

The IP address can be changed through the web configuration interface.

OEM / Custom Development

We support OEM and project-based customization for customers integrating the encoder into their own equipment.

Customization may include:

• Firmware customization

• Video stream configuration

• OSD customization

• AI algorithm integration

• Interface configuration

• Mechanical integration

• Customized cable assemblies

• Software / SDK integration

Please contact us with your USB camera model, required resolution, frame rate, video protocol and application requirements before placing a bulk order.

Note: USB camera compatibility depends on the camera's UVC implementation and video format. For special-purpose or thermal cameras, compatibility should be confirmed before ordering.
