Wideband Analog FPV Video Receiver 500MHz–10GHz – VRX2300
Overview
The VRX2300 Wideband Analog FPV Video Receiver is designed for multi-band analog video reception in FPV systems, UAV applications, wireless video projects, and embedded receiver equipment. With a specified receiving frequency range of 500MHz to 10GHz, it provides flexible frequency selection for compatible analog FM video signals.
Featuring 9 preset frequency tables with 424 preset frequency entries, the VRX2300 also supports a user-defined frequency table containing 8–80 custom frequencies. Its front-panel controls, two-digit LED display, SMA antenna connector, CVBS video output, and USB Type-C serial interface make it suitable for both standalone operation and customized integration projects.
Key Features
1. Wideband Frequency Coverage
Supports a specified receiving frequency range of 500MHz–10GHz for compatible analog video reception across multiple RF bands.
2. Nine Preset Frequency Tables
Includes 9 factory-configured frequency tables with 424 preset frequency entries for convenient band and channel selection.
3. Custom Frequency Configuration
Supports one user-defined frequency table containing 8–80 frequencies, allowing users to configure channel lists for specific projects.
4. USB Type-C Serial Control
Connect to a computer through the USB Type-C data interface for frequency configuration, channel management, status queries, and custom table operations.

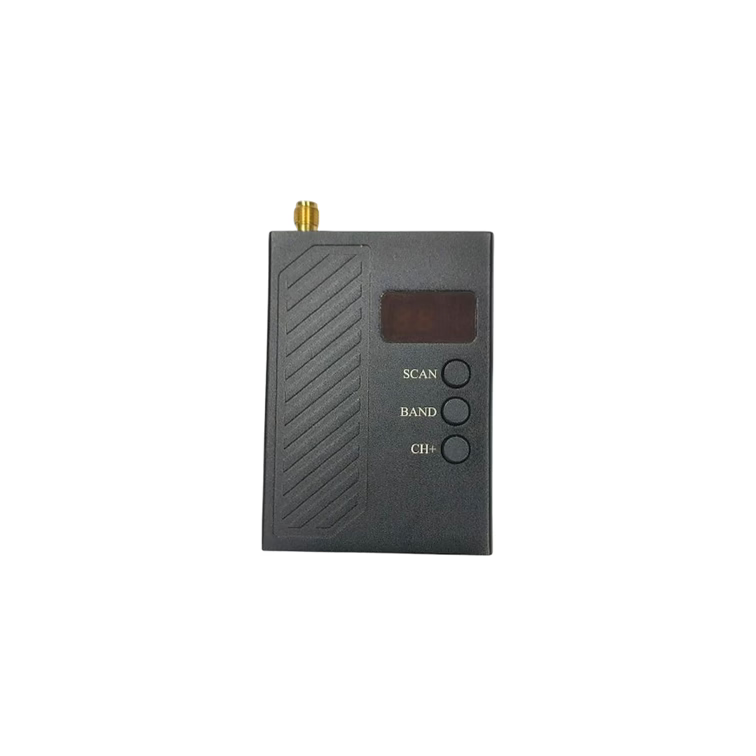

5. Easy Front-Panel Operation
Three physical buttons—SCAN, BAND, and CH+—provide straightforward frequency table and channel selection. A two-digit LED display indicates the current selection.
6. Analog CVBS Video Output
Provides composite video output compatible with PAL and NTSC systems for connection to compatible analog monitors, DVRs, or video processing equipment.
7. Flexible System Integration
Suitable for custom analog FPV receiver systems, embedded video equipment, RF development projects, and OEM/ODM applications.
Technical Specifications
Model: VRX2300
Product Type: Wideband Analog FPV Video Receiver
Receiving Frequency Range: 500MHz–10GHz
Modulation: FM
Frequency Control: PLL
Preset Frequency Tables: 9
Total Preset Frequency Entries: 424
Custom Frequency Tables: 1
Custom Table Capacity: 8–80 frequencies
Input Voltage: DC 7–28V (2S–7S battery systems)
Current Consumption: 330 ± 20mA at 12V DC
Auxiliary Power Output: 5V ± 0.5V, maximum 500mA when input voltage exceeds 7.2V
Receiver Sensitivity: -96dBm ± 2dB
Frequency Stability: ±100kHz typical
Frequency Accuracy: ±200kHz typical
Signal-to-Noise Ratio: Greater than 70dBc under specified test conditions
Antenna Connector: SMA, 50Ω
Video Standard: PAL / NTSC
Video Output: CVBS, 1V ± 0.2Vp-p at 75Ω
Display: Two-digit LED
Front-Panel Controls: SCAN / BAND / CH+
Data Interface: USB Type-C virtual serial port
Serial Settings: 115200 baud, 8N1, no flow control
Operating Temperature: -10°C to +60°C
Preset Frequency Bands
The factory-configured frequency tables cover the following nominal bands:
• 1.2GHz
• 2.8GHz
• 2.92GHz
• 3.3GHz
• 4.0GHz
• 4.2GHz
• 5.8GHz
• 7.2GHz
• 8.8GHz
A separate user-defined table supports 8–80 custom frequency entries. Actual reception depends on the selected frequency, transmitter compatibility, antenna, and RF environment.
Typical Applications
• Analog FPV video reception
• UAV and drone video monitoring systems
• Multi-band analog wireless video projects
• Custom-frequency video receiver development
• Embedded analog video reception equipment
• RF and wireless video engineering
• OEM/ODM receiver integration
• Specialized analog video monitoring systems
Frequently Asked Questions
Q1: What frequency range does the VRX2300 support?
A: The specified receiving frequency range is 500MHz–10GHz. Confirm the required operating frequency and reception performance for your intended application before ordering.
Q2: How many preset frequency channels are available?
A: The receiver provides 9 preset frequency tables containing 424 preset frequency entries.
Q3: Can I configure custom frequencies?
A: Yes. One user-defined frequency table can store 8–80 frequency entries through the USB Type-C serial interface.
Q4: Does the receiver support HDMI or IP video output?
A: No. The VRX2300 provides analog CVBS video output compatible with PAL/NTSC systems. Additional conversion equipment is required for HDMI or Ethernet/IP output.
Q5: Can I configure the receiver using a computer?
A: Yes. Connect the receiver to a computer using a USB Type-C data cable. The default serial configuration is 115200 baud, 8N1, with no flow control.
Q6: What power supply is required?
A: The receiver accepts DC 7–28V. Typical current consumption is 330 ± 20mA at 12V DC.
Q7: Is an antenna included?
A: Please confirm the package contents before ordering. The receiver uses a 50Ω SMA antenna connector.
Q8: Is the VRX2300 compatible with every FPV transmitter?
A: Not necessarily. Compatibility depends on the transmitter's operating frequency, modulation, video format, and RF configuration. Please verify system compatibility before purchase.
Ordering Information
For pricing, bulk orders, OEM/ODM customization, or technical support, contact the DVCAN team with your target frequency, transmitter model, video format, antenna requirements, and intended application.
Note: The 500MHz–10GHz figure describes the specified receiving frequency range and does not guarantee uniform sensitivity or reception performance throughout the entire range. Please verify frequency-specific compatibility and local radio regulations before use.
