Ultra-Wideband FPV VRX Receiver 200-7500MHz with UART Programmable Frequency Control
Overview
The iVcan Ultra-Wideband FPV Receiver is a professional analog video receiver designed for UAV, drone FPV, RF development, and custom wireless video projects.
Unlike traditional FPV receivers limited to fixed frequency bands, this receiver supports an ultra-wide tuning range from 200MHz to 7500MHz, allowing users to operate on virtually any custom frequency within the supported range.
The built-in UART control interface enables direct frequency programming through simple serial commands, making it ideal for OEM integration, research projects, and advanced FPV applications.
Key Features
✔ Ultra-Wide Frequency Range: 200MHz – 7500MHz
✔ User Programmable Frequency via UART
✔ Supports Any Custom Frequency Point
✔ High Sensitivity: -96dBm
✔ PAL / NTSC Analog Video Compatible
✔ Real-Time Frequency Switching
✔ 7V–36V Wide Voltage Input

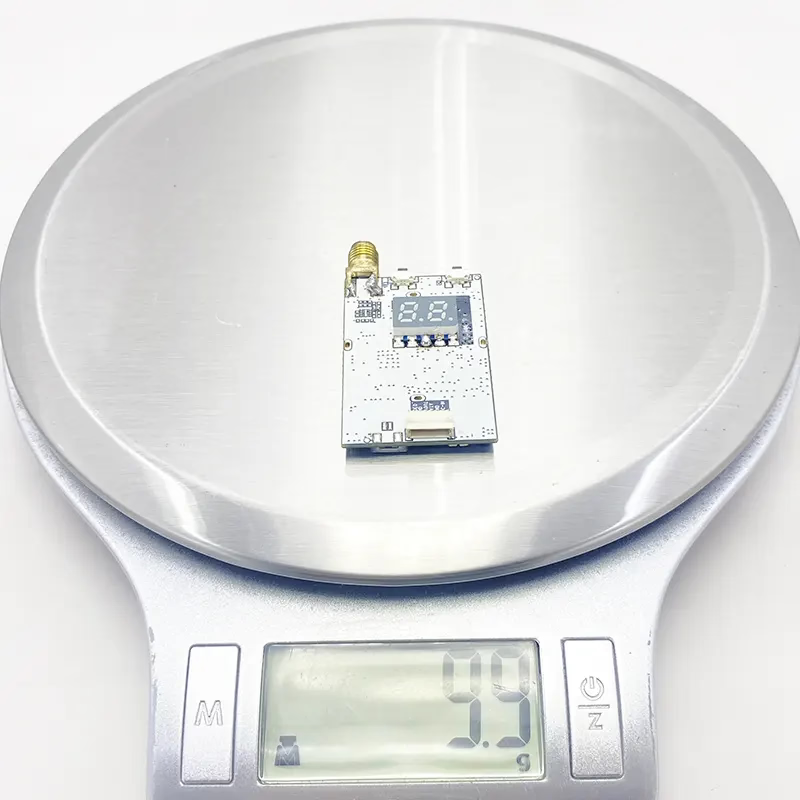

✔ Compact Lightweight Design (9.9g)
✔ Standard SMA Antenna Interface
✔ OEM / ODM Customization Available
Why Choose This FPV Receiver?
Most FPV receivers only support standard 1.2GHz, 2.4GHz, 5.8GHz, or 6GHz bands.
Our wideband VRX allows engineers and FPV developers to:
- Receive custom RF video frequencies
- Build proprietary wireless video systems
- Develop long-range UAV applications
- Test RF video transmission equipment
- Integrate frequency control into flight controllers and embedded systems
This flexibility makes it an ideal solution for professional and industrial applications.
Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 200MHz – 7500MHz |
| Sensitivity | -96dBm |
| Video Format | PAL / NTSC |
| Input Voltage | 7V – 36V DC |
| Control Interface | UART |
| Antenna Connector | SMA |
| Weight | 9.9g |
| Dimensions | 40.4 × 26.8 × 5mm |

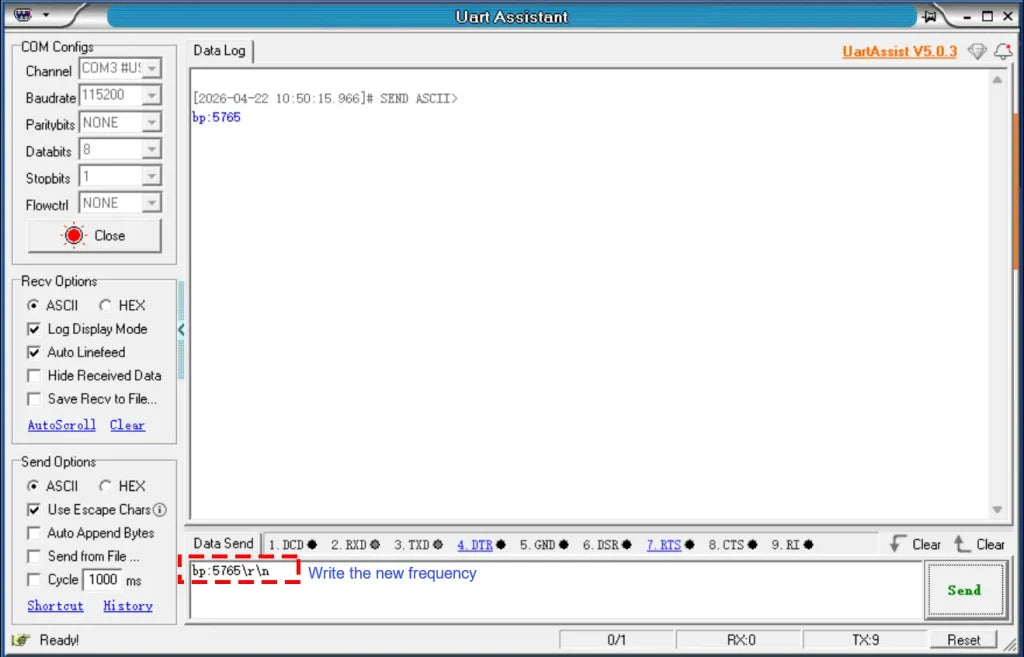

UART Frequency Control
The receiver supports frequency programming through a simple UART command:
bp:5765
Example:
Sending "bp:5765" immediately switches the receiver to 5765MHz.
UART Settings:
- Baud Rate: 115200
- Data Bits: 8
- Stop Bits: 1
- Parity: None
- Logic Level: 3.3V TTL
Applications
- FPV Drones
- Long Range UAV Systems
- Ground Stations
- RF Video Monitoring
- Wireless Video Research
- Signal Analysis
- Custom RF Projects
- OEM Video Transmission Systems

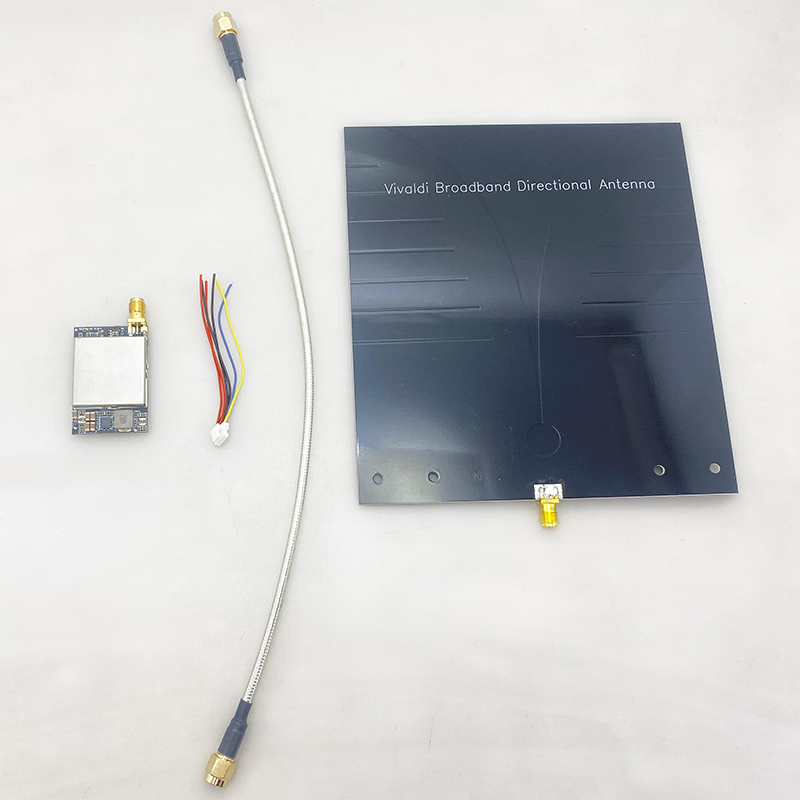

Package Includes
- 1 × Wideband FPV Receiver Module
- 1 × Connection Cable
- 1 × Antenna
OEM & Custom Development
We support custom projects including:
- Custom Frequency Bands
- SPI Frequency Control
- Firmware Development
- Private Label Branding
- Hardware Modifications
- OEM / ODM Manufacturing
Contact us for project requirements and bulk pricing.
