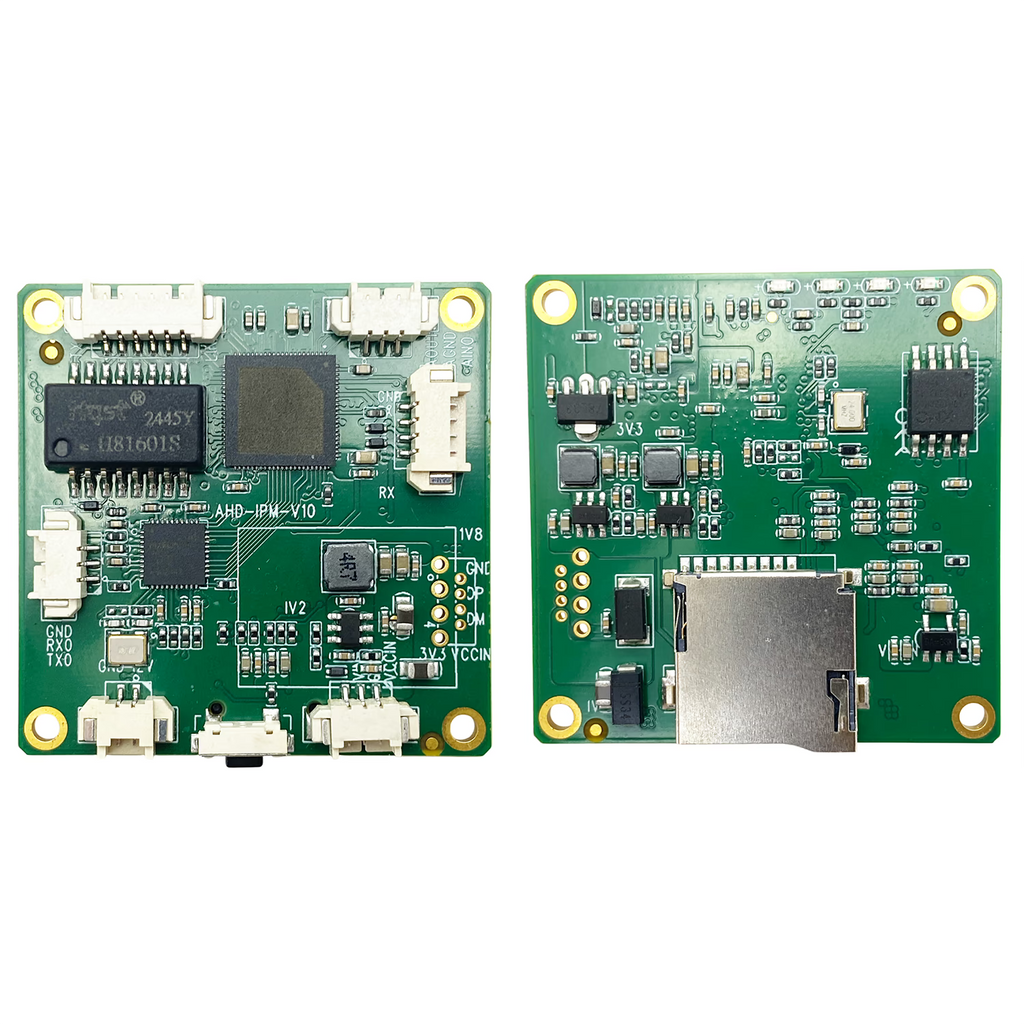

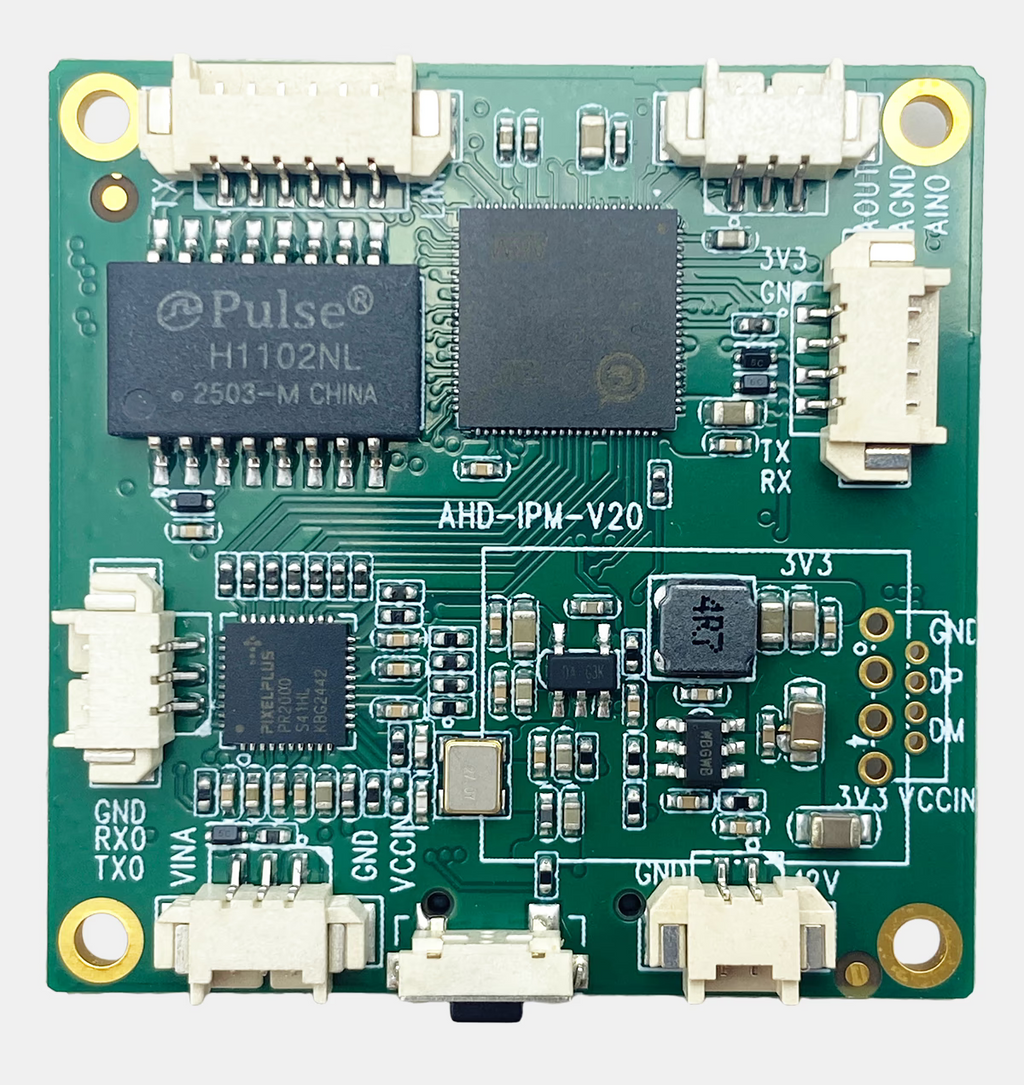

FPV Analog Composite CVBS AV video to IP Ethernet video stream converter board
$99.00 USD $299.00 USD
Video Output Method
Ask Help on WhatsApp

Analog CVBS AV Video to Ethernet IP Video Stream Converter Board

Upgrade Your Analog Cameras into Real-Time IP Video Streams with H.264/H.265 Encoding

Introduction

The Analog CVBS AV Video to Ethernet IP Video Stream Converter Board is a compact, lightweight, and powerful video encoder designed to bring traditional analog video systems into the digital IP era. Whether you’re upgrading legacy CCTV surveillance cameras, integrating FPV drone analog video into modern IP workflows, or streaming real-time video from industrial and IoT devices, this module delivers low-latency, high-efficiency, and high-quality IP video streaming over Ethernet networks.

Equipped with advanced H.264/H.265 encoding, support for ONVIF, RTSP, UDP, WebRTC, and GB28181 protocols, and a wide range of customizable hardware and functional options, this board provides unmatched flexibility for developers, system integrators, and professional users.

At just 9.5 grams and 38.8×38.8mm in size, it is engineered for embedded use in drones, vehicles, surveillance systems, and portable video devices where size, weight, and power efficiency matter most.

If you’re looking to transform analog composite video (CVBS, AHD, or TVI) into robust IP network streams for remote monitoring, recording, or broadcasting, this product is the ultimate solution for analog-to-IP video conversion.

Key Features

  • Real-time H.265/H.264 encoding for ultra-low bitrate and high-quality video streaming.

  • Multiple video input compatibility: CVBS, AHD, TVI (automatic format detection and switching).

  • Supports resolutions up to Full HD (1920×1080@30fps) with adjustable frame rate and bitrate (0.1–8 Mbps).

  • Compact design (38.8×38.8mm) and ultra-lightweight (9.5g) – perfect for drones and embedded systems.

  • Dual-stream output: Full HD main stream + lower resolution sub-stream.

  • Network protocol support: RTSP, RTMP, ONVIF, UDP multicast, TCP/IP, MQTT, WebRTC, GB28181.

  • Two-way audio intercom support with G.711/AAC encoding.

  • Remote monitoring via mobile phones, PCs, and NVRs.

  • Expandable connectivity: Wi-Fi, 4G LTE, GPS modules via USB.

  • Wide power supply range (DC 6–24V) + PoE support.

  • OSD overlays, motion detection, and snapshot support for surveillance applications.

  • Industrial-grade design: Works reliably from -20°C to +70°C with ESD and lightning protection.

Why Choose This Converter Board?

Analog video technologies like CVBS composite, AHD, and TVI are still widely used in surveillance cameras, FPV drones, medical imaging, and industrial monitoring. However, modern applications increasingly require IP streaming, remote access, and cloud integration.

Instead of replacing entire analog systems with new IP cameras, this board preserves your existing analog investment while enabling modern IP workflows.

✔️ Cost-effective upgrade path – keep your existing analog cameras, upgrade to IP streams.
✔️ Ultra-low latency – critical for FPV drones, live monitoring, and remote control.
✔️ Flexible protocols – integrates seamlessly with NVRs, VMS platforms, IoT devices, and custom software.
✔️ Lightweight, compact, and power-efficient – suitable for drones, vehicles, and portable devices.
✔️ Professional customization – available with OEM/ODM branding, enclosures, thermal solutions, and protocol extensions.

Specifications

Main Processor: SSC335
Video Input: AHD/CVBS/TVI (via PR2000K 3-in-1 video acquisition chip)
Video Encoding: H.264/H.265, adjustable bitrate 0.1–8 Mbps, frame rate 1–30fps
Output Resolutions:

  • Main stream: 1920×1080@30, 1280×720@30, 720×576@25

  • Sub-stream: D1, VGA, 640×360

Audio: G.711/AAC, two-way intercom, MIC input + LINE_OUT
Networking: 1×RJ45 (10/100M adaptive, surge and ESD protected), PoE support
Protocols: TCP/IP, RTSP, RTMP, ONVIF, UDP multicast, MQTT, GB28181, WebRTC
Expansion: 1×USB (Wi-Fi, 4G, GPS modules, optional UVC function)
Local Storage: TF card slot (up to 256GB)
Control Interface: 1 TTL serial port (IoT integration), 1 hardware reset button
Power: DC 6–24V wide input, PoE supported
Size: 38.8×38.8mm (customizable)
Weight: 9.5g
Operating Temp: -20°C ~ +70°C

Application Scenarios

1. CCTV & Security Systems

  • Convert legacy analog cameras into IP streams.

  • Integrate with NVRs, VMS platforms, or cloud surveillance services.

  • Add motion detection and OSD overlays for smarter monitoring.

2. Drone FPV & UAV Systems

  • Convert analog FPV camera signals into IP streams for ultra-low latency monitoring.

  • Ideal for long-range UAV missions, live broadcasting, and situational awareness.

  • Supports Wi-Fi or 4G streaming for remote control and monitoring.

3. Industrial & IoT Video Monitoring

  • Connect factory cameras, inspection devices, or industrial sensors to IP networks.

  • Use MQTT and serial port integration for IoT data + video fusion.

  • Monitor multi-site operations in real time.

4. Broadcasting & Live Streaming

  • Convert analog camcorders or mixers to IP streams for RTMP/RTSP live streaming.

  • Use UDP multicast for local network video distribution.

  • Lightweight module fits into portable streaming devices.

5. Transportation & Vehicle Systems

  • Deploy in buses, trains, or fleets for real-time vehicle monitoring.

  • Compact design suits in-vehicle DVRs and 4G live streaming devices.

  • Integrates GPS for live location + video tracking.

6. Education, Healthcare & Public Use

  • Stream classroom lessons or training sessions to remote learners.

  • Send medical video (endoscopes, ultrasound, analog diagnostic devices) to IP networks.

  • Integrate retail surveillance, POS video, or smart home cameras.

Customizable Options

  1. Video Input/Output

    • Input: CVBS, AHD, TVI, HDMI, HD-SDI (single/dual/multi-channel).

    • Output: RJ45 Ethernet, optional PoE, dual-stream support.

  2. Network & Protocols

    • RTSP, RTMP, UDP multicast, ONVIF, GB28181, MQTT, WebRTC.

    • Custom bitrate/frame rate for bandwidth optimization.

  3. Hardware & Form Factor

    • Board size and connector placement customizable.

    • Options for SMA/MCX RF connectors, USB ports, or HDMI.

  4. Functional Features

    • OSD overlays (timestamp, watermark, camera ID).

    • Motion/human/sound detection.

    • AES encryption, password protection, firmware upgrades.

  5. Packaging & Environmental

    • Metal housing, waterproof enclosures (IP65/IP67).

    • Vibration-resistant designs for vehicles and drones.

    • OEM/ODM branding with custom labeling.

Connectivity & Setup

  • Default IP: 192.168.1.188 (use the included IP Search Tool if forgotten).

  • Video Switching: Power cycle required when changing between CVBS/AHD/TVI inputs.

  • Streaming Playback: Use VLC or other RTSP/UDP clients.

  • UDP Multicast: Configure via web UI, then set VLC to open the multicast address.

  • Mobile Remote Monitoring: Supports Android/iOS apps via RTSP, P2P, or WebRTC.

Expanded Functionality

  • 4G LTE + Wi-Fi Expansion Module: Add wireless streaming and GPS support.

  • Dual Ethernet Port Option: Enable simultaneous LAN + WAN streaming.

  • Cloud Streaming: Send RTMP/WebRTC feeds to YouTube, cloud servers, or NVRs.

  • SDK for Developers: Client SDK provided for secondary development and integration.

Frequently Asked Questions (FAQ)

Q: Can it support both CVBS and AHD at the same time?
A: No, only one input type at a time. A power cycle is required when switching.

Q: Does it support ONVIF for NVR integration?
A: Yes, fully ONVIF-compliant for IP surveillance.

Q: Can I record locally?
A: Yes, via TF card up to 256GB.

Q: What if my analog video quality is poor (e.g., FPV receiver)?
A: The board works best with stable analog signals. For unstable input, higher-end models (e.g., model 1746) may perform better.

Q: Is encryption supported?
A: Yes, at the protocol level (RTSP over HTTPS, WebRTC encryption).

Q: Can I add Wi-Fi or 4G modules?
A: Yes, via USB expansion.

Q: Is there an Android/iOS app?
A: Yes, an Android app is available; iOS support via RTSP/ONVIF players.

Who Should Use This Product?

  • Drone FPV developers needing low-latency IP video.

  • CCTV installers upgrading legacy analog systems.

  • IoT engineers integrating video + sensor data.

  • System integrators requiring compact IP encoder modules.

  • Researchers & hobbyists experimenting with analog-to-IP conversion.

Conclusion

The Analog CVBS AV Video to Ethernet IP Video Stream Converter Board is a future-proof, lightweight, and versatile solution for transforming analog video signals into modern IP video streams. With H.265 compression, multiple protocol support, expandability, and customization options, it is the ideal encoder module for drones, vehicles, surveillance systems, industrial IoT, and professional broadcasting.

Whether you need to stream FPV drone video wirelessly, upgrade CCTV cameras, integrate industrial monitoring, or deploy mobile live streaming, this module delivers reliability, flexibility, and next-generation performance in one compact package.
