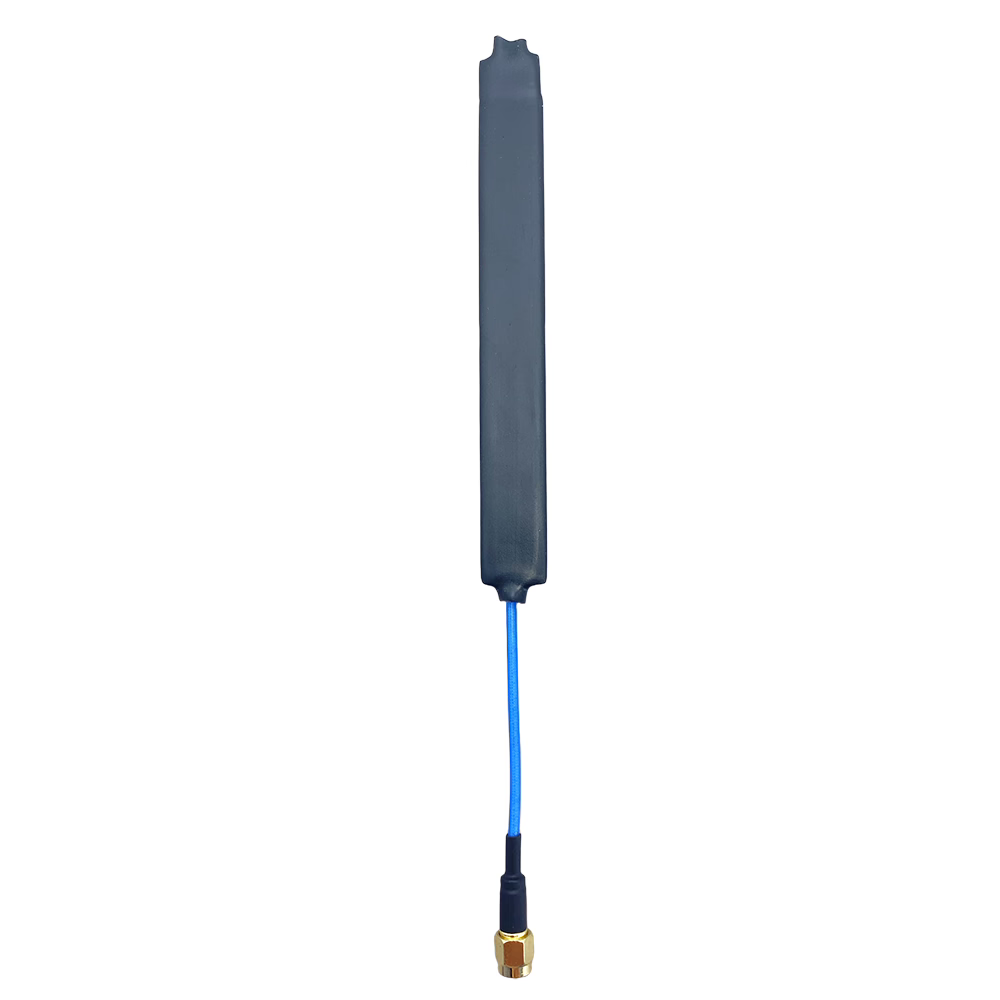

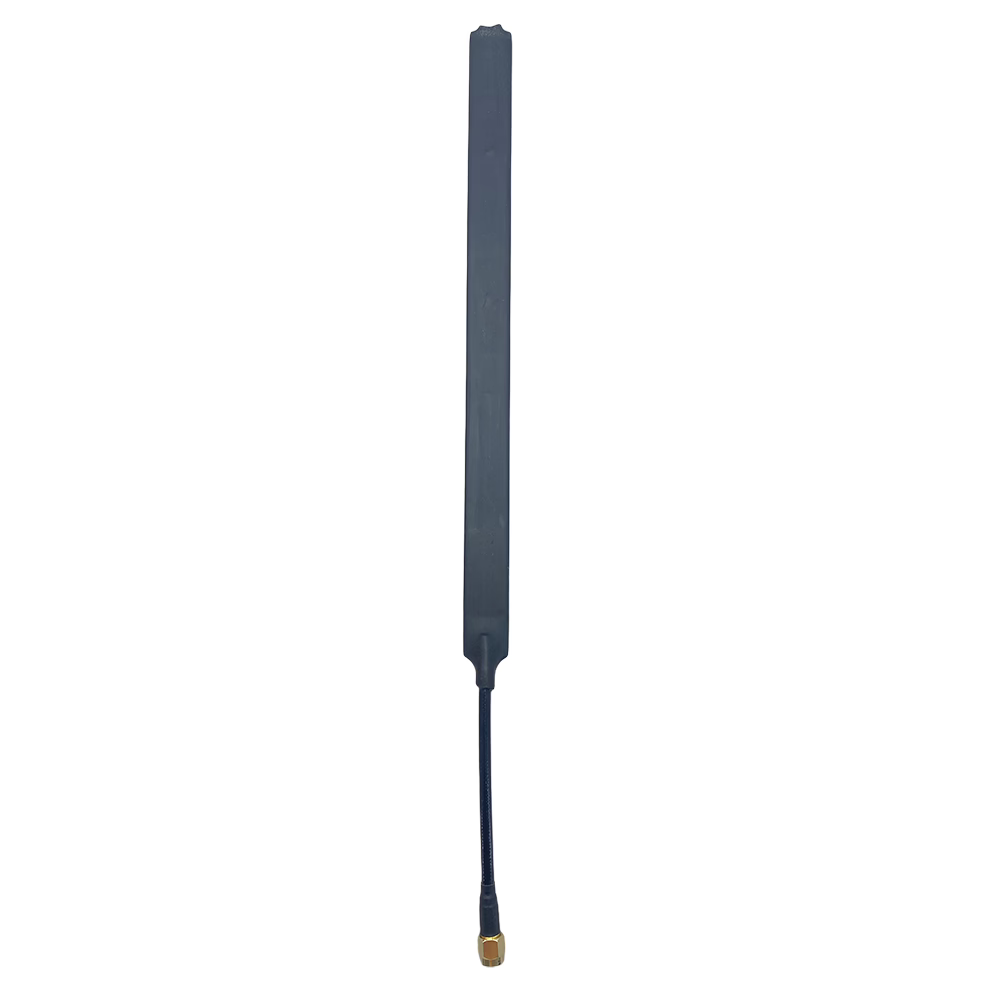

Ultra-Light Flexible Omni Antenna – Gooseneck Core for UAV
OVERVIEW
The Ultra-Light Flexible Omni Antenna is designed for UAVs, drones, and lightweight wireless communication systems where minimizing weight without compromising RF performance is essential.
Featuring a flexible gooseneck-style radiating element without the traditional metal outer housing, this antenna reduces structural weight while providing 360-degree omnidirectional coverage. Its flexible construction helps accommodate vibration and movement in airborne applications.
Two frequency options are available: 915 MHz (902–928 MHz) and 1.4 GHz (1420–1530 MHz). Select the appropriate frequency band for your communication or video transmission system.
KEY FEATURES
• Ultra-Lightweight Design: Reduces antenna mass for weight-sensitive airborne platforms.
• Flexible Gooseneck-Core Construction: Provides flexibility for demanding installation environments.
• 360° Omnidirectional Coverage: Supports communication in all horizontal directions.
• Low VSWR: VSWR of 1.5 or lower for effective RF system integration.
• Multiple Frequency Options: Choose between 915 MHz and 1.4 GHz versions.
• Flexible Connector Options: SMA, RP-SMA, or a customized connector, subject to configuration.
• Customization Available: Cable length and polarization options can be discussed for specific projects.
TECHNICAL SPECIFICATIONS
Product Type: Flexible omnidirectional antenna, core-only design
Frequency Options:
• 915 MHz version: 902–928 MHz
• 1.4 GHz version: 1420–1530 MHz
Antenna Gain: 4–5 dBi
Polarization: Linear, standard
Radiation Pattern: Omnidirectional, 360° horizontal coverage
VSWR: ≤ 1.5
Impedance: 50 ohms
Connector: SMA, RP-SMA, or customized option
Weight: Approximately 16 g for the referenced lightweight configuration; final weight depends on cable and connector configuration
Construction: Flexible radiating element without a metal outer gooseneck shell
Customization: Connector, cable length, and polarization options subject to confirmation
APPLICATIONS
• UAV and drone telemetry systems
• Long-range drone communication links
• FPV and wireless video transmission systems
• 915 MHz ISM-band and LoRa applications
• 1.4 GHz wireless video links
• Ground control stations
• Industrial wireless communication
• Robotics and autonomous platforms
• Lightweight airborne communication equipment
FREQUENCY SELECTION GUIDE
915 MHz Version (902–928 MHz)
Suitable for compatible 915 MHz ISM-band communication, telemetry, and LoRa systems.
1.4 GHz Version (1420–1530 MHz)
Suitable for compatible 1.4 GHz wireless video transmission and specialized communication systems.
Please confirm that the selected frequency band matches your radio equipment and local spectrum regulations before ordering.
FAQ:
Q1: What is the difference between this antenna and a traditional gooseneck antenna?
A: This model removes the traditional metal outer gooseneck housing and uses a lightweight flexible radiating element to reduce weight and structural load.
Q2: Which frequency bands are available?
A: Two options are available: 902–928 MHz and 1420–1530 MHz. Select your required frequency version when ordering.
Q3: Is this antenna suitable for UAV applications?
A: Yes. Its lightweight, flexible construction and omnidirectional radiation pattern make it suitable for compatible UAV telemetry and communication systems.
Q4: Can the connector and cable length be customized?
A: SMA, RP-SMA, and customized connector options are available subject to confirmation. Cable length can also be discussed for your project.
Q5: Can the polarization be customized?
A: Linear polarization is standard. Circular polarization options, including RHCP or LHCP, may be available on request. Please confirm availability before ordering.
Q6: Can the antenna be made shorter or lighter?
A: Custom dimensions may be evaluated. However, reducing the radiating element length can affect antenna gain and communication performance.
Q7: Will this antenna work with any 915 MHz or 1.4 GHz radio?
A: Not necessarily. Frequency compatibility, connector type, polarization, impedance, and the radio's RF specifications should all be checked before purchase.
